Low Voltage Cables

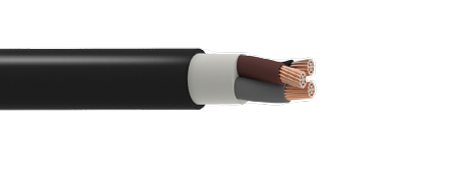

U-1000 R2V/XV/RV CE cable

Conductor 1.5mm2 to 4mm2: Class 1 solid copper conductor* 6mm2 and above: Class 2 stranded copper conductor *Class 2 stranded conductor available for these sizes on request
Insulation XLPE (Cross-Linked Polyethylene)
Bedding PVC (Polyvinyl Chloride)
Sheath PVC (Polyvinyl Chloride)
Product description: These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. Th
INQUIRY EMAIL

Applications:

These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

Standards:

NF C 32-321, IEC 60502-1, NF C 32-070 C2

Flame Retardant according to IEC 60332-1-2

Technical data:

Voltage Rating Uo/U 0.6/1kV

Temperature Rating

During installation -10°C to +50ºC

Fixed installation: -25°C to +90°C

Minimum Bending Radius

6 x overall diameter
