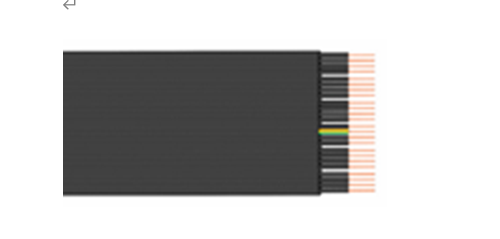

H07VVH6-F 450/750V EAC Certified Cable

Applications:

These cables are suitable for residential buildings, kitchens, lighting for halls, or portable lighting fixtures. Thanks to their special insulation and sheathing compounds, they are adapted for areas with elevated temperatures, such as kitchens and heating environments (like lighting systems), provided they do not come into direct contact with heated parts or radiant sources. This product is not suitable for outdoor use, for application in industrial or agricultural buildings, or with non-household portable tools. The maximum conductor temperature during normal use is 70°C. When operating at high temperatures, skin contact with the cable must be avoided.

Standards:

International: EN 50124, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Technical Data:

Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70 ℃)

Min. Ambient Temp.  0℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 8 x cable O.D.

Test voltage: 2.5kV/5min.
