Medium Voltage Power Cables

Name: Medium Voltage Power Cables
Brand: SH-Cables
SKU: FAMILY-02

Medium voltage distribution cables for utilities, industrial feeders and infrastructure projects.

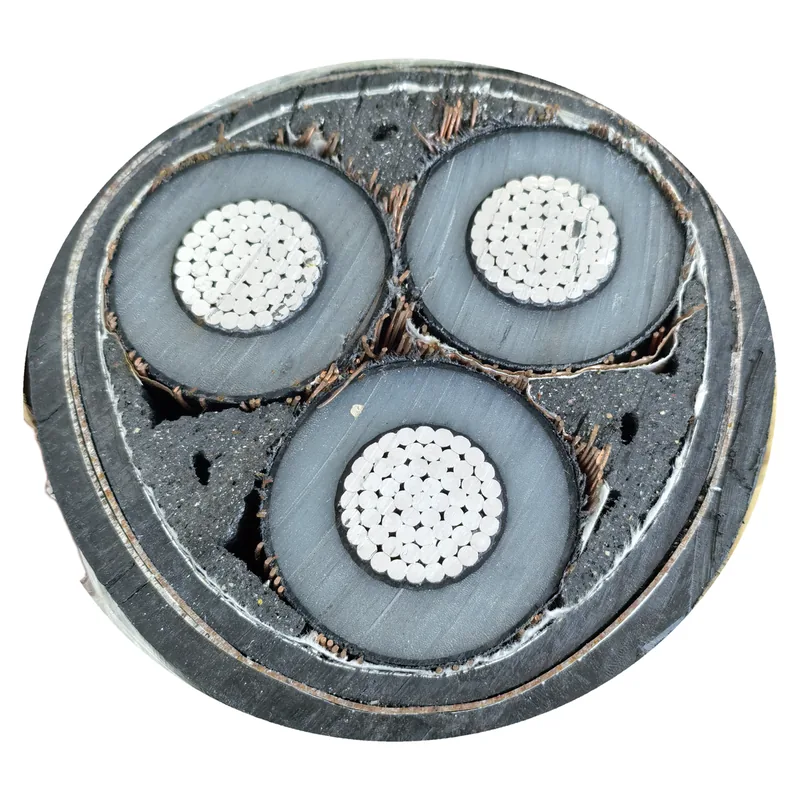

Cut end of a three-core cable — three round cores with silver-coloured stranded conductors under a dark layer and a light grey layer, copper strands in the fillers between them, and a black oversheath — Medium voltage cable, cut to show the finished section. Conductor, screens, armour and sheath are built to the system voltage and the installation — send us the application and we will confirm the build.

Family at a glance

Family code: 02
Rated voltage: 3.6/6 kV to 26/35 kV
Constructions published: 21
Sizes covered: 25–1200 mm²
Certificates: 2 listed on this page

Scope

Voltage range: 3.6/6 kV to 26/35 kV

This family covers medium voltage distribution: utility feeders and substation connections, industrial incomers, renewable collection networks, and mining or petrochemical distribution above 1 kV. Work at 66 kV and above is handled separately, because it is engineered for the project rather than selected from a table.

Seven voltage classes are documented — 3.6/6, 6/10, 8.7/15, 12/20, 18/30, 21/35 and 26/35 kV — each available unarmoured, single-core armoured or three-core armoured, twenty-one constructions in total.

Insulation thickness, screen construction and armour are set by the voltage class, so quoting starts from the system voltage rather than from the cross-section.

Key characteristics

Twenty-one constructions covering all seven voltage classes, each published with full dimensional and electrical data.
Single-core and three-core designs; cross-sections from 25 mm² to 1200 mm².
Every construction carries semi-conducting conductor and insulation screens with a copper tape metallic screen over them — coded CTS in the construction string. The screen is what you earth, and its fault-current duty is part of the specification.
Armour follows the core count: aluminium wire or stainless steel tape for single-core, galvanized steel wire or galvanized steel tape for three-core.
FR-PVC sheathing is available on the same constructions where the project calls for flame-retardant oversheaths.

Size range at a glance

Type designation	Construction	Rated voltage	Cores	Sizes covered	Sizes listed
`YJV 3.6/6 kV`	`CU/XLPE/CTS/PVC`	3.6/6 kV	1, 3	25–1000 mm²	26
`YJV 6/10 kV`	`CU/XLPE/CTS/PVC`	6/10 kV	1, 3	25–1000 mm²	26
`YJV 8.7/15 kV`	`CU/XLPE/CTS/PVC`	8.7/15 kV	1, 3	25–1000 mm²	26
`YJV 12/20 kV`	`CU/XLPE/CTS/PVC`	12/20 kV	1, 3	35–1200 mm²	25
`YJV 18/30 kV`	`CU/XLPE/CTS/PVC`	18/30 kV	1, 3	50–630 mm²	20
`YJV 21/35 kV`	`CU/XLPE/CTS/PVC`	21/35 kV	1, 3	50–1200 mm²	23
`YJV 26/35 kV`	`CU/XLPE/CTS/PVC`	26/35 kV	1, 3	50–1200 mm²	23
`YJV 3.6/6 kV`	`CU/XLPE/CTS/PVC/AWA/PVC`	3.6/6 kV	1, 3	25–500 mm²	22
`YJV 6/10 kV`	`CU/XLPE/CTS/PVC/AWA/PVC`	6/10 kV	1, 3	25–500 mm²	22
`YJV 8.7/15 kV`	`CU/XLPE/CTS/PVC/AWA/PVC`	8.7/15 kV	1, 3	25–500 mm²	22
`YJV 12/20 kV`	`CU/XLPE/CTS/PVC/AWA/PVC`	12/20 kV	1, 3	35–500 mm²	20
`YJV 18/30 kV`	`CU/XLPE/CTS/PVC/AWA/PVC`	18/30 kV	1, 3	50–500 mm²	18
`YJV 21/35 kV`	`CU/XLPE/CTS/PVC/AWA/PVC`	21/35 kV	1, 3	50–500 mm²	18
`YJV 26/35 kV`	`CU/XLPE/CTS/PVC/AWA/PVC`	26/35 kV	1, 3	50–500 mm²	18
`YJV 3.6/6 kV`	`CU/XLPE/CTS/PVC/STA/PVC`	3.6/6 kV	1, 3	25–500 mm²	23
`YJV 6/10 kV`	`CU/XLPE/CTS/PVC/STA/PVC`	6/10 kV	1, 3	25–500 mm²	23
`YJV 8.7/15 kV`	`CU/XLPE/CTS/PVC/STA/PVC`	8.7/15 kV	1, 3	25–500 mm²	23
`YJV 12/20 kV`	`CU/XLPE/CTS/PVC/STA/PVC`	12/20 kV	1, 3	35–500 mm²	21
`YJV 18/30 kV`	`CU/XLPE/CTS/PVC/STA/PVC`	18/30 kV	1, 3	50–500 mm²	19
`YJV 21/35 kV`	`CU/XLPE/CTS/PVC/STA/PVC`	21/35 kV	1, 3	50–500 mm²	19
`YJV 26/35 kV`	`CU/XLPE/CTS/PVC/STA/PVC`	26/35 kV	1, 3	50–500 mm²	19

Each size counted above carries its own dimensional and electrical figures in the tables further down this page. Intermediate sizes are manufactured to order.

Construction

Each entry is identified three ways: an international description, a construction code naming the material build-up, and a national type designation given for cross-reference only. Read the code string left to right — conductor, insulation, then screening, armour and sheath where fitted.

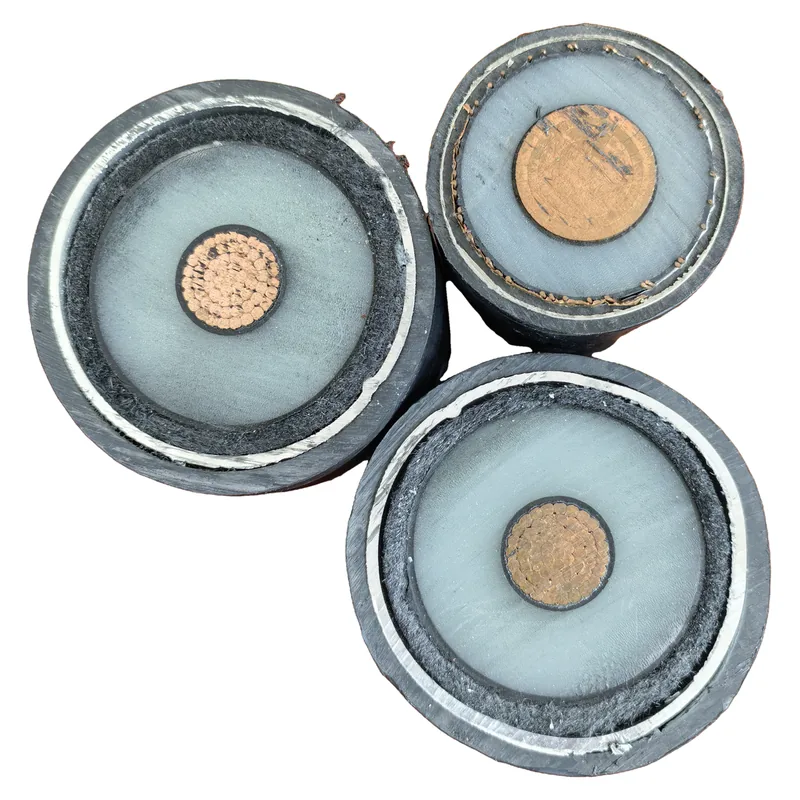

Cut ends of three single-core cables standing together — each with a stranded copper conductor, a dark layer, a thick light grey layer, a bright metallic tape and a black outer sheath — Single-core construction, cut to show the layer order: conductor, insulation, metallic screen and oversheath. Multi-core and armoured builds of this family follow the same order — send us the application and we will confirm the build.

Product photographs

Photographs of builds from this family — the screened core assembly and the sheath, on both three-core and single-core builds. Voltage class, core count, screening and armouring follow the specification of each order; the data sheet for your build is issued with the quotation.

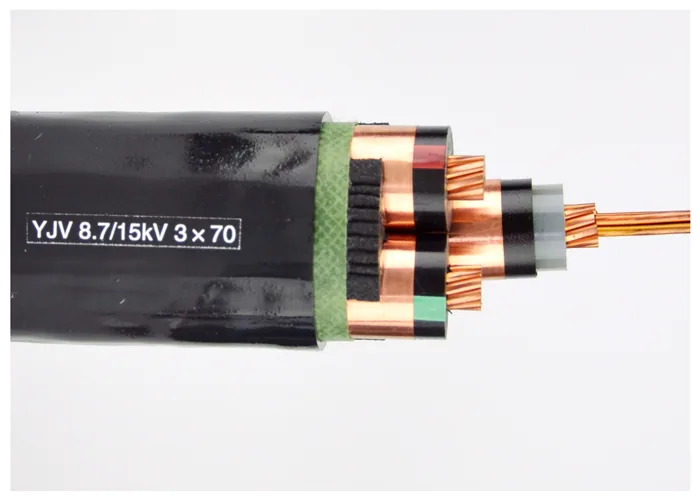

Three cores cut back from the printed black sheath, over green bedding tape.

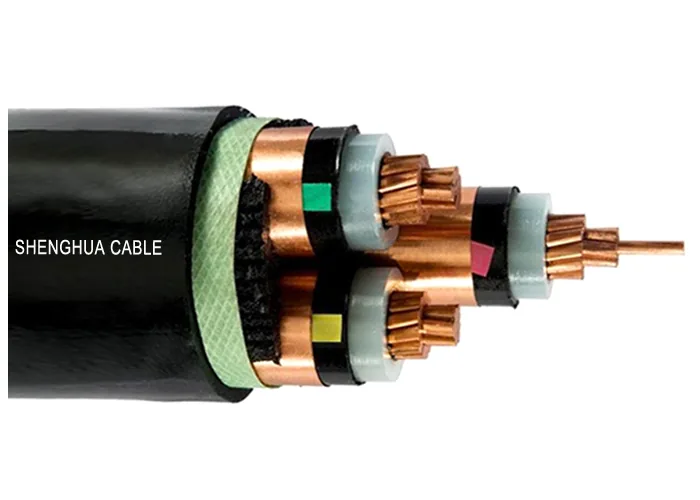

Sheath and bedding peeled back — copper tape over each core, identification bands on them.

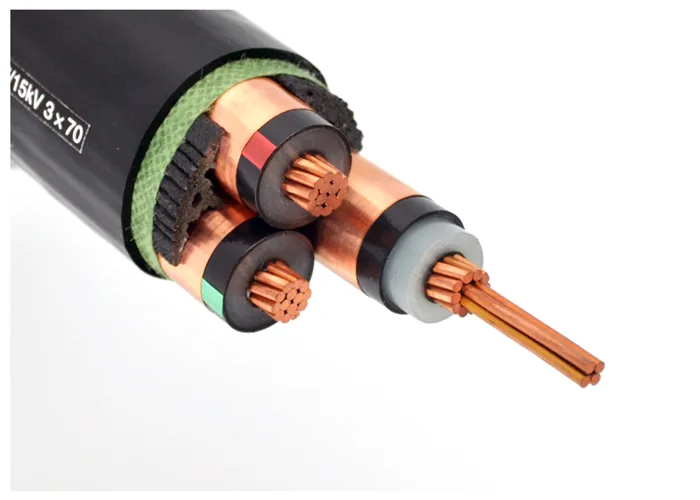

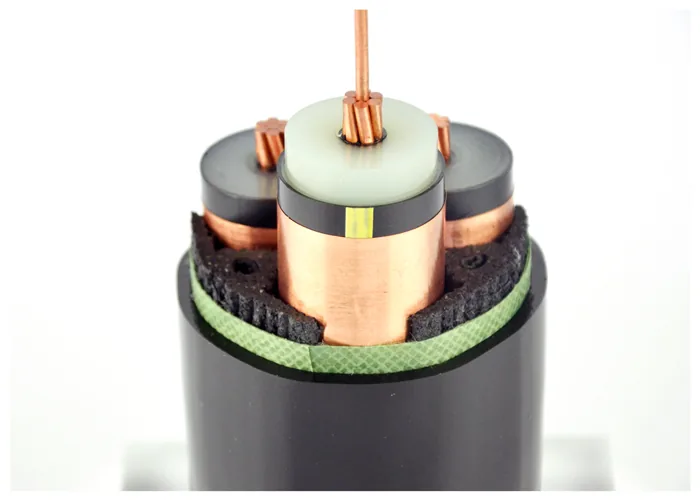

The three cores on end, each wrapped in copper tape over its insulation.
Cut away through the sheath, the copper tape screen and the cores underneath.

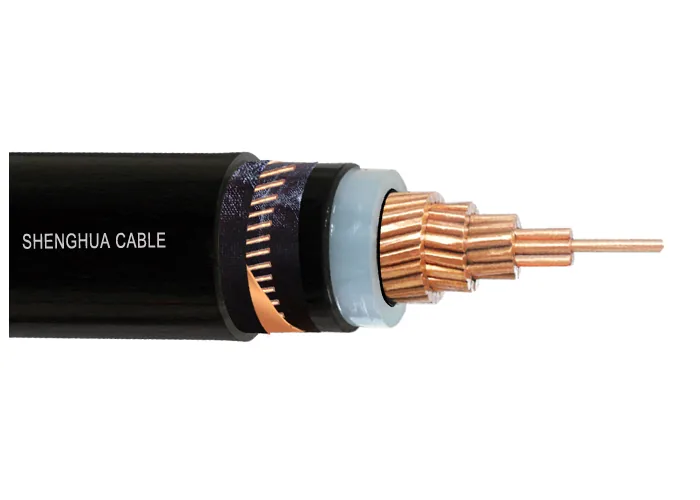

Single core, cut back to the copper tape screen over the light layer.

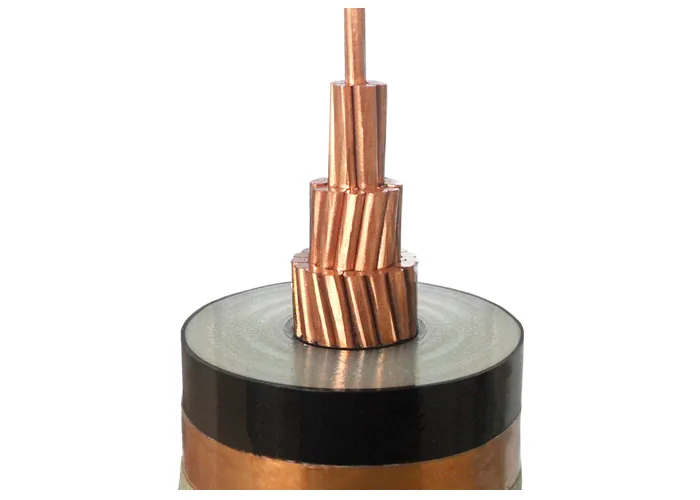

Single core seen end-on — conductor, the layers over it, and the sheath.

International description

Medium Voltage XLPE Insulated Unarmoured Power Cable — 3.6/6 kV

Unarmoured 3.6/6 kV

Construction: CU/XLPE/CTS/PVC also supplied as CU/XLPE/CTS/FR-PVC
Designation: YJV 3.6/6 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 3.6/6 kV
Russia / CIS ГОСТ 34834-2022: ПвЭВ

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Sheath: PVC or FR-PVC type ST to IEC 60502, black

Application For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single-core cables in magnetic ducts is not allowed.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 26 sizes × 9 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×25	2.5	1.5	18.0	619	0.7270	12.5	135	150
1×35	2.5	1.5	19.0	737	0.5240	12.5	165	180
1×50	2.5	1.6	20.0	901	0.3870	12.5	200	215
1×70	2.5	1.6	22.0	1128	0.2680	12.5	250	265
1×95	2.5	1.7	23.0	1391	0.1930	12.5	305	315
1×120	2.5	1.8	25.0	1655	0.1530	12.5	355	360
1×150	2.5	1.8	26.0	1961	0.1240	12.5	405	405
1×185	2.5	1.9	28.0	2334	0.0991	12.5	465	455
1×240	2.6	1.9	30.0	2904	0.0754	12.5	550	530
1×300	2.8	2.0	33.0	3547	0.0601	12.5	635	595
1×400	3.0	2.2	37.0	4572	0.0470	12.5	745	680
1×500	3.2	2.3	41.0	5630	0.0366	12.5	855	765
1×630	3.2	2.4	45.0	6922	0.0283	12.5	980	860
1×800	3.2	2.5	50.0	8252	0.0221	12.5	1130	950
1×1000	3.2	2.6	54.8	10548	0.0176	12.5	1240	1040
3×25	2.5	2.1	37.0	1858	0.7270	12.5	120	125
3×35	2.5	2.2	39.0	2244	0.5240	12.5	145	155
3×50	2.5	2.3	40.0	2767	0.3870	12.5	175	180
3×70	2.5	2.4	45.0	3494	0.2680	12.5	215	220
3×95	2.5	2.5	48.0	4334	0.1930	12.5	265	265
3×120	2.5	2.6	51.0	5181	0.1530	12.5	305	300
3×150	2.5	2.7	54.0	6154	0.1240	12.5	345	340
3×185	2.5	2.9	58.0	7334	0.0991	12.5	400	380
3×240	2.6	3.0	63.0	9146	0.0754	12.5	470	435
3×300	2.8	3.2	69.0	11176	0.0601	12.5	535	485
3×400	3.0	3.5	77.0	14359	0.0470	12.5	620	520

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Unarmoured Power Cable — 6/10 kV

Unarmoured 6/10 kV

Construction: CU/XLPE/CTS/PVC also supplied as CU/XLPE/CTS/FR-PVC
Designation: YJV 6/10 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 6/10 kV
Russia / CIS ГОСТ 34834-2022: ПвЭВ

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Sheath: PVC or FR-PVC type ST to IEC 60502, black

Application For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single-core cables in magnetic ducts is not allowed.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 26 sizes × 9 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×25	3.4	2.0	20.0	680	0.7270	21	140	150
1×35	3.4	2.0	22.0	800	0.5240	21	175	180
1×50	3.4	2.0	23.0	970	0.3870	21	205	215
1×70	3.4	2.0	24.0	1190	0.2680	21	260	265
1×95	3.4	2.0	26.0	1470	0.1930	21	315	315
1×120	3.4	2.0	28.0	1658	0.1530	21	365	360
1×150	3.4	2.0	30.0	1967	0.1240	21	415	405
1×185	3.4	2.0	31.0	2335	0.0991	21	475	455
1×240	3.4	2.0	34.0	2908	0.0754	21	565	530
1×300	3.4	2.0	36.0	3610	0.0601	21	645	595
1×400	3.4	2.5	39.0	4620	0.0470	21	750	680
1×500	3.4	2.5	42.0	5650	0.0366	21	865	765
1×630	3.4	2.5	48.0	6952	0.0283	21	990	860
1×800	3.4	2.6	52.0	8670	0.0221	21	1140	950
1×1000	3.4	2.8	57.0	10580	0.0176	21	1250	1040
3×25	3.4	2.3	41.0	1870	0.7270	21	120	125
3×35	3.4	2.4	44.0	2293	0.5240	21	145	155
3×50	3.4	2.5	46.0	2812	0.3870	21	175	180
3×70	3.4	2.6	50.0	3508	0.2680	21	220	220
3×95	3.4	2.7	53.0	4402	0.1930	21	265	265
3×120	3.4	2.8	56.0	5319	0.1530	21	305	300
3×150	3.4	2.9	59.0	6309	0.1240	21	350	340
3×185	3.4	3.0	62.0	7630	0.0991	21	395	380
3×240	3.4	3.2	68.0	9218	0.0754	21	470	435
3×300	3.4	3.4	72.0	11470	0.0601	21	535	485
3×400	3.4	3.6	81.0	15107	0.0470	21	610	520

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Unarmoured Power Cable — 8.7/15 kV

Unarmoured 8.7/15 kV

Construction: CU/XLPE/CTS/PVC also supplied as CU/XLPE/CTS/FR-PVC
Designation: YJV 8.7/15 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 8.7/15 kV
Russia / CIS ГОСТ 34834-2022: ПвЭВ

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Sheath: PVC or FR-PVC type ST to IEC 60502, black

Application For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single-core cables in magnetic ducts is not allowed.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 26 sizes × 9 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×25	4.5	1.8	23.0	750	0.7270	30.5	140	150
1×35	4.5	1.8	24.0	804	0.5240	30.5	175	180
1×50	4.5	1.9	25.0	984	0.3870	30.5	205	215
1×70	4.5	1.9	27.0	1201	0.2680	30.5	260	265
1×95	4.5	2.0	29.0	1490	0.1930	30.5	315	315
1×120	4.5	2.0	30.0	1765	0.1530	30.5	365	360
1×150	4.5	2.1	32.0	2091	0.1240	30.5	415	405
1×185	4.5	2.1	34.0	2452	0.0991	30.5	475	455
1×240	4.5	2.2	36.0	3034	0.0754	30.5	565	530
1×300	4.5	2.4	39.0	3672	0.0601	30.5	645	595
1×400	4.5	2.4	42.0	4646	0.0470	30.5	750	680
1×500	4.5	2.5	45.0	5651	0.0366	30.5	865	765
1×630	4.5	2.5	50.0	7154	0.0283	30.5	990	860
1×800	4.5	2.7	55.0	8750	0.0221	30.5	1140	950
1×1000	4.5	2.9	59.0	10727	0.0176	30.5	1250	1040
3×25	4.5	2.4	46.0	2573	0.7270	30.5	120	125
3×35	4.5	2.6	48.0	2985	0.5240	30.5	145	155
3×50	4.5	2.7	51.0	3529	0.3870	30.5	175	180
3×70	4.5	2.8	55.0	4197	0.2680	30.5	220	220
3×95	4.5	2.9	58.0	5230	0.1930	30.5	265	265
3×120	4.5	3.0	61.0	6120	0.1530	30.5	305	300
3×150	4.5	3.1	64.0	7207	0.1240	30.5	350	340
3×185	4.5	3.2	68.0	8378	0.0991	30.5	395	380
3×240	4.5	3.4	73.0	10177	0.0754	30.5	470	435
3×300	4.5	3.5	77.0	12159	0.0601	30.5	535	485
3×400	4.5	3.8	86.0	15641	0.0470	30.5	610	520

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Unarmoured Power Cable — 12/20 kV

Unarmoured 12/20 kV

Construction: CU/XLPE/CTS/PVC also supplied as CU/XLPE/CTS/FR-PVC
Designation: YJV 12/20 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 12/20 kV
Russia / CIS ГОСТ 34834-2022: ПвЭВ

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Sheath: PVC or FR-PVC type ST to IEC 60502, black

Application For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single-core cables in magnetic ducts is not allowed.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 25 sizes × 9 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×35	5.5	1.9	25.0	979	0.5240	42	170	180
1×50	5.5	1.9	27.0	1155	0.3870	42	205	215
1×70	5.5	2.0	28.0	1393	0.2680	42	260	265
1×95	5.5	2.0	30.0	1681	0.1930	42	315	315
1×120	5.5	2.0	32.0	1979	0.1530	42	360	360
1×150	5.5	2.1	33.0	2301	0.1240	42	410	405
1×185	5.5	2.2	35.0	2718	0.0991	42	470	455
1×240	5.5	2.2	37.0	3302	0.0754	42	555	530
1×300	5.5	2.3	41.2	3941	0.0601	42	640	595
1×400	5.5	2.4	43.0	4931	0.0470	42	745	680
1×500	5.5	2.5	47.0	5956	0.0366	42	885	765
1×630	5.5	2.6	51.0	7769	0.0283	42	980	860
1×800	5.5	2.8	57.2	8945	0.0221	42	1100	950
1×1000	5.5	2.9	61.0	10918	0.0176	42	1230	1040
1×1200	5.5	3.1	65.0	12900	0.0151	42	1320	1100
3×35	5.5	2.7	53.0	3348	0.5240	42	140	155
3×50	5.5	2.9	55.0	3904	0.3870	42	165	180
3×70	5.5	2.9	59.0	4623	0.2680	42	210	220
3×95	5.5	3.0	62.0	5593	0.1930	42	255	265
3×120	5.5	3.1	66.0	6495	0.1530	42	290	300
3×150	5.5	3.2	69.0	7637	0.1240	42	330	340
3×185	5.5	3.4	72.0	8803	0.0991	42	435	380
3×240	5.5	3.5	77.0	10729	0.0754	42	495	435
3×300	5.5	3.7	82.0	12723	0.0601	42	565	485
3×400	5.5	3.9	90.0	16207	0.0470	42	640	520

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Unarmoured Power Cable — 18/30 kV

Unarmoured 18/30 kV

Construction: CU/XLPE/CTS/PVC also supplied as CU/XLPE/CTS/FR-PVC
Designation: YJV 18/30 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 18/30 kV
Russia / CIS ГОСТ 34834-2022: ПвЭВ

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Sheath: PVC or FR-PVC type ST to IEC 60502, black

Application For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single-core cables in magnetic ducts is not allowed.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 20 sizes × 9 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×50	8.0	2.0	33.0	1560	0.3870	63	210	215
1×70	8.0	2.1	35.0	1840	0.2680	63	260	265
1×95	8.0	2.1	36.0	2140	0.1930	63	320	315
1×120	8.0	2.2	38.0	2450	0.1530	63	370	360
1×150	8.0	2.2	39.0	2790	0.1240	63	420	405
1×185	8.0	2.3	41.0	3200	0.0991	63	480	455
1×240	8.0	2.3	43.0	3800	0.0754	63	565	530
1×300	8.0	2.4	45.0	4460	0.0601	63	650	595
1×400	8.0	2.5	49.0	5530	0.0470	63	755	680
1×500	8.0	2.6	53.0	6160	0.0366	63	865	765
1×630	8.0	2.7	56.0	8020	0.0283	63	1000	860
3×50	8.0	2.8	69.5	5290	0.3870	63	175	180
3×70	8.0	2.9	73.7	6240	0.2680	63	220	220
3×95	8.0	3.0	77.7	7360	0.1930	63	255	265
3×120	8.0	3.1	80.6	8350	0.1530	63	290	300
3×150	8.0	3.2	84.1	9520	0.1240	63	330	340
3×185	8.0	3.4	87.6	10830	0.0991	63	435	380
3×240	8.0	3.5	91.9	12810	0.0754	63	495	435
3×300	8.0	3.7	96.5	14920	0.0601	63	565	485
3×400	8.0	3.9	101.2	18110	0.0470	63	640	520

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Unarmoured Power Cable — 21/35 kV

Unarmoured 21/35 kV

Construction: CU/XLPE/CTS/PVC also supplied as CU/XLPE/CTS/FR-PVC
Designation: YJV 21/35 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 21/35 kV
Russia / CIS ГОСТ 34834-2022: ПвЭВ

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Sheath: PVC or FR-PVC type ST to IEC 60502, black

Application For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single-core cables in magnetic ducts is not allowed.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 23 sizes × 9 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×50	9.3	2.0	37.0	1609	0.3870	73.5	220	215
1×70	9.3	2.5	38.0	1850	0.2680	73.5	270	265
1×95	9.3	2.5	40.0	2193	0.1930	73.5	330	315
1×120	9.3	2.5	42.0	2498	0.1530	73.5	375	360
1×150	9.3	2.5	44.0	2830	0.1240	73.5	425	400
1×185	9.3	2.5	45.0	3248	0.0991	73.5	485	455
1×240	9.3	2.5	48.0	3881	0.0754	73.5	560	525
1×300	9.3	3.0	50.0	4529	0.0601	73.5	650	595
1×400	9.3	3.0	53.0	5570	0.0470	73.5	760	680
1×500	9.3	3.0	55.0	6690	0.0366	73.5	875	775
1×630	9.3	3.1	60.0	8099	0.0283	73.5	1000	875
1×800	9.3	3.1	65.0	9752	0.0221	73.5	1130	970
1×1000	9.3	3.2	70.0	11781	0.0176	73.5	1250	1060
1×1200	9.3	3.3	74.0	13784	0.0151	73.5	1350	1120
3×50	9.3	3.5	76.0	6000	0.3870	73.5	185	200
3×70	9.3	3.6	80.0	6970	0.2680	73.5	230	250
3×95	9.3	3.7	83.0	7980	0.1930	73.5	280	300
3×120	9.3	3.8	86.0	9010	0.1530	73.5	310	330
3×150	9.3	3.9	89.0	10130	0.1240	73.5	360	380
3×185	9.3	4.0	93.0	11540	0.0991	73.5	400	425
3×240	9.3	4.2	98.0	13670	0.0754	73.5	470	490
3×300	9.3	4.3	102.0	15700	0.0601	73.5	540	555
3×400	9.3	4.6	110.0	19520	0.0470	73.5	610	625

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Unarmoured Power Cable — 26/35 kV

Unarmoured 26/35 kV

Construction: CU/XLPE/CTS/PVC also supplied as CU/XLPE/CTS/FR-PVC
Designation: YJV 26/35 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 26/35 kV
Russia / CIS ГОСТ 34834-2022: ПвЭВ

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Sheath: PVC or FR-PVC type ST to IEC 60502, black

Application For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single-core cables in magnetic ducts is not allowed.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 23 sizes × 9 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×50	10.5	2.2	39.0	1758	0.387	91	220	215
1×70	10.5	2.4	41.0	2038	0.268	91	270	265
1×95	10.5	2.4	42.0	2355	0.193	91	330	315
1×120	10.5	2.4	44.0	2666	0.153	91	375	360
1×150	10.5	2.5	45.0	3031	0.124	91	425	400
1×185	10.5	2.5	47.0	3427	0.0991	91	485	455
1×240	10.5	2.6	49.0	4070	0.0754	91	560	525
1×300	10.5	2.7	51.0	4748	0.0601	91	650	595
1×400	10.5	2.8	55.0	5801	0.0470	91	760	680
1×500	10.5	2.9	58.0	6920	0.0366	91	875	775
1×630	10.5	3.0	62.0	8211	0.0283	91	1000	875
1×800	10.5	3.1	68.0	10014	0.0221	91	1130	970
1×1000	10.5	3.3	72.0	12078	0.0176	91	1250	1060
1×1200	10.5	3.4	76.0	14100	0.0151	91	1350	1120
3×50	10.5	3.7	81.0	6728	0.387	91	185	200
3×70	10.5	3.8	84.0	7581	0.268	91	230	250
3×95	10.5	3.9	88.0	8630	0.193	91	280	300
3×120	10.5	4.0	91.0	9688	0.153	91	310	330
3×150	10.5	4.1	95.0	11017	0.124	91	360	380
3×185	10.5	4.2	98.0	12390	0.0991	91	400	425
3×240	10.5	4.4	103.0	14427	0.0754	91	470	490
3×300	10.5	4.5	108.0	15940	0.0601	91	540	555
3×400	10.5	4.8	116.0	20560	0.0470	91	610	625

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Armoured Power Cable — 3.6/6 kV

Aluminium wire armoured (AWA) single-coreGalvanized steel wire armoured (SWA) multi-core 3.6/6 kV

Construction: CU/XLPE/CTS/PVC/AWA/PVC also supplied as CU/XLPE/CTS/PVC/AWA/FR-PVC, CU/XLPE/CTS/PVC/SWA/PVC, CU/XLPE/CTS/PVC/SWA/FR-PVC
Designation: YJV 3.6/6 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 3.6/6 kV
Russia / CIS ГОСТ 34834-2022: ПвЭКаШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Aluminium wire - 1 core
Armouring: Galvanized steel wire - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 22 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Armour wire diameter (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×25	2.5	1.2	1.6	1.8	24.0	1396	0.727	12.5	140	150
1×35	2.5	1.2	1.6	1.8	25.0	1550	0.524	12.5	170	180
1×50	2.5	1.2	1.6	1.8	26.0	1754	0.387	12.5	205	215
1×70	2.5	1.2	1.6	1.9	28.0	2054	0.268	12.5	260	265
1×95	2.5	1.2	1.6	1.9	29.0	2367	0.193	12.5	315	315
1×120	2.5	1.2	1.6	2.0	31.0	2701	0.153	12.5	360	360
1×150	2.5	1.2	2.0	2.0	33.0	3301	0.124	12.5	410	405
1×185	2.5	1.2	2.0	2.1	35.0	3756	0.0991	12.5	470	455
1×240	2.6	1.2	2.0	2.2	38.0	4458	0.0754	12.5	555	530
1×300	2.8	1.2	2.0	2.3	40.0	5223	0.0601	12.5	640	595
1×400	3.0	1.3	2.5	2.4	45.0	6804	0.0470	12.5	745	680
1×500	3.2	1.3	2.5	2.5	50.0	8094	0.0366	12.5	885	765
3×25	2.5	1.2	2.0	2.3	44.0	3655	0.727	12.5	120	125
3×35	2.5	1.3	2.5	2.4	47.0	4598	0.524	12.5	140	155
3×50	2.5	1.3	2.5	2.5	50.0	5259	0.387	12.5	165	180
3×70	2.5	1.4	2.5	2.7	54.0	6244	0.268	12.5	210	220
3×95	2.5	1.5	2.5	2.8	57.0	7283	0.193	12.5	255	265
3×120	2.5	1.5	2.5	2.9	61.0	8317	0.153	12.5	290	300
3×150	2.5	1.6	2.5	3.0	64.0	9492	0.124	12.5	330	340
3×185	2.5	1.7	2.5	3.1	67.0	10901	0.0991	12.5	375	380
3×240	2.6	1.8	3.15	3.4	74.0	14046	0.0754	12.5	435	435
3×300	2.8	1.9	3.15	3.6	80.0	16533	0.0601	12.5	495	485

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Armoured Power Cable — 6/10 kV

Aluminium wire armoured (AWA) single-coreGalvanized steel wire armoured (SWA) multi-core 6/10 kV

Construction: CU/XLPE/CTS/PVC/AWA/PVC also supplied as CU/XLPE/CTS/PVC/AWA/FR-PVC, CU/XLPE/CTS/PVC/SWA/PVC, CU/XLPE/CTS/PVC/SWA/FR-PVC
Designation: YJV 6/10 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 6/10 kV
Russia / CIS ГОСТ 34834-2022: ПвЭКаШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Aluminium wire - 1 core
Armouring: Galvanized steel wire - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 22 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Armour wire diameter (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×25	3.4	1.2	1.6	1.8	26.0	1531	0.727	21	140	150
1×35	3.4	1.2	1.6	1.8	27.0	1687	0.524	21	170	180
1×50	3.4	1.2	1.6	1.9	28.0	1907	0.387	21	205	215
1×70	3.4	1.2	1.6	1.9	30.0	2200	0.268	21	260	265
1×95	3.4	1.2	1.6	2.0	31.0	2531	0.193	21	315	315
1×120	3.4	1.2	2.0	2.0	34.0	3103	0.153	21	360	360
1×150	3.4	1.2	2.0	2.1	35.0	3488	0.124	21	410	405
1×185	3.4	1.2	2.0	2.2	37.0	3950	0.0991	21	470	455
1×240	3.4	1.2	2.0	2.2	40.0	4623	0.0754	21	555	530
1×300	3.4	1.2	2.0	2.3	42.0	5351	0.0601	21	640	595
1×400	3.4	1.3	2.5	2.4	47.0	6901	0.0470	21	745	680
1×500	3.4	1.3	2.5	2.5	51.0	8145	0.0366	21	885	765
3×25	3.4	1.3	2.5	2.5	49.0	4579	0.727	21	120	125
3×35	3.4	1.3	2.5	2.6	52.0	5095	0.524	21	140	155
3×50	3.4	1.4	2.5	2.7	54.0	5802	0.387	21	165	180
3×70	3.4	1.5	2.5	2.8	58.0	6788	0.268	21	210	220
3×95	3.4	1.5	2.5	2.9	62.0	7812	0.193	21	255	265
3×120	3.4	1.6	2.5	3.1	65.0	8929	0.153	21	290	300
3×150	3.4	1.7	2.5	3.2	68.0	10125	0.124	21	330	340
3×185	3.4	1.7	3.15	3.3	72.0	12403	0.0991	21	375	380
3×240	3.4	1.8	3.15	3.5	78.0	14646	0.0754	21	435	435
3×300	3.4	1.9	3.15	3.7	83.0	17014	0.0601	21	495	485

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Armoured Power Cable — 8.7/15 kV

Aluminium wire armoured (AWA) single-coreGalvanized steel wire armoured (SWA) multi-core 8.7/15 kV

Construction: CU/XLPE/CTS/PVC/AWA/PVC also supplied as CU/XLPE/CTS/PVC/AWA/FR-PVC, CU/XLPE/CTS/PVC/SWA/PVC, CU/XLPE/CTS/PVC/SWA/FR-PVC
Designation: YJV 8.7/15 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 8.7/15 kV
Russia / CIS ГОСТ 34834-2022: ПвЭКаШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Aluminium wire - 1 core
Armouring: Galvanized steel wire - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 22 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Armour wire diameter (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×25	4.5	1.2	1.6	1.9	28.0	1714	0.727	30.5	140	150
1×35	4.5	1.2	1.6	1.9	29.0	1874	0.524	30.5	170	180
1×50	4.5	1.2	1.6	1.9	30.0	2086	0.387	30.5	205	215
1×70	4.5	1.2	2.0	2.0	33.0	2641	0.268	30.5	260	265
1×95	4.5	1.2	2.0	2.1	35.0	2990	0.193	30.5	315	315
1×120	4.5	1.2	2.0	2.1	36.0	3332	0.153	30.5	360	360
1×150	4.5	1.2	2.0	2.2	38.0	3723	0.124	30.5	410	405
1×185	4.5	1.2	2.0	2.2	40.0	4174	0.0991	30.5	470	455
1×240	4.5	1.2	2.0	2.3	42.0	4874	0.0754	30.5	555	530
1×300	4.5	1.3	2.5	2.4	45.0	6056	0.0601	30.5	640	595
1×400	4.5	1.3	2.5	2.5	49.0	7195	0.0470	30.5	745	680
1×500	4.5	1.4	2.5	2.6	54.0	8485	0.0366	30.5	885	765
3×25	4.5	1.4	2.5	2.7	54.0	5224	0.727	30.5	120	125
3×35	4.5	1.5	2.5	2.8	57.0	5790	0.524	30.5	140	155
3×50	4.5	1.5	2.5	2.9	60.0	6485	0.387	30.5	165	180
3×70	4.5	1.6	2.5	3.0	64.0	7501	0.268	30.5	210	220
3×95	4.5	1.6	2.5	3.1	67.0	8548	0.193	30.5	255	265
3×120	4.5	1.7	2.5	3.2	70.0	9663	0.153	30.5	290	300
3×150	4.5	1.8	3.15	3.4	75.0	11811	0.124	30.5	330	340
3×185	4.5	1.8	3.15	3.5	78.0	13282	0.0991	30.5	375	380
3×240	4.5	1.9	3.15	3.7	84.0	15567	0.0754	30.5	435	435
3×300	4.5	2.0	3.15	3.8	88.0	17937	0.0601	30.5	495	485

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Armoured Power Cable — 12/20 kV

Aluminium wire armoured (AWA) single-coreGalvanized steel wire armoured (SWA) multi-core 12/20 kV

Construction: CU/XLPE/CTS/PVC/AWA/PVC also supplied as CU/XLPE/CTS/PVC/AWA/FR-PVC, CU/XLPE/CTS/PVC/SWA/PVC, CU/XLPE/CTS/PVC/SWA/FR-PVC
Designation: YJV 12/20 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 12/20 kV
Russia / CIS ГОСТ 34834-2022: ПвЭКаШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Aluminium wire - 1 core
Armouring: Galvanized steel wire - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 20 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Armour wire diameter (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×35	5.5	1.2	1.6	2.0	31.0	2291	0.524	42	170	180
1×50	5.5	1.2	1.6	2.0	33.0	2515	0.387	42	205	215
1×70	5.5	1.2	2.0	2.1	35.0	2847	0.268	42	260	265
1×95	5.5	1.2	2.0	2.1	37.0	3186	0.193	42	315	315
1×120	5.5	1.2	2.0	2.2	39.0	3547	0.153	42	360	360
1×150	5.5	1.2	2.0	2.2	40.0	3928	0.124	42	410	405
1×185	5.5	1.2	2.0	2.3	42.0	4402	0.0991	42	470	455
1×240	5.5	1.3	2.5	2.4	45.0	5554	0.0754	42	555	530
1×300	5.5	1.3	2.5	2.5	47.0	6323	0.0601	42	640	595
1×400	5.5	1.4	2.5	2.6	52.0	7501	0.0470	42	745	680
1×500	5.5	1.4	2.5	2.7	56.0	8776	0.0366	42	885	765
3×35	5.5	1.5	2.5	2.9	62.0	6374	0.524	42	140	155
3×50	5.5	1.6	2.5	3.0	64.0	7122	0.387	42	165	180
3×70	5.5	1.7	2.5	3.2	68.0	8190	0.268	42	210	220
3×95	5.5	1.7	2.5	3.3	71.0	9258	0.193	42	255	265
3×120	5.5	1.8	3.15	3.4	76.0	11311	0.153	42	290	300
3×150	5.5	1.9	3.15	3.5	80.0	12594	0.124	42	330	340
3×185	5.5	1.9	3.15	3.7	83.0	14125	0.0991	42	375	380
3×240	5.5	2.0	3.15	3.8	88.0	16412	0.0754	42	435	435
3×300	5.5	2.1	3.15	4.0	93.0	18855	0.0601	42	495	485

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Armoured Power Cable — 18/30 kV

Aluminium wire armoured (AWA) single-coreGalvanized steel wire armoured (SWA) multi-core 18/30 kV

Construction: CU/XLPE/CTS/PVC/AWA/PVC also supplied as CU/XLPE/CTS/PVC/AWA/FR-PVC, CU/XLPE/CTS/PVC/SWA/PVC, CU/XLPE/CTS/PVC/SWA/FR-PVC
Designation: YJV 18/30 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 18/30 kV
Russia / CIS ГОСТ 34834-2022: ПвЭКаШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Aluminium wire - 1 core
Armouring: Galvanized steel wire - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 18 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Armour wire diameter (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×50	8.0	1.2	2.0	2.2	40.0	2857	0.387	63	220	215
1×70	8.0	1.2	2.0	2.3	42.0	3166	0.268	63	270	265
1×95	8.0	1.2	2.0	2.3	43.0	3499	0.193	63	330	315
1×120	8.0	1.3	2.5	2.4	46.0	4264	0.153	63	375	360
1×150	8.0	1.4	2.5	2.5	48.0	4671	0.124	63	425	400
1×185	8.0	1.4	2.5	2.5	49.0	5121	0.0991	63	485	455
1×240	8.0	1.4	2.5	2.6	52.0	5780	0.0754	63	560	525
1×300	8.0	1.4	2.5	2.7	54.0	6482	0.0601	63	650	595
1×400	8.0	1.4	2.5	2.8	58.0	7657	0.0470	63	760	680
1×500	8.0	1.6	2.5	2.9	61.0	8894	0.0366	63	875	775
3×50	8.0	1.8	3.15	3.5	80.0	9376	0.387	63	185	200
3×70	8.0	1.8	3.15	3.6	84.0	10426	0.268	63	230	250
3×95	8.0	1.8	3.15	3.7	87.0	11475	0.193	63	285	300
3×120	8.0	1.8	3.15	3.8	90.0	12598	0.153	63	310	380
3×150	8.0	1.8	3.15	3.9	93.0	13855	0.124	63	360	425
3×185	8.0	2.0	3.15	4.0	96.0	15233	0.0991	63	400	490
3×240	8.0	2.0	3.15	4.2	102.0	17481	0.0754	63	470	555
3×300	8.0	2.0	3.15	4.4	107.0	19731	0.0601	63	540	625

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Armoured Power Cable — 21/35 kV

Aluminium wire armoured (AWA) single-coreGalvanized steel wire armoured (SWA) multi-core 21/35 kV

Construction: CU/XLPE/CTS/PVC/AWA/PVC also supplied as CU/XLPE/CTS/PVC/AWA/FR-PVC, CU/XLPE/CTS/PVC/SWA/PVC, CU/XLPE/CTS/PVC/SWA/FR-PVC
Designation: YJV 21/35 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 21/35 kV
Russia / CIS ГОСТ 34834-2022: ПвЭКаШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Aluminium wire - 1 core
Armouring: Galvanized steel wire - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 18 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Armour wire diameter (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×50	9.3	1.2	2.0	2.3	43.0	3329	0.387	73.5	220	215
1×70	9.3	1.2	2.0	2.4	46.0	3687	0.268	73.5	270	265
1×95	9.3	1.3	2.5	2.5	48.0	4510	0.193	73.5	330	315
1×120	9.3	1.3	2.5	2.5	50.0	4891	0.153	73.5	375	360
1×150	9.3	1.3	2.5	2.6	51.0	5323	0.124	73.5	425	400
1×185	9.3	1.4	2.5	2.6	53.0	5850	0.0991	73.5	485	455
1×240	9.3	1.4	2.5	2.7	55.0	6620	0.0754	73.5	560	525
1×300	9.3	1.5	2.5	2.8	56.0	7456	0.0601	73.5	650	595
1×400	9.3	1.5	2.5	2.9	61.0	8642	0.0470	73.5	760	680
1×500	9.3	1.6	2.5	3.0	64.0	10006	0.0366	73.5	875	775
3×50	9.3	1.8	3.15	3.7	87.0	10642	0.387	73.5	185	200
3×70	9.3	1.8	3.15	3.8	90.0	11799	0.268	73.5	230	250
3×95	9.3	1.8	3.15	3.9	93.0	12984	0.193	73.5	285	300
3×120	9.3	1.8	3.15	4.0	97.0	14117	0.153	73.5	310	380
3×150	9.3	2.0	3.15	4.2	100.0	15585	0.124	73.5	360	425
3×185	9.3	2.0	3.15	4.3	104.0	17044	0.0991	73.5	400	490
3×240	9.3	2.0	3.15	4.4	109.0	19178	0.0754	73.5	470	555
3×300	9.3	2.0	3.15	4.6	113.0	21389	0.0601	73.5	540	625

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Armoured Power Cable — 26/35 kV

Aluminium wire armoured (AWA) single-coreGalvanized steel wire armoured (SWA) multi-core 26/35 kV

Construction: CU/XLPE/CTS/PVC/AWA/PVC also supplied as CU/XLPE/CTS/PVC/AWA/FR-PVC, CU/XLPE/CTS/PVC/SWA/PVC, CU/XLPE/CTS/PVC/SWA/FR-PVC
Designation: YJV 26/35 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 26/35 kV
Russia / CIS ГОСТ 34834-2022: ПвЭКаШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Aluminium wire - 1 core
Armouring: Galvanized steel wire - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 18 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Armour wire diameter (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×50	10.5	1.3	2.5	2.4	47.0	4049	0.387	91	220	215
1×70	10.5	1.3	2.5	2.5	49.0	4433	0.268	91	270	265
1×95	10.5	1.3	2.5	2.5	51.0	4809	0.193	91	330	315
1×120	10.5	1.4	2.5	2.6	52.0	5247	0.153	91	375	360
1×150	10.5	1.4	2.5	2.6	54.0	5663	0.124	91	425	400
1×185	10.5	1.4	2.5	2.7	55.0	6191	0.0991	91	485	455
1×240	10.5	1.5	2.5	2.8	58.0	7003	0.0754	91	560	525
1×300	10.5	1.5	2.5	2.9	60.0	7819	0.0601	91	650	595
1×400	10.5	1.6	2.5	3.0	64.0	9051	0.0470	91	760	680
1×500	10.5	1.6	2.5	3.1	67.0	10398	0.0366	91	875	775
3×50	10.5	1.8	3.15	3.9	92.0	11660	0.387	91	185	200
3×70	10.5	1.8	3.15	4.0	96.0	12860	0.268	91	230	250
3×95	10.5	1.9	3.15	4.1	99.0	14036	0.193	91	285	300
3×120	10.5	2.0	3.15	4.2	103.0	15306	0.153	91	310	380
3×150	10.5	2.0	3.15	4.4	106.0	16662	0.124	91	360	425
3×185	10.5	2.0	3.15	4.5	109.0	18130	0.0991	91	400	490
3×240	10.5	2.0	3.15	4.6	114.0	20258	0.0754	91	470	555
3×300	10.5	2.0	3.15	4.8	119.0	22517	0.0601	91	540	625

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Steel Tape Armoured Power Cable — 3.6/6 kV

Stainless steel tape armoured (single-core)Galvanized steel tape armoured (multi-core) 3.6/6 kV

Construction: CU/XLPE/CTS/PVC/STA/PVC also supplied as CU/XLPE/CTS/PVC/STA/FR-PVC
Designation: YJV 3.6/6 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV armoured form YJV22 as written on the selection sheet: YJV 3.6/6 kV
Russia / CIS ГОСТ 34834-2022: ПвЭБШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Stainless steel tape - 1 core
Armouring: Galvanized steel tape - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 23 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Steel tape thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×25	2.5	1.0	2×0.2	1.8	21.5	726	0.727	12.5	140	150
1×35	2.5	1.0	2×0.2	1.8	22.5	845	0.524	12.5	170	180
1×50	2.5	1.0	2×0.2	1.8	23.4	1000	0.387	12.5	205	215
1×70	2.5	1.0	2×0.2	1.8	25.3	1221	0.268	12.5	260	265
1×95	2.5	1.0	2×0.2	1.8	25.9	1468	0.193	12.5	315	315
1×120	2.5	1.0	2×0.2	1.8	27.9	1719	0.153	12.5	360	360
1×150	2.5	1.0	2×0.2	1.9	29.4	2022	0.124	12.5	410	405
1×185	2.5	1.0	2×0.2	1.9	32.0	2358	0.0991	12.5	470	455
1×240	2.6	1.2	2×0.5	2.1	35.7	3169	0.0754	12.5	555	530
1×300	2.8	1.2	2×0.5	2.1	37.8	3770	0.0601	12.5	640	595
1×400	3.0	1.2	2×0.5	2.3	42.3	4786	0.0470	12.5	745	680
1×500	3.2	1.2	2×0.5	2.4	46.8	5875	0.0366	12.5	885	765
3×25	2.5	1.2	2×0.5	2.3	41.0	2816	0.727	12.5	120	125
3×35	2.5	1.3	2×0.5	2.3	43.0	3254	0.524	12.5	140	155
3×50	2.5	1.3	2×0.5	2.4	47.0	3842	0.387	12.5	165	180
3×70	2.5	1.4	2×0.5	2.6	50.0	4706	0.268	12.5	210	220
3×95	2.5	1.5	2×0.5	2.7	53.0	5646	0.193	12.5	255	265
3×120	2.5	1.5	2×0.5	2.8	57.0	6580	0.153	12.5	290	300
3×150	2.5	1.6	2×0.5	2.9	60.0	7659	0.124	12.5	330	340
3×185	2.5	1.7	2×0.5	3.0	64.0	8946	0.0991	12.5	375	380
3×240	2.6	1.8	2×0.5	3.2	69.0	10972	0.0754	12.5	435	435
3×300	2.8	1.9	2×0.5	3.4	75.0	13194	0.0601	12.5	495	485
3×400	3.0	2.0	2×0.8	3.7	83.0	17489	0.0470	12.5	565	520

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Steel Tape Armoured Power Cable — 6/10 kV

Stainless steel tape armoured (single-core)Galvanized steel tape armoured (multi-core) 6/10 kV

Construction: CU/XLPE/CTS/PVC/STA/PVC also supplied as CU/XLPE/CTS/PVC/STA/FR-PVC
Designation: YJV 6/10 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV armoured form YJV22 as written on the selection sheet: YJV 6/10 kV
Russia / CIS ГОСТ 34834-2022: ПвЭБШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Stainless steel tape - 1 core
Armouring: Galvanized steel tape - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 23 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Steel tape thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×25	3.4	1.0	2×0.2	1.8	23.4	808	0.727	21	140	150
1×35	3.4	1.0	2×0.2	1.8	24.9	930	0.524	21	170	180
1×50	3.4	1.0	2×0.2	1.8	25.4	1087	0.387	21	205	215
1×70	3.4	1.0	2×0.2	1.8	26.9	1314	0.268	21	260	265
1×95	3.4	1.0	2×0.2	1.9	28.4	1576	0.193	21	315	315
1×120	3.4	1.0	2×0.2	1.9	31.4	1831	0.153	21	360	360
1×150	3.4	1.0	2×0.2	1.9	33.0	2126	0.124	21	410	405
1×185	3.4	1.2	2×0.5	2.0	34.5	2723	0.0991	21	470	455
1×240	3.4	1.2	2×0.5	2.1	38.3	3284	0.0754	21	555	530
1×300	3.4	1.2	2×0.5	2.2	40.3	3877	0.0601	21	640	595
1×400	3.4	1.2	2×0.5	2.3	44.3	4889	0.0470	21	745	680
1×500	3.4	1.4	2×0.5	2.5	47.8	5992	0.0366	21	885	765
3×25	3.4	1.6	2×0.5	2.5	46.0	3010	0.727	21	120	125
3×35	3.4	1.6	2×0.5	2.6	48.0	3498	0.524	21	140	155
3×50	3.4	1.8	2×0.5	2.6	51.0	4135	0.387	21	165	180
3×70	3.4	1.8	2×0.5	2.8	55.0	4958	0.268	21	210	220
3×95	3.4	2.0	2×0.5	2.9	58.0	5976	0.193	21	255	265
3×120	3.4	2.0	2×0.5	3.0	61.0	6969	0.153	21	290	300
3×150	3.4	2.0	2×0.5	3.1	64.0	8161	0.124	21	330	340
3×185	3.4	2.2	2×0.5	3.2	68.0	9280	0.0991	21	375	380
3×240	3.4	2.2	2×0.5	3.4	73.0	11340	0.0754	21	435	435
3×300	3.4	2.2	2×0.5	3.5	78.0	14247	0.0601	21	495	485
3×400	3.4	2.2	2×0.8	3.8	86.0	17510	0.0470	21	565	520

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Steel Tape Armoured Power Cable — 8.7/15 kV

Stainless steel tape armoured (single-core)Galvanized steel tape armoured (multi-core) 8.7/15 kV

Construction: CU/XLPE/CTS/PVC/STA/PVC also supplied as CU/XLPE/CTS/PVC/STA/FR-PVC
Designation: YJV 8.7/15 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV armoured form YJV22 as written on the selection sheet: YJV 8.7/15 kV
Russia / CIS ГОСТ 34834-2022: ПвЭБШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Stainless steel tape - 1 core
Armouring: Galvanized steel tape - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 23 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Steel tape thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×25	4.5	1.0	2×0.2	1.9	25.5	915	0.727	30.5	140	150
1×35	4.5	1.0	2×0.2	1.9	26.4	1040	0.524	30.5	170	180
1×50	4.5	1.0	2×0.2	1.9	27.4	1201	0.387	30.5	205	215
1×70	4.5	1.0	2×0.2	2.0	29.9	1445	0.268	30.5	260	265
1×95	4.5	1.0	2×0.2	2.0	32.5	1700	0.193	30.5	315	315
1×120	4.5	1.2	2×0.2	2.1	33.5	2005	0.153	30.5	360	360
1×150	4.5	1.2	2×0.5	2.2	35.5	2538	0.124	30.5	410	405
1×185	4.5	1.2	2×0.5	2.2	38.3	2896	0.0991	30.5	470	455
1×240	4.5	1.2	2×0.5	2.3	40.3	3466	0.0754	30.5	555	530
1×300	4.5	1.2	2×0.5	2.4	43.3	4067	0.0601	30.5	640	595
1×400	4.5	1.4	2×0.5	2.5	46.8	5138	0.0470	30.5	745	680
1×500	4.5	1.4	2×0.5	2.6	50.8	6194	0.0366	30.5	885	765
3×25	4.5	1.6	2×0.5	2.6	51.0	3500	0.727	30.5	120	125
3×35	4.5	1.6	2×0.5	2.7	53.0	3980	0.524	30.5	140	155
3×50	4.5	1.8	2×0.5	2.8	56.0	4679	0.387	30.5	165	180
3×70	4.5	1.8	2×0.5	3.0	58.0	5410	0.268	30.5	210	220
3×95	4.5	2.0	2×0.5	3.1	63.0	6567	0.193	30.5	255	265
3×120	4.5	2.0	2×0.5	3.2	66.0	7541	0.153	30.5	290	300
3×150	4.5	2.0	2×0.5	3.3	70.0	8674	0.124	30.5	330	340
3×185	4.5	2.2	2×0.5	3.4	73.0	9991	0.0991	30.5	375	380
3×240	4.5	2.2	2×0.8	3.6	79.0	11887	0.0754	30.5	435	435
3×300	4.5	2.2	2×0.8	3.7	83.0	14974	0.0601	30.5	495	485
3×400	4.5	2.2	2×0.8	4.0	92.0	18230	0.0470	30.5	565	525

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Steel Tape Armoured Power Cable — 12/20 kV

Stainless steel tape armoured (single-core)Galvanized steel tape armoured (multi-core) 12/20 kV

Construction: CU/XLPE/CTS/PVC/STA/PVC also supplied as CU/XLPE/CTS/PVC/STA/FR-PVC
Designation: YJV 12/20 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV armoured form YJV22 as written on the selection sheet: YJV 12/20 kV
Russia / CIS ГОСТ 34834-2022: ПвЭБШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Stainless steel tape - 1 core
Armouring: Galvanized steel tape - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 21 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Steel tape thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×35	5.5	1.0	2×0.2	1.9	27.9	1158	0.524	42	170	180
1×50	5.5	1.0	2×0.2	1.9	29.9	1323	0.387	42	205	215
1×70	5.5	1.0	2×0.2	2.0	32.0	1574	0.268	42	260	265
1×95	5.5	1.2	2×0.5	2.0	34.0	2076	0.193	42	315	315
1×120	5.5	1.2	2×0.5	2.1	36.0	2368	0.153	42	360	360
1×150	5.5	1.2	2×0.5	2.1	37.7	2684	0.124	42	410	405
1×185	5.5	1.2	2×0.5	2.3	39.8	3062	0.0991	42	470	455
1×240	5.5	1.2	2×0.5	2.4	42.2	3640	0.0754	42	555	530
1×300	5.5	1.2	2×0.5	2.4	44.2	4231	0.0601	42	640	595
1×400	5.5	1.4	2×0.5	2.6	48.8	5336	0.0470	42	745	680
1×500	5.5	1.4	2×0.5	2.7	52.7	6405	0.0366	42	885	765
3×35	5.5	1.8	2×0.5	2.9	58.0	4840	0.524	42	140	155
3×50	5.5	1.8	2×0.5	3.0	61.0	5463	0.387	42	165	180
3×70	5.5	2.0	2×0.5	3.1	65.0	6446	0.268	42	210	220
3×95	5.5	2.0	2×0.5	3.2	68.0	7457	0.193	42	255	265
3×120	5.5	2.0	2×0.5	3.3	71.0	8459	0.153	42	290	300
3×150	5.5	2.2	2×0.5	3.4	75.0	10555	0.124	42	330	340
3×185	5.5	2.2	2×0.5	3.5	78.0	11925	0.0991	42	375	380
3×240	5.5	2.2	2×0.8	3.7	83.0	13959	0.0754	42	435	435
3×300	5.5	2.2	2×0.8	3.9	88.0	16314	0.0601	42	495	485
3×400	5.5	2.3	2×0.8	4.1	95.0	19032	0.0470	42	565	520

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Steel Tape Armoured Power Cable — 18/30 kV

Stainless steel tape armoured (single-core)Galvanized steel tape armoured (multi-core) 18/30 kV

Construction: CU/XLPE/CTS/PVC/STA/PVC also supplied as CU/XLPE/CTS/PVC/STA/FR-PVC
Designation: YJV 18/30 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV armoured form YJV22 as written on the selection sheet: YJV 18/30 kV
Russia / CIS ГОСТ 34834-2022: ПвЭБШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Stainless steel tape - 1 core
Armouring: Galvanized steel tape - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 19 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Steel tape thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×50	8.0	1.2	2×0.5	2.1	36.5	1988	0.387	63	210	215
1×70	8.0	1.2	2×0.5	2.2	39.2	2272	0.268	63	260	265
1×95	8.0	1.2	2×0.5	2.2	40.8	2573	0.193	63	320	315
1×120	8.0	1.4	2×0.5	2.3	43.3	2884	0.153	63	370	360
1×150	8.0	1.4	2×0.5	2.3	44.8	3256	0.124	63	420	405
1×185	8.0	1.4	2×0.5	2.4	46.3	3635	0.0991	63	480	455
1×240	8.0	1.4	2×0.5	2.5	48.8	4240	0.0754	63	565	530
1×300	8.0	1.4	2×0.5	2.5	50.8	4874	0.0601	63	650	595
1×400	8.0	1.4	2×0.5	2.7	54.8	5934	0.0470	63	755	680
1×500	8.0	1.6	2×0.5	2.8	58.3	7045	0.0366	63	865	765
3×50	8.0	1.8	2×0.5	3.3	75.0	7200	0.387	63	165	180
3×70	8.0	1.8	2×0.5	3.5	78.0	8230	0.268	63	210	220
3×95	8.0	1.8	2×0.8	3.6	81.0	9410	0.193	63	255	265
3×120	8.0	1.8	2×0.8	3.7	85.0	11120	0.153	63	290	300
3×150	8.0	1.8	2×0.8	3.8	88.0	12400	0.124	63	330	340
3×185	8.0	1.8	2×0.8	4.0	91.0	13910	0.0991	63	375	380
3×240	8.0	2.0	2×0.8	4.1	97.0	16080	0.0754	63	435	435
3×300	8.0	2.0	2×0.8	4.3	101.0	18500	0.0601	63	495	485
3×400	8.0	2.0	2×0.8	4.5	109.0	21920	0.0470	63	565	520

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Steel Tape Armoured Power Cable — 21/35 kV

Stainless steel tape armoured (single-core)Galvanized steel tape armoured (multi-core) 21/35 kV

Construction: CU/XLPE/CTS/PVC/STA/PVC also supplied as CU/XLPE/CTS/PVC/STA/FR-PVC
Designation: YJV 21/35 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV armoured form YJV22 as written on the selection sheet: YJV 21/35 kV
Russia / CIS ГОСТ 34834-2022: ПвЭБШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Stainless steel tape - 1 core
Armouring: Galvanized steel tape - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 19 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Steel tape thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×50	9.3	1.2	2×0.5	2.2	41.3	2229	0.387	73.5	220	215
1×70	9.3	1.2	2×0.5	2.3	43.3	2523	0.268	73.5	270	265
1×95	9.3	1.3	2×0.5	2.4	45.3	2853	0.193	73.5	330	315
1×120	9.3	1.4	2×0.5	2.4	47.2	3172	0.153	73.5	375	360
1×150	9.3	1.4	2×0.5	2.5	48.8	3531	0.124	73.5	425	400
1×185	9.3	1.4	2×0.5	2.5	50.3	3916	0.0991	73.5	485	455
1×240	9.3	1.4	2×0.5	2.6	52.8	4533	0.0754	73.5	560	525
1×300	9.3	1.4	2×0.5	2.7	54.3	5177	0.0601	73.5	650	595
1×400	9.3	1.6	2×0.5	2.8	58.3	6285	0.0470	73.5	760	680
1×500	9.3	1.6	2×0.5	2.9	60.8	7351	0.0366	73.5	875	775
3×50	9.3	1.8	2×0.8	3.6	82.0	8376	0.387	73.5	185	200
3×70	9.3	1.8	2×0.8	3.7	85.0	9442	0.268	73.5	230	250
3×95	9.3	1.8	2×0.8	3.8	88.0	10573	0.193	73.5	280	300
3×120	9.3	1.8	2×0.8	3.9	92.0	11690	0.153	73.5	310	330
3×150	9.3	2.0	2×0.8	4.0	95.0	12957	0.124	73.5	360	380
3×185	9.3	2.0	2×0.8	4.1	99.0	14423	0.0991	73.5	400	425
3×240	9.3	2.0	2×0.8	4.3	104.0	16717	0.0754	73.5	470	490
3×300	9.3	2.0	2×0.8	4.4	108.0	18856	0.0601	73.5	540	555
3×400	9.3	2.0	2×0.8	4.7	116.0	22680	0.0470	73.5	610	625

Source: Shenghua selection sheet

International description

Medium Voltage XLPE Insulated Steel Tape Armoured Power Cable — 26/35 kV

Stainless steel tape armoured (single-core)Galvanized steel tape armoured (multi-core) 26/35 kV

Construction: CU/XLPE/CTS/PVC/STA/PVC also supplied as CU/XLPE/CTS/PVC/STA/FR-PVC
Designation: YJV 26/35 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV armoured form YJV22 as written on the selection sheet: YJV 26/35 kV
Russia / CIS ГОСТ 34834-2022: ПвЭБШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Insulation Screen: Semi-conductor
Screen: Copper tape
Inner covering: PVC
Armouring: Stainless steel tape - 1 core
Armouring: Galvanized steel tape - 3 cores
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 19 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Steel tape thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×50	10.5	1.2	2×0.5	2.3	44.2	2441	0.387	91	220	215
1×70	10.5	1.4	2×0.5	2.4	46.3	2788	0.268	91	270	265
1×95	10.5	1.4	2×0.5	2.4	47.8	3083	0.193	91	330	315
1×120	10.5	1.4	2×0.5	2.5	49.3	3407	0.153	91	375	360
1×150	10.5	1.4	2×0.5	2.5	50.8	3750	0.124	91	425	400
1×185	10.5	1.4	2×0.5	2.6	52.3	4163	0.0991	91	485	455
1×240	10.5	1.4	2×0.5	2.7	54.8	4790	0.0754	91	560	525
1×300	10.5	1.6	2×0.5	2.8	56.8	5498	0.0601	91	650	595
1×400	10.5	1.6	2×0.5	2.9	60.8	6568	0.0470	91	760	680
1×500	10.5	1.6	2×0.5	3.0	63.2	7648	0.0366	91	875	775
3×50	10.5	2.0	2×0.8	3.7	87.0	9975	0.387	91	185	200
3×70	10.5	2.0	2×0.8	3.9	90.0	10927	0.268	91	230	250
3×95	10.5	2.1	2×0.8	4.0	95.0	12190	0.193	91	280	300
3×120	10.5	2.2	2×0.8	4.1	99.0	13451	0.153	91	310	330
3×150	10.5	2.2	2×0.8	4.2	100.0	14907	0.124	91	360	380
3×185	10.5	2.3	2×0.8	4.3	106.0	16501	0.0991	91	400	425
3×240	10.5	2.4	2×0.8	4.5	112.0	18826	0.0754	91	470	490
3×300	10.5	2.6	2×0.8	4.6	115.0	19114	0.0601	91	545	555
3×400	10.5	2.6	2×0.8	4.9	123.0	22818	0.0470	91	635	625

Source: Shenghua selection sheet

On current ratings. The in-air and in-soil values in the tables above are catalogue figures for the construction listed. The rating available to your circuit depends on how it is installed — installation method, ambient temperature, soil thermal resistivity, burial depth and grouping. Send us your installation conditions and we will rate the cable against them. How we publish data →

Type designations by region

Buyers search for a supplier by the designation their own market uses. The codes listed against each construction above are the designations this family is ordered under in China; each is given for cross-reference only, and is published only where a supporting reference exists.

Type designations are given for cross-reference, so a specification written to IEC, GB, EN, DIN VDE, BS or GOST finds the right construction. Each designation is defined by the standard named beside it. Construction, standard edition and approval route are confirmed against your specification before an order is placed.

To quote we need

Send what you have of the following — a partial enquiry still lets us start, and we will tell you which answers are missing.

System voltage (Uo/U) and the neutral earthing arrangement
Conductor cross-section and design current
Single-core or three-core, and the armour required
Prospective earth-fault current and its duration, where the screen has to be sized
Installation route and conditions for the current rating
The standard you work to, the quantity and the drum lengths

Request a Quote

Need a quotation for Medium Voltage Power Cables?

Send the construction, the cross-section and the quantity, and tell us which standard you work to. Our export team replies with a technical and commercial proposal.

Request a Quote Speak to an engineer
