Low Voltage Cables

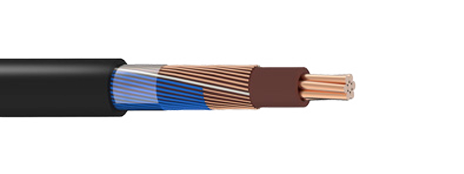

Copper Split Concentric BS 7870 PVC CE cable

Conductor Class 2 stranded copper conductor
Neutral Conductor Plain copper wires covered by a blue polymeric compound
Earth Continuity Conductor Plain copper wires
String Separator Non-hydroscopic separator
Product description: Used by distribution network operators (DNO’s) when providing the final connection to domestic properties. Also suitable for sub main distribution and particularly used within high-rise buildings and
INQUIRY EMAIL

Applications:

Used by distribution network operators (DNO’s) when providing the final connection to domestic properties. Also suitable for sub main distribution and particularly used within high-rise buildings and street lighting systems.

Standards:

BS 7870-3-21, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

Technical data:

Voltage Rating Uo/U

0.6/1KV

Temperature Rating

-15°C to +70°C

Minimum Bending Radius

8 x overall diameter
