Control cables

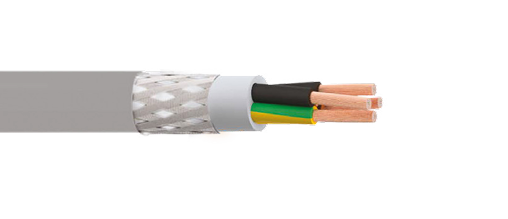

Powerchain CP CE Certified Cable

Conductor Class 6 Fine Stranded Bare Copper
Inner Sheath PUR (Polyurethane)
Screen TCWB (Tinned Copper Wire Braid)
Outer Sheath PUR (Polyurethane)
Product description: Highly flexible control cable for the constantly moved equipment under extreme conditions indoor and outdoor combined with requirements to EMC. The cable is halogen-free, flame retardant and resistant
INQUIRY EMAIL

Applications:

Highly flexible control cable for the constantly moved equipment under extreme conditions indoor and outdoor combined with requirements to EMC. The cable is halogen-free, flame retardant and resistant against most chemicals used in industrial environment.

Standards:

VDE 0482-332-1-2, EN 60811-404

Fire Retardant according to: IEC/EN 60332-1

Technical data:

Voltage Rating Uo/U 300/500V

Temperature Rating Fixed: -50ºC to +80ºC

Installation: -40ºC to +80ºC

Minimum Bending Radius Fixed: 4 x overall diameter

Flexed: 7.5 x overall diameter

PREVIOUS：2XS(FL)2Y HDPE 36/60 (72.5) kV EAC cable No next
