Low Voltage Cables

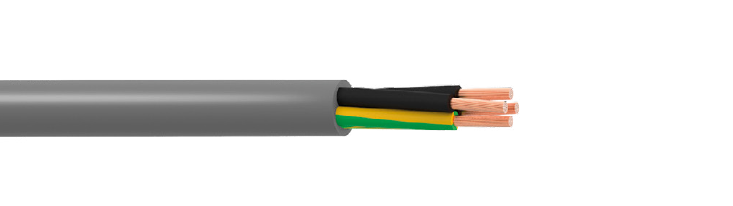

YY PVC (YSLY) Control CE Certified Cable

Conductor Class 5 flexible plain copper
Insulation PVC (Polyvinyl Chloride)
Sheath PVC (Polyvinyl Chloride)
Sheath Colour Grey
Product description: YY control cable for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load.Suitable in dry, ambient and wet
INQUIRY EMAIL

Applications:

YY control cable for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load.Suitable in dry, ambient and wet rooms. These indoor cables are not used for external or underground installation.

Standards:

VDE 0207-363-3, VDE 0482-332-1-2, VDE 819-102 (TM54)

Flame Retardant according to IEC/EN 60332-1-2

Technical data:

Voltage Rating Uo/U

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 12.5 x overall diameter
