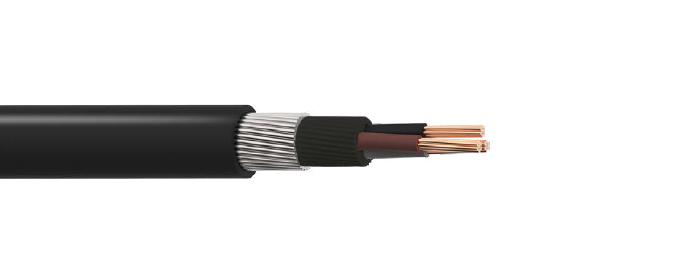

BS 6724 SWA Multi Core Copper Conductor EAC Certified Cable

Applications:

Power and auxiliary control cables for use in power networks,underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

Standards:

BS 6724, IEC/EN 60228, IEC/EN 60502-1

Low Smoke Zero Halogen to IEC/EN 61034, IEC/EN 60754

Flame retardant to EN / IEC 60332-1

UV Resistamt

Technical data:

Voltage Rating Uo/U

1.9/3.3kV

Temperature Rating

Maximum Operating: +90ºC

Maximum Short-Circuit: +250°C

Minimum Bending Radius

12 x overall diameter
