High-temperature resistant power cables: Addressing the challenges of power transmission under high-temperature conditions and strengthening the safety barrier for industrial power supply

High-temperature resistant power cables belong to a special category of power cables, with their core capability being the ability to safely transmit electricity over extended periods at temperatures significantly higher than those of conventional cables.

Below is a detailed introduction to reel cables:

I. Differences between high-temperature resistant power cables and ordinary cables:

Conventional power cables: generally rated for long-term operation at 70°C to 90°C, and for short-term operation up to 130°C.

High-temperature resistant power cables: rated for prolonged operation at 125°C to 250°C, with special variants capable of withstanding up to 450°C or even 1000°C.

Key points: The insulation and sheathing are made of high-temperature resistant materials, while the conductor is often subjected to anti-oxidation treatments (e.g., tin plating or silver plating).

II. Common Types and Temperature Resistance:

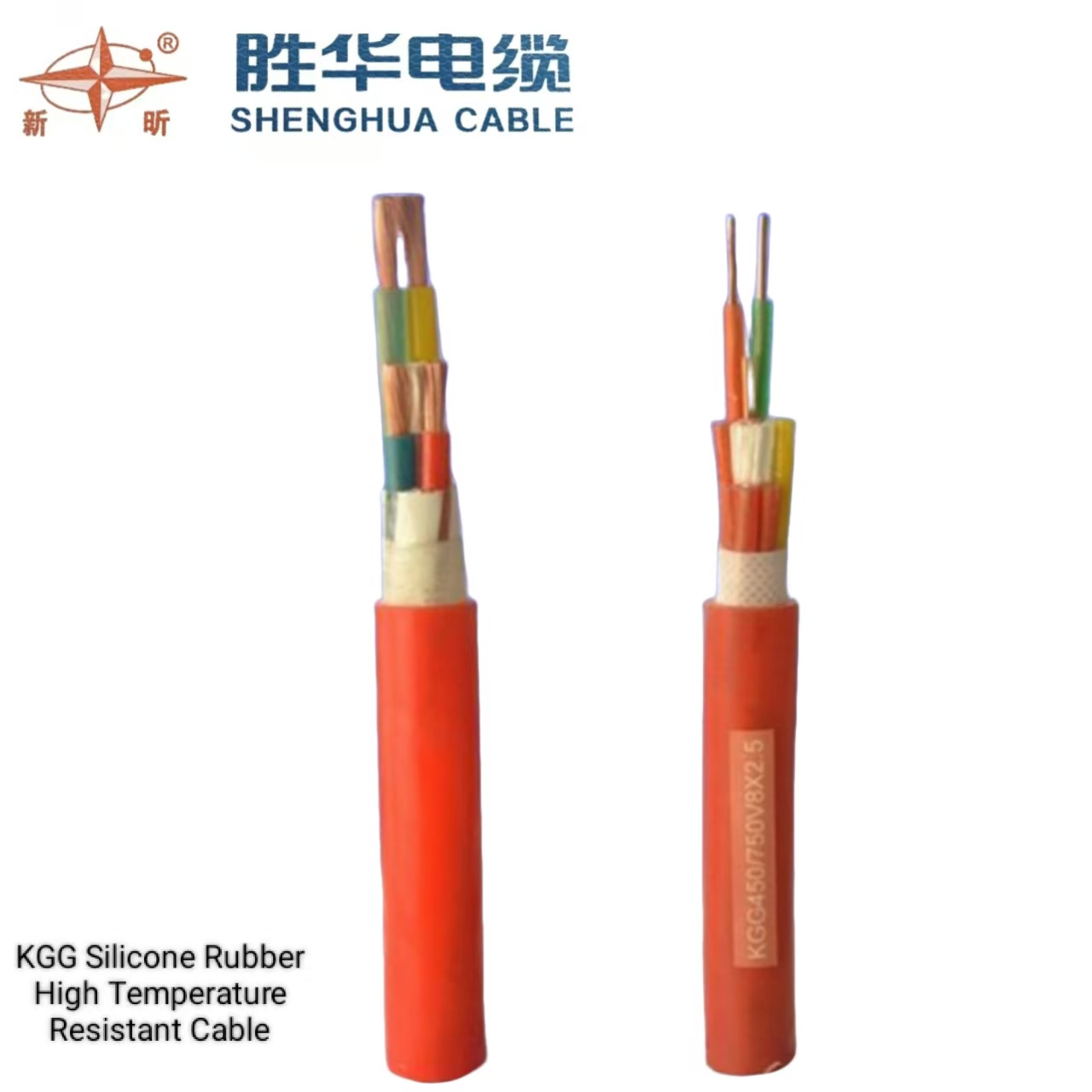

Silicon rubber cable: -60°C to 180°C/200°C; flexible, cold-resistant, and flame-retardant.

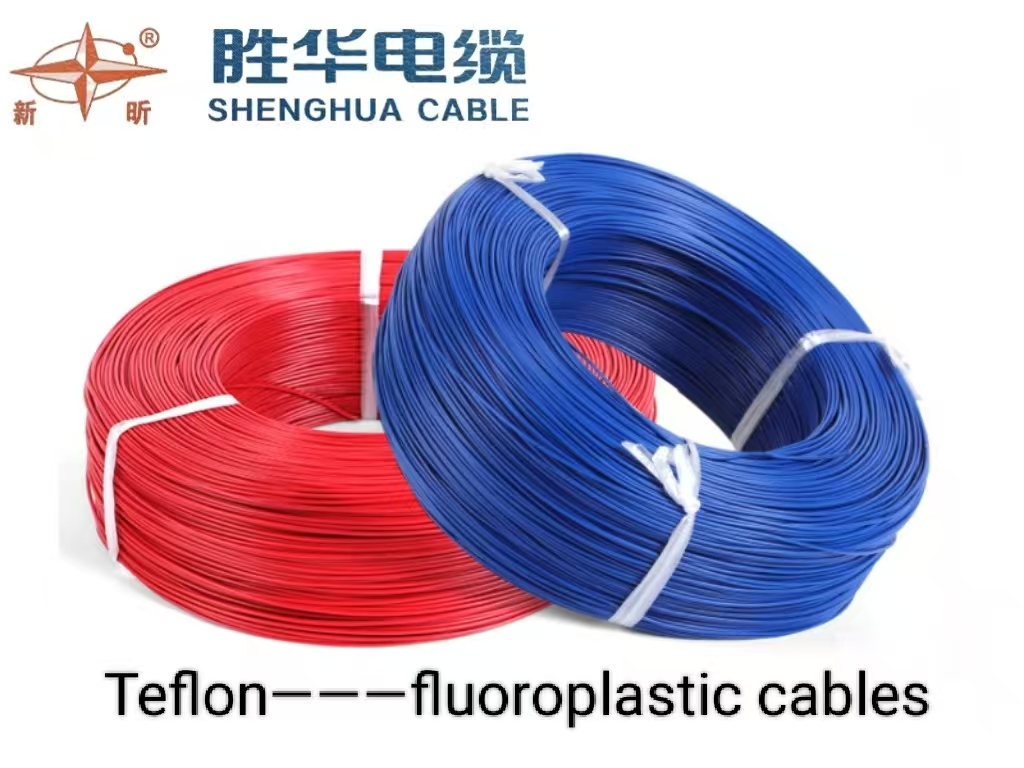

Fluoroplastic cable (FEP/PFA/PTFE): Operating temperature range: -65°C to 200°C to 260°C; resistant to strong acids and alkalis, low-smoke, halogen-free.

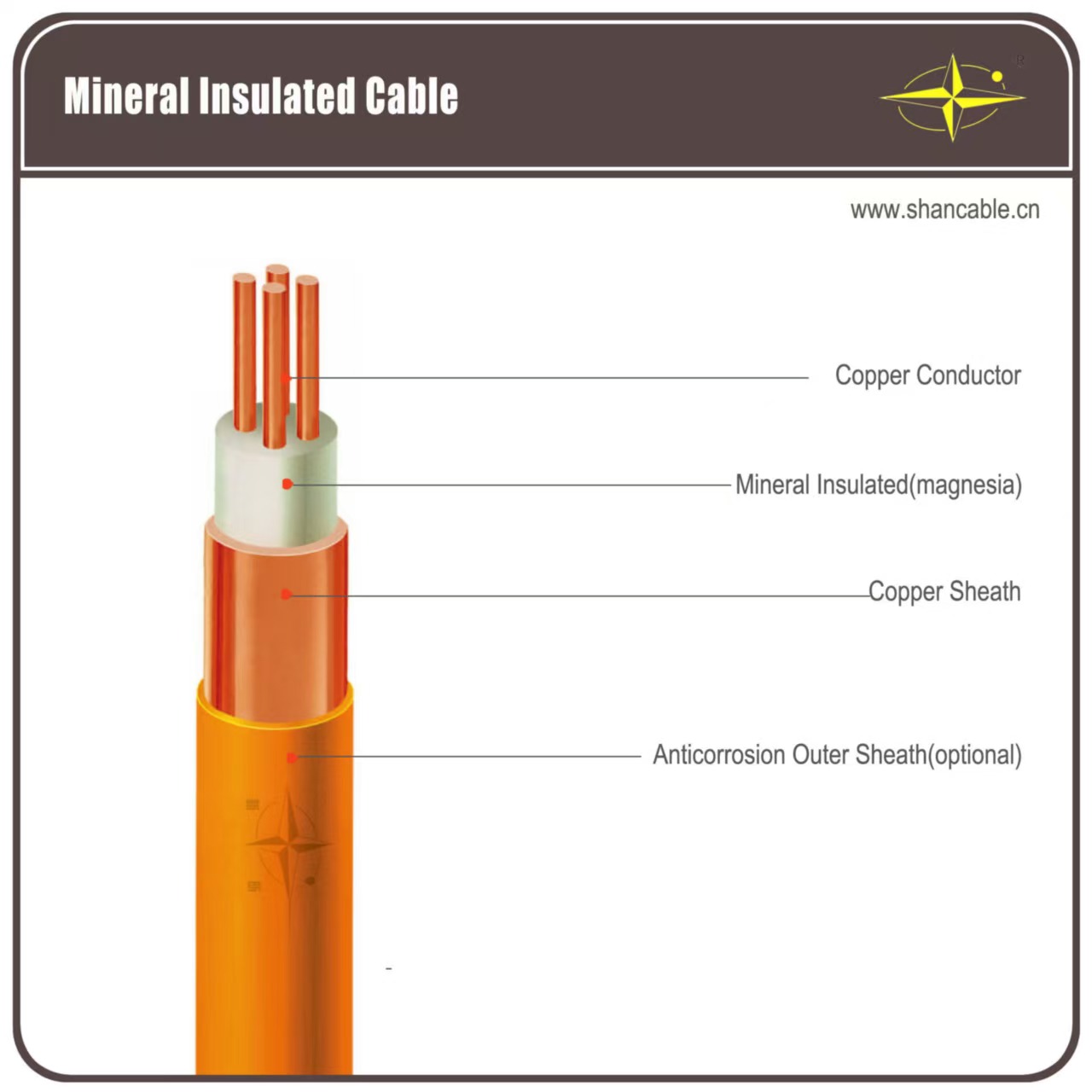

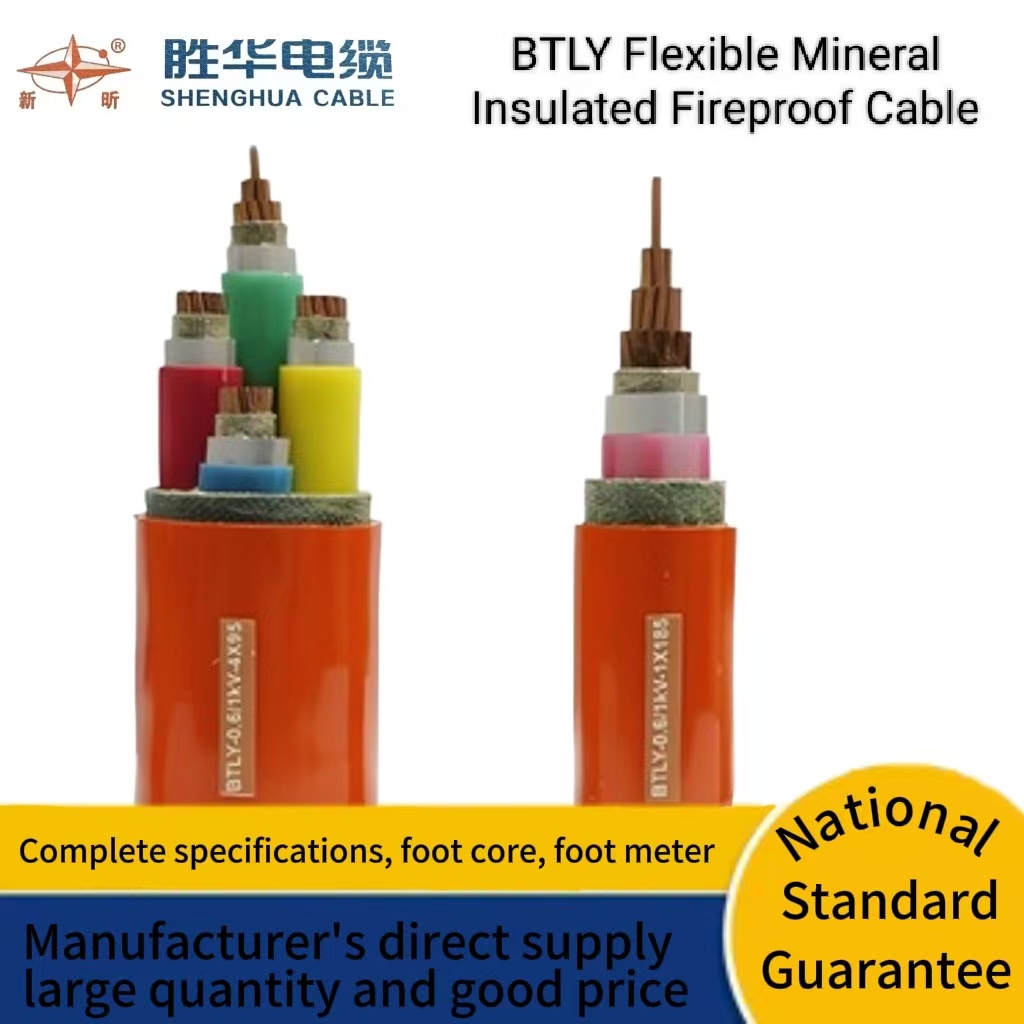

Mineral-insulated cable (MI cable): withstands prolonged temperatures up to 250°C and short-term temperatures exceeding 1000°C; fire-resistant, explosion-proof, and features an exceptionally long service life.

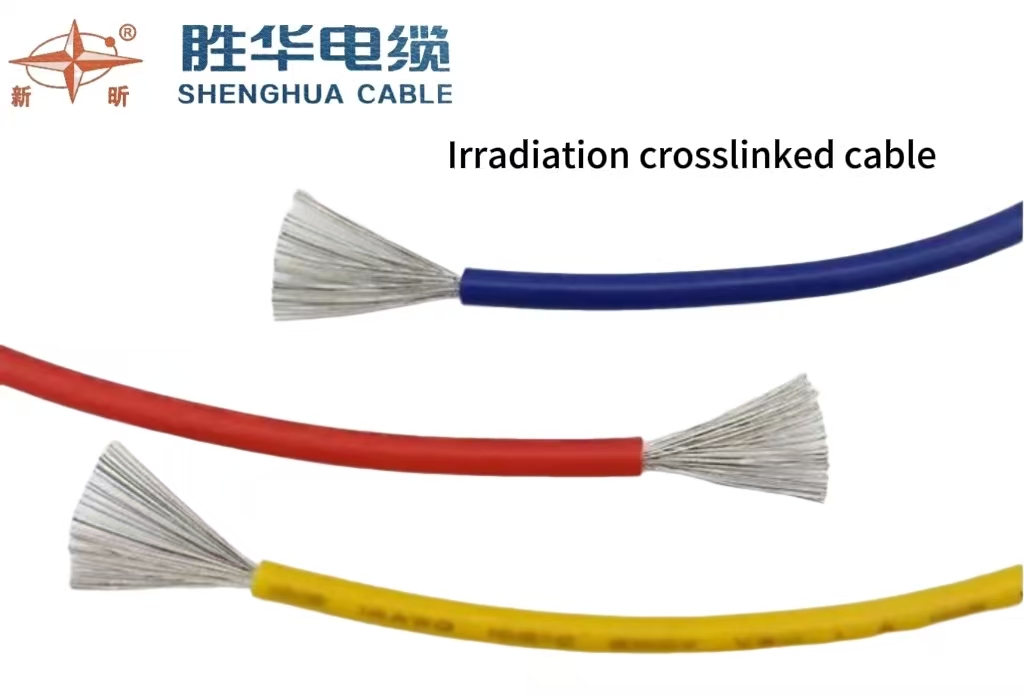

Irradiation-crosslinked cable: operating temperature range of 125°C to 150°C; exhibits higher temperature resistance compared to conventional XLPE and supports greater current capacity.

III. Key Features:

1、High-temperature resistant and resistant to aging;

2、Stable insulation with low breakdown risk;

3、 Oil-resistant, acid/alkali-resistant, and corrosion-resistant;

4、Higher current carrying capacity (enables greater current flow at the same cross-sectional area).

IV. Typical Applications:

1、Metallurgy and Steel Plants: Near high-temperature furnaces and heating equipment;

2、 Chemical Industry: Reaction vessels, high-temperature pipelines, corrosive environments;

3、New Energy: Photovoltaic/wind power systems, energy storage systems, motor harnesses;

4、Drying/Coating: Drying ovens, paint baking lines;

5、Fire Protection/Public Buildings.

V. Summary:

High-temperature resistant power cable = A power cable manufactured from specialized heat-resistant materials, capable of safely transmitting electricity even in high-temperature environments; it is used exclusively where conventional cables are unsuitable.
