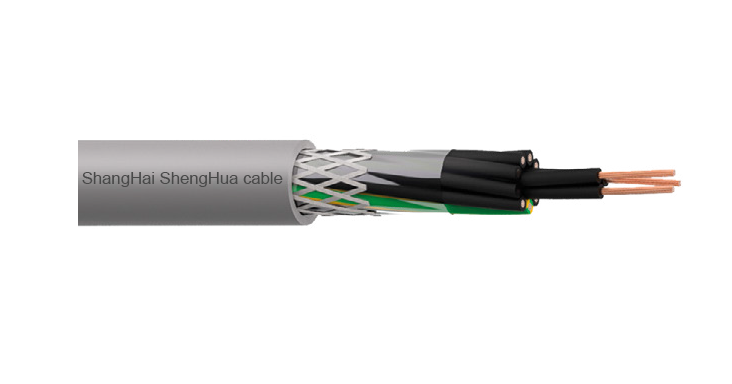

CY PVC (YSLCY) Control Cable

 APPLICATION

 ShangHai ShengHua  screened flexible connecting cables for instrumentation and control equipment, for tooling machinery production lines and, in flexible applications for free movement without tensile load. Suitable for use in dry, moist and wet rooms. These cables are not used for outdoor or underground installation.

CHARACTERISTICS

 Voltage Rating

300/500V

 Temperature Rating

Fixed: -40°C to +80°C

 Flexed: -5°C to +70°C

 Minimum Bending Radius

Fixed: 6 x overall diameter

 Flexed: 15 x overall diameter

 CONSTRUCTION

Conductor

 Class 5 flexible plain copper

 Insulation

 PVC (Polyvinyl Chloride)

 Separator

PET (Polyester Tape)

 Screen

TCWB (Tinned Copper Wire Braid)

 Sheath

PVC (Polyvinyl Chloride)

STANDARDS

 VDE 0207-363-3, VDE 819-102 (TM54) Flame Retardant according to IEC/EN 60332-1-2
