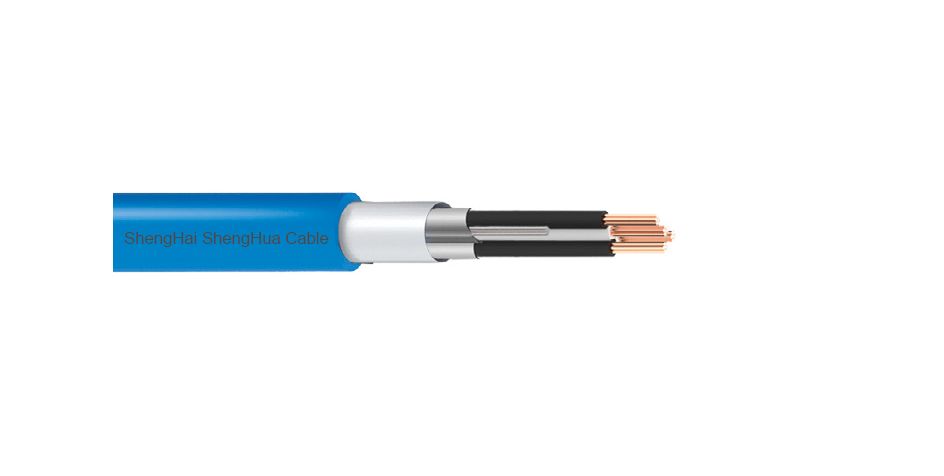

2X(st)Y PVC PiMF Cable

 APPLICATION

 These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Pairs are individually shielded for enhanced signal security. Not suitable for direct burial applications.

CHARACTERISTICS

 Voltage Rating 300/500V

 Operating Temperature

 Fixed: -40°C to +80°C

 Flexed: 0°C to +50°C

 Minimum Bending Radius

 6 x overall diameter

 CONSTRUCTION

Conductor

 0.5mm² - 0.75mm²: Class 5 flexible copper conductor

 1mm² and above: Class 2 stranded copper conductor

 Insulation

XLPE (Cross-Linked Polyethylene)

 Individual and Collective Screen

 Al/PET (Aluminium/Polyester Tape)

 Drain Wire

 Tinned Copper

 Sheath

 PVC (Polyvinyl Chloride) - UV Resistant

STANDARDS

 EN 50288-7, EN 50288-1, EN 60228, HD383 Flame Retardant according to: IEC/EN 60332-1-2, IEC/EN 60332-3-24 UV Resistant
