Product Family 01

Low Voltage Power Cables

Power distribution cables for low voltage networks, industrial plants and building services.

Family at a glance

Family code: 01
Rated voltage: 0.6/1 kV
Constructions published: 5
Sizes covered: 1.5–1000 mm²
Certificates: 3 listed on this page

Scope

Voltage range: 0.6/1 kV

This family covers low voltage distribution up to 1 kV: incoming and sub-main feeders, distribution boards, plant feeders, road and street lighting, and building services. Above 1 kV the enquiry belongs to the medium voltage family, which starts at 3.6/6 kV.

Every construction documented here is XLPE insulated with a PVC sheath over copper conductors. Where the specification calls for low smoke zero halogen behaviour, or for defined performance in fire, the constructions are drawn from those two families instead — they are kept separate so that the test evidence stays attached to the construction that carries it.

Each size is published with its own figures rather than a representative value: insulation, inner covering and sheath thickness, armour wire diameter or steel tape thickness, approximate overall diameter and weight, maximum DC resistance at 20 °C, AC test voltage, and current ratings in both air and soil.

Key characteristics

Five constructions documented side by side: unarmoured, aluminium wire armoured, galvanized steel wire armoured, stainless steel tape armoured, and a single-core stainless steel tape build. Single-core AC circuits take aluminium wire or stainless steel tape armour — a magnetic armour around a single core carries current itself.
Cross-sections from 1.5 mm² to 1000 mm², in 1, 2, 3, 4 and 5 core and in 3+1, 3+2 and 4+1 core arrangements.
Twelve parameters published per size, including current ratings in air and in soil, so a feeder can be checked against the way it will actually be installed.
Working figures are catalogue values. Send the installation conditions and we will re-rate the cable against them rather than quote the table.

Size range at a glance

Type designation	Construction	Rated voltage	Cores	Sizes covered	Sizes listed
`YJV 0.6/1 kV`	`CU/XLPE/PVC`	0.6/1 kV	1, 2, 3, 4, 5, 3+1, 3+2, 4+1	1.5–1000 mm²	122
`YJV 0.6/1 kV`	`CU/XLPE/PVC/AWA/PVC`	0.6/1 kV	1	25–630 mm²	13
`YJV 0.6/1 kV`	`CU/XLPE/PVC/SWA/PVC`	0.6/1 kV	2, 3, 4, 5, 3+1, 3+2, 4+1	1.5–400 mm²	101
`YJV 0.6/1 kV`	`CU/XLPE/PVC/STA/PVC`	0.6/1 kV	1	25–630 mm²	13
`YJV 0.6/1 kV`	`CU/XLPE/PVC/STA/PVC`	0.6/1 kV	2, 3, 4, 5, 3+1, 3+2, 4+1	1.5–400 mm²	100

Each size counted above carries its own dimensional and electrical figures in the tables further down this page. Intermediate sizes are manufactured to order.

Construction

Each entry is identified three ways: an international description, a construction code naming the material build-up, and a national type designation given for cross-reference only. Read the code string left to right — conductor, insulation, then screening, armour and sheath where fitted.

Product photographs

Photographs of builds from this family. Core count, armouring and sheath follow the specification of each order — the data sheet for your build is issued with the quotation.

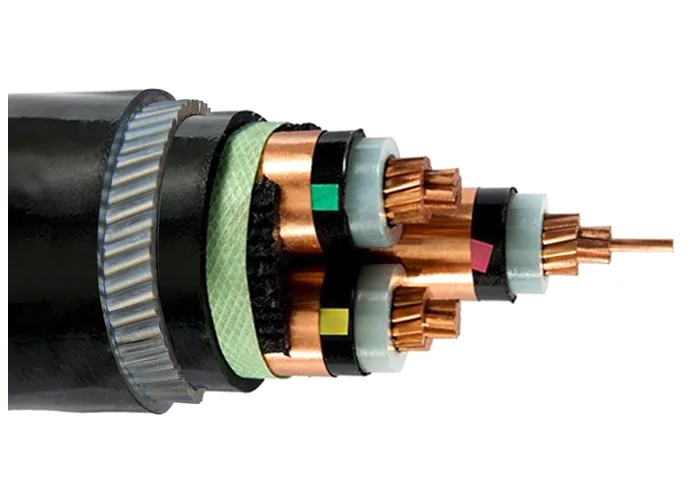

Wire armoured, multi-core — the armour sits over the bedding, insulated cores inside.

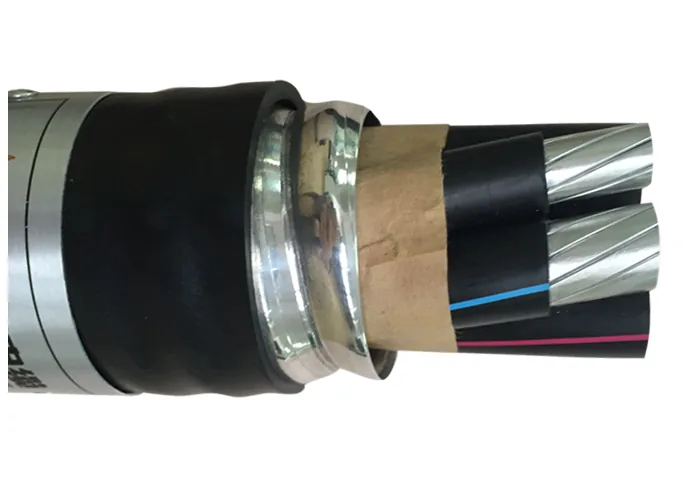

Tape armoured — tape layers over the bedding, shown cut back at the end.

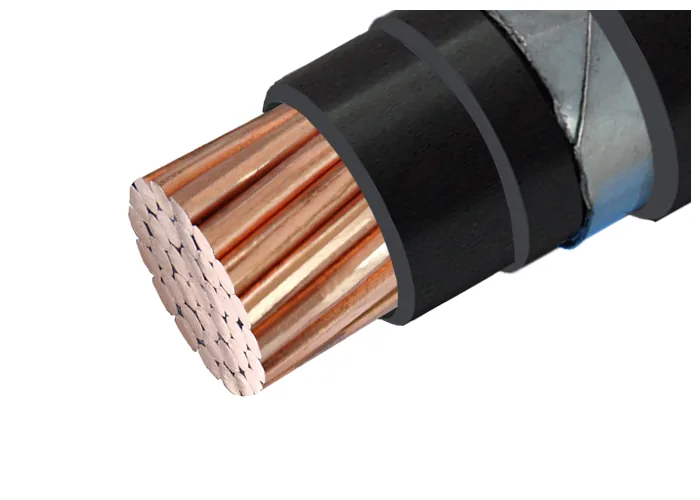

Single core, unarmoured — stranded copper conductor under a black sheath.

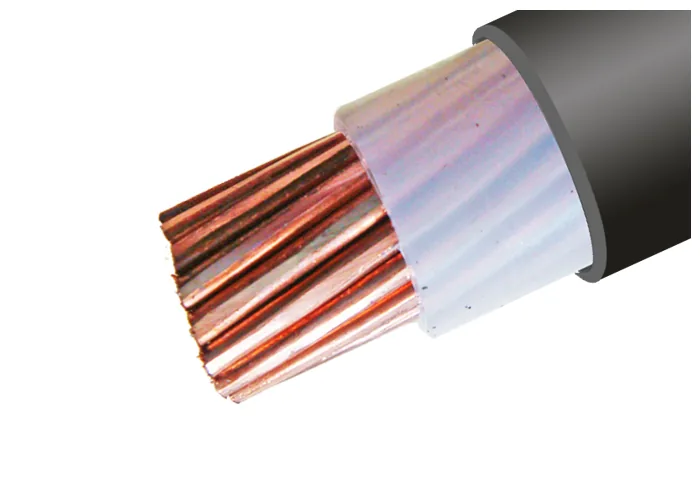

Conductor and the insulation extruded over it, peeled back at the end.

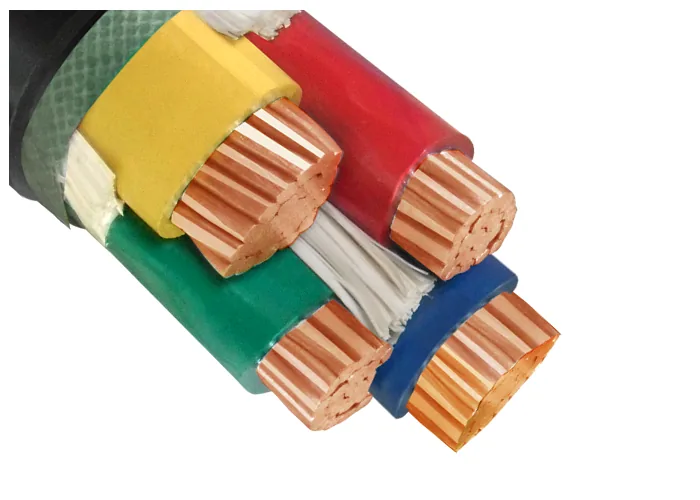

Multi-core build — colour-coded cores and bedding, opened out at the cut end.

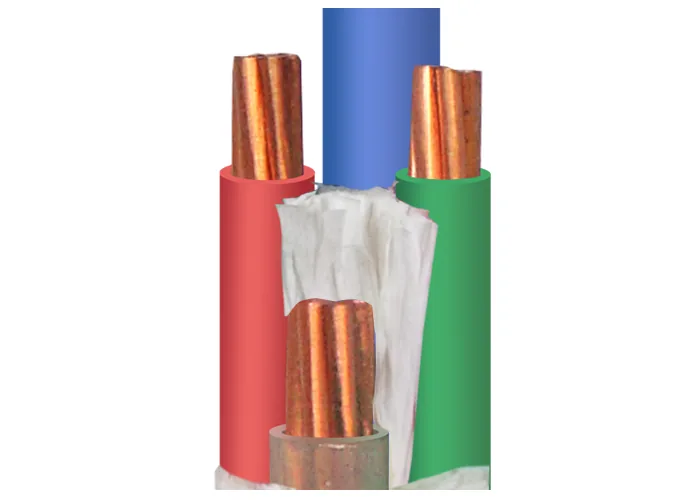

Four cores cut back to the insulation — one of the core arrangements built to order.

International description

Low Voltage XLPE Insulated Unarmoured Power Cable

Unarmoured 0.6/1 kV

Construction: CU/XLPE/PVC also supplied as CU/XLPE/FR-PVC
Designation: YJV 0.6/1 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV as written on the selection sheet: YJV 0.6/1 kV
Europe DIN VDE 0276-603: N2XYGerman designation for the unarmoured build. N2XY is itself an unarmoured designation; the armoured builds of this series are covered by BS 5467.
Russia / CIS ГОСТ 31996-2012: ПвВГ

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Sheath: PVC or FR-PVC type ST to IEC 60502, black

Application For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single-core cables in magnetic ducts is not allowed.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for ZR-YJV only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for ZR-YJV only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 122 sizes × 9 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×1.5	0.7	1.4	6.0	53	12.1	3.5	22	33
1×2.5	0.7	1.4	6.0	68	7.41	3.5	31	43
1×4	0.7	1.4	7.0	87	4.61	3.5	41	56
1×6	0.7	1.4	7.0	110	3.08	3.5	52	70
1×10	0.7	1.4	8.0	155	1.83	3.5	71	94
1×16	0.7	1.4	9.0	220	1.15	3.5	92	120
1×25	0.9	1.4	10.0	345	0.727	3.5	120	155
1×35	0.9	1.4	12.0	424	0.524	3.5	150	185
1×50	1.0	1.4	13.0	555	0.387	3.5	180	220
1×70	1.1	1.4	14.0	770	0.268	3.5	230	270
1×95	1.1	1.5	16.0	1040	0.193	3.5	285	320
1×120	1.2	1.5	18.0	1290	0.153	3.5	335	365
1×150	1.4	1.6	20.0	1590	0.124	3.5	385	410
1×185	1.6	1.6	22.0	1944	0.0991	3.5	450	465
1×240	1.7	1.7	25.0	2510	0.0754	3.5	535	540
1×300	1.8	1.8	27.0	3042	0.0601	3.5	620	610
1×400	2.0	1.9	31.0	3869	0.0470	3.5	720	695
1×500	2.2	2.1	35.0	4910	0.0366	3.5	835	780
1×630	2.4	2.2	40.0	6220	0.0283	3.5	960	880
1×800	2.6	2.4	45.0	7870	0.0221	3.5	1110	970
1×1000	2.8	2.6	51.0	9804	0.0176	3.5	1230	1060
2×2.5	0.7	1.8	11.8	151	7.41	3.5	26	35
2×4	0.7	1.8	12.7	198	4.61	3.5	34	45
2×6	0.7	1.8	13.7	250	3.08	3.5	43	57
2×10	0.7	1.8	15.0	374	1.83	3.5	60	77
2×16	0.7	1.8	17.0	518	1.15	3.5	83	105
2×25	0.9	1.8	20.0	772	0.727	3.5	105	125
2×35	0.9	1.8	22.0	1006	0.524	3.5	125	155
2×50	1.0	1.8	20.0	1365	0.387	3.5	160	185
2×70	1.1	1.8	21.0	1872	0.268	3.5	200	225
2×95	1.1	1.8	24.0	2475	0.193	3.5	245	270
2×120	1.2	1.8	27.0	3089	0.153	3.5	285	310
2×150	1.4	1.9	30.0	3834	0.124	3.5	325	345
3×1.5	0.7	1.5	10.0	145	12.1	3.5	20	27
3×2.5	0.7	1.5	11.0	185	7.41	3.5	26	35
3×4	0.7	1.5	12.0	250	4.61	3.5	34	45
3×6	0.7	1.5	13.0	320	3.08	3.5	43	57
3×10	0.7	1.8	16.0	450	1.83	3.5	60	77
3×16	0.7	1.8	18.0	640	1.15	3.5	83	105
3×25	0.9	1.8	21.0	940	0.727	3.5	105	125
3×35	0.9	1.8	23.0	1260	0.524	3.5	125	155
3×50	1.0	1.8	23.0	1670	0.387	3.5	160	185
3×70	1.1	1.8	26.0	2280	0.268	3.5	200	225
3×95	1.1	1.9	30.0	3020	0.193	3.5	245	270
3×120	1.2	2.0	32.0	3790	0.153	3.5	285	310
3×150	1.4	2.2	37.0	4750	0.124	3.5	325	345
3×185	1.6	2.3	41.0	5654	0.0991	3.5	375	390
3×240	1.7	2.4	46.0	7243	0.0754	3.5	440	450
3×300	1.8	2.6	51.0	9465	0.0601	3.5	505	515
3×400	2.0	3.0	64.0	12066	0.0470	3.5	570	575
4×4	0.7	1.8	13.0	253	4.61	3.5	34	45
4×6	0.7	1.8	14.0	337	3.08	3.5	43	57
4×10	0.7	1.8	17.0	501	1.83	3.5	60	77
4×16	0.7	1.8	20.0	778	1.15	3.5	83	105
4×25	0.9	1.8	23.0	1160	0.727	3.5	105	125
4×35	0.9	1.8	25.0	1554	0.524	3.5	125	155
4×50	1.0	1.8	23.0	2148	0.387	3.5	160	185
4×70	1.1	1.8	27.0	2928	0.268	3.5	200	225
4×95	1.1	1.9	31.0	3854	0.193	3.5	245	270
4×120	1.2	2.0	33.0	4925	0.153	3.5	285	310
4×150	1.4	2.2	38.0	6238	0.124	3.5	325	345
4×185	1.6	2.3	42.0	7562	0.0991	3.5	375	390
4×240	1.7	2.5	47.0	9836	0.0754	3.5	440	450
4×300	1.8	2.6	52.0	12550	0.0601	3.5	505	515
4×400	2.0	3.1	66.0	15929	0.0470	3.5	570	575
5×4	0.7	1.8	14.5	349	4.61	3.5	34	45
5×6	0.7	1.8	15.8	460	3.08	3.5	43	57
5×10	0.7	1.8	19.0	699	1.83	3.5	60	77
5×16	0.7	1.8	22.0	1013	1.15	3.5	83	105
5×25	0.9	1.8	25.0	1566	0.727	3.5	105	125
5×35	0.9	1.9	28.0	2083	0.524	3.5	125	155
5×50	1.0	2.0	31.0	2921	0.387	3.5	160	185
5×70	1.1	2.1	36.0	3974	0.268	3.5	200	225
5×95	1.1	2.2	39.0	5297	0.193	3.5	245	270
5×120	1.2	2.4	44.0	6638	0.153	3.5	285	310
5×150	1.4	2.5	49.0	8290	0.124	3.5	325	345
5×185	1.6	2.7	55.0	10215	0.0991	3.5	375	390
5×240	1.7	3.0	64.0	13130	0.0754	3.5	440	450
5×300	1.8	3.2	70.0	16670	0.0601	3.5	505	515
3×4+1×2.5	0.7	1.8	13.0	236	4.61	3.5	34	45
3×6+1×4	0.7	1.8	14.0	316	3.08	3.5	43	57
3×10+1×6	0.7	1.8	17.0	461	1.83	3.5	60	77
3×16+1×10	0.7	1.8	19.0	679	1.15	3.5	83	105
3×25+1×16	0.9	1.8	22.0	1065	0.727	3.5	105	125
3×35+1×16	0.9	1.8	24.0	1360	0.524	3.5	125	155
3×50+1×25	1.0	1.8	25.0	1901	0.387	3.5	160	185
3×70+1×35	1.1	1.9	28.0	2585	0.268	3.5	200	225
3×95+1×50	1.1	2.0	32.0	3518	0.193	3.5	245	270
3×120+1×70	1.2	2.1	35.0	4443	0.153	3.5	285	310
3×150+1×70	1.4	2.2	40.0	5326	0.124	3.5	325	345
3×185+1×95	1.6	2.4	43.0	6682	0.0991	3.5	375	390
3×240+1×120	1.7	2.5	48.0	8501	0.0754	3.5	440	450
3×300+1×150	1.8	2.7	54.0	11155	0.0601	3.5	505	515
3×400+1×240	2.0	3.1	66.0	14470	0.0470	3.5	570	575
3×4+2×2.5	0.7	1.8	13.9	309	4.61	3.5	34	45
3×6+2×4	0.7	1.8	15.3	413		3.5	43	57
3×10+2×6	0.7	1.8	18.0	603	1.83	3.5	60	77
3×16+2×10	0.7	1.8	21.0	888	1.15	3.5	83	105
3×25+2×16	0.9	1.8	24.0	1342	0.727	3.5	105	125
3×35+2×16	0.9	1.8	26.0	1647	0.524	3.5	125	155
3×50+2×35	1.0	1.9	29.0	2386	0.387	3.5	160	185
3×70+2×35	1.1	2.0	32.0	3201	0.268	3.5	200	225
3×95+2×50	1.1	2.1	36.0	4269	0.193	3.5	245	270
3×120+2×70	1.2	2.3	41.0	5437	0.153	3.5	285	310
3×150+2×70	1.4	2.4	44.0	6519	0.124	3.5	325	345
3×185+2×95	1.6	2.5	49.0	8101	0.0991	3.5	375	390
3×240+2×120	1.7	2.7	54.0	10340	0.0754	3.5	440	450
3×300+2×150	1.8	2.8	56.0	12810	0.0601	3.5	505	515
4×4+1×2.5	0.7	1.8	14.5	331	4.61	3.5	34	45
4×6+1×4	0.7	1.8	15.9	435	3.08	3.5	43	57
4×10+1×6	0.7	1.8	18.0	649	1.83	3.5	60	77
4×16+1×10	0.7	1.8	21.0	965	1.15	3.5	83	105
4×25+1×16	0.9	1.8	25.0	1456	0.727	3.5	105	125
4×35+1×16	0.9	1.8	27.0	1863	0.524	3.5	125	155
4×50+1×25	1.0	1.9	29.0	2633	0.387	3.5	160	185
4×70+1×35	1.1	2.0	32.0	3565	0.268	3.5	200	225
4×95+1×50	1.1	2.1	36.0	4735	0.193	3.5	245	270
4×120+1×70	1.2	2.3	41.0	5977	0.153	3.5	285	310
4×150+1×70	1.4	2.4	44.0	7276	0.124	3.5	325	345
4×185+1×95	1.6	2.5	49.0	9055	0.0991	3.5	375	390
4×240+1×120	1.7	2.7	54.0	11567	0.0754	3.5	440	450
4×300+1×150	1.8	3.1	66.0	14321	0.0601	3.5	505	515

Source: Shenghua selection sheet (pp. 4, 5, 6)

International description

Low Voltage XLPE Insulated Aluminium Wire Armoured Single-core Power Cable

Aluminium wire armoured (AWA) 0.6/1 kV

Construction: CU/XLPE/PVC/AWA/PVC also supplied as CU/XLPE/PVC/AWA/FR-PVC
Designation: YJV 0.6/1 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV armoured form YJV72 as written on the selection sheet: YJV 0.6/1 kV
Europe BS 5467 / IEC 60502-1: BS 5467UK designation for thermosetting-insulated armoured cable; applies to the armoured builds of this series only.
Russia / CIS ГОСТ 31996-2012: ПвКаШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Inner covering: PVC
Armouring: Aluminium wire
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332
China (GB · JB · MT) GB/T 12706.1-2008

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 13 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Armour wire diameter (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×25	0.9	1.0	1.6	1.8	19.0	653	0.727	3.5	120	155
1×35	0.9	1.0	1.6	1.8	20.2	775	0.524	3.5	150	185
1×50	1.0	1.0	1.6	1.8	22.0	936	0.387	3.5	180	220
1×70	1.1	1.0	1.6	1.8	23.5	1175	0.268	3.5	230	270
1×95	1.1	1.0	1.6	1.8	25.3	1556	0.193	3.5	285	320
1×120	1.2	1.0	1.6	1.8	27.0	1822	0.153	3.5	335	365
1×150	1.4	1.0	1.6	1.8	29.3	2156	0.124	3.5	385	410
1×185	1.6	1.0	1.6	1.8	31.5	2536	0.0991	3.5	450	465
1×240	1.7	1.0	2.0	2.0	34.5	3110	0.0754	3.5	535	540
1×300	1.8	1.0	2.0	2.0	38.0	3947	0.0601	3.5	620	610
1×400	2.0	1.2	2.0	2.1	44.0	5046	0.0470	3.5	720	695
1×500	2.2	1.2	2.0	2.2	48.0	6103	0.0366	3.5	835	780
1×630	2.4	1.2	2.5	2.4	54.0	7958	0.0283	3.5	960	880

Source: Shenghua selection sheet

International description

Low Voltage XLPE Insulated Steel Wire Armoured Multi-core Power Cable

Galvanized steel wire armoured (SWA) 0.6/1 kV

Construction: CU/XLPE/PVC/SWA/PVC also supplied as CU/XLPE/PVC/SWA/FR-PVC
Designation: YJV 0.6/1 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV armoured form YJV32 as written on the selection sheet: YJV 0.6/1 kV
Russia / CIS ГОСТ 31996-2012: ПвКШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Inner covering: PVC
Armouring: Galvanized steel wire
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332
China (GB · JB · MT) GB/T 12706.1-2008

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 101 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Armour wire diameter (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
2×1.5	0.7	1.0	0.9	1.8	15.0	330	12.1	3.5	20	27
2×2.5	0.7	1.0	0.9	1.8	16.0	376	7.41	3.5	26	35
2×4	0.7	1.0	0.9	1.8	17.0	554	4.61	3.5	34	45
2×6	0.7	1.0	0.9	1.8	18.2	633	3.08	3.5	43	57
2×10	0.7	1.0	1.25	1.8	21.0	797	1.83	3.5	60	77
2×16	0.7	1.0	1.6	1.8	23.5	1124	1.15	3.5	83	105
2×25	0.9	1.0	1.6	1.8	26.0	1417	0.727	3.5	105	125
2×35	0.9	1.0	1.6	1.8	30.5	1694	0.524	3.5	125	155
2×50	1.0	1.0	1.6	1.8	27.0	1787	0.387	3.5	160	185
2×70	1.1	1.0	1.6	2.0	30.0	2181	0.268	3.5	200	225
2×95	1.1	1.2	1.6	2.1	34.0	2768	0.193	3.5	245	270
2×120	1.2	1.2	2.0	2.2	36.5	3500	0.153	3.5	285	310
2×150	1.4	1.2	2.0	2.4	42.0	4233	0.124	3.5	325	345
2×185	1.6	1.2	2.0	2.5	45.0	4979	0.0991	3.5	375	390
3×1.5	0.7	1.0	0.9	1.8	15.8	359	12.1	3.5	20	27
3×2.5	0.7	1.0	0.9	1.8	16.8	415	7.41	3.5	26	35
3×4	0.7	1.0	0.9	1.8	18.0	611	4.61	3.5	34	45
3×6	0.7	1.0	0.9	1.8	19.0	718	3.08	3.5	43	57
3×10	0.7	1.0	1.25	1.8	22.0	937	1.83	3.5	60	77
3×16	0.7	1.0	1.6	1.8	24.5	1318	1.15	3.5	83	105
3×25	0.9	1.0	1.6	1.8	29.2	1707	0.727	3.5	105	125
3×35	0.9	1.0	1.6	1.8	32.5	2071	0.524	3.5	125	155
3×50	1.0	1.0	1.6	1.9	33.0	2405	0.387	3.5	160	185
3×70	1.1	1.0	1.6	2.0	37.0	3084	0.268	3.5	200	225
3×95	1.1	1.2	1.6	2.1	43.0	4126	0.193	3.5	245	270
3×120	1.2	1.2	2.0	2.3	45.0	4901	0.153	3.5	285	310
3×150	1.4	1.4	2.0	2.4	51.0	6365	0.124	3.5	325	345
3×185	1.6	1.4	2.0	2.6	56.0	7555	0.0991	3.5	375	390
3×240	1.7	1.4	2.5	2.8	62.0	9284	0.0754	3.5	440	450
3×300	1.8	1.6	2.5	3.0	67.0	11226	0.0601	3.5	505	515
3×400	2.0	1.6	2.5	3.2	74.0	15714	0.0470	3.5	570	575
4×4	0.7	1.0	0.9	1.8	18.0	699	4.61	3.5	34	45
4×6	0.7	1.0	1.25	1.8	19.0	820	3.08	3.5	43	57
4×10	0.7	1.0	1.25	1.8	22.0	1233	1.83	3.5	60	77
4×16	0.7	1.0	1.6	1.8	24.5	1550	1.15	3.5	83	105
4×25	0.9	1.0	1.6	1.8	29.2	2036	0.727	3.5	105	125
4×35	0.9	1.0	2.0	1.9	32.5	2501	0.524	3.5	125	155
4×50	1.0	1.0	2.0	2.0	33.0	3064	0.387	3.5	160	185
4×70	1.1	1.0	2.0	2.1	37.0	3974	0.268	3.5	200	225
4×95	1.1	1.2	2.0	2.3	43.0	5032	0.193	3.5	245	270
4×120	1.2	1.2	2.5	2.4	45.0	6327	0.153	3.5	285	310
4×150	1.4	1.4	2.5	2.5	51.0	7765	0.124	3.5	325	345
4×185	1.6	1.4	2.5	2.7	56.0	9205	0.0991	3.5	375	390
4×240	1.7	1.4	2.5	3.0	62.0	11444	0.0754	3.5	440	450
4×300	1.8	1.6	2.5	3.2	67.0	13830	0.0601	3.5	505	515
4×400	2.0	1.6	3.15	3.5	74.0	19673	0.0470	3.5	570	575
5×4	0.7	1.0	1.25	1.8	20.0	783	4.61	3.5	34	45
5×6	0.7	1.0	1.25	1.8	22.4	946	3.08	3.5	43	57
5×10	0.7	1.0	1.6	1.8	25.8	1398	1.83	3.5	60	77
5×16	0.7	1.0	1.6	1.8	29.0	1784	1.15	3.5	83	105
5×25	0.9	1.0	1.6	1.8	34.2	2378	0.727	3.5	105	125
5×35	0.9	1.0	1.6	1.9	37.8	3237	0.524	3.5	125	155
5×50	1.0	1.2	2.0	2.1	43.2	3994	0.387	3.5	160	185
5×70	1.1	1.2	2.0	2.3	49.0	5514	0.268	3.5	200	225
5×95	1.1	1.4	2.5	2.5	55.0	6816	0.193	3.5	245	270
5×120	1.2	1.4	2.5	2.6	61.0	8174	0.153	3.5	285	310
5×150	1.4	1.4	2.5	2.8	67.8	9859	0.124	3.5	325	345
5×185	1.6	1.6	2.5	3.0	74.3	11805	0.0991	3.5	375	390
5×240	1.7	1.6	3.2	3.3	83.0	15706	0.0754	3.5	440	450
3×4+1×2.5	0.7	1.0	0.9	1.8	18.7	624	4.61	3.5	34	45
3×6+1×4	0.7	1.0	0.9	1.8	20.0	752	3.08	3.5	43	57
3×10+1×6	0.7	1.0	1.25	1.8	23.3	1154	1.83	3.5	60	77
3×16+1×10	0.7	1.0	1.25	1.8	25.8	1456	1.15	3.5	83	105
3×25+1×16	0.9	1.0	1.6	1.8	30.0	1905	0.727	3.5	105	125
3×35+1×16	0.9	1.0	1.6	1.8	33.0	2259	0.524	3.5	125	155
3×50+1×25	1.0	1.0	1.6	1.9	35.5	2705	0.387	3.5	160	185
3×70+1×35	1.1	1.2	2.0	2.0	41.0	3729	0.268	3.5	200	225
3×95+1×50	1.1	1.2	2.0	2.1	46.0	4732	0.193	3.5	245	270
3×120+1×70	1.2	1.4	2.0	2.3	51.0	6071	0.153	3.5	285	310
3×150+1×70	1.4	1.4	2.5	2.4	56.5	7198	0.124	3.5	325	345
3×185+1×95	1.6	1.4	2.5	2.6	62.0	8558	0.0991	3.5	375	390
3×240+1×120	1.7	1.6	2.5	2.8	68.0	10580	0.0754	3.5	440	450
3×300+1×150	1.8	1.6	2.5	3.0	75.0	12742	0.0601	3.5	505	515
3×4+2×2.5	0.7	1.0	0.9	3.2	18.7	735	4.61	3.5	34	45
3×6+2×4	0.7	1.0	1.25	1.8	21.0	879	3.08	3.5	43	57
3×10+2×6	0.7	1.0	1.25	1.8	24.2	1263	1.83	3.5	60	77
3×16+2×10	0.7	1.0	1.6	1.8	27.5	1616	1.15	3.5	83	105
3×25+2×16	0.9	1.0	1.6	1.8	32.5	2142	0.727	3.5	105	125
3×35+2×16	0.9	1.0	1.6	1.8	35.5	2492	0.524	3.5	125	155
3×50+2×25	1.0	1.0	2.0	1.9	40.0	3408	0.387	3.5	160	185
3×70+2×35	1.1	1.0	2.0	2.2	45.6	4338	0.268	3.5	200	225
3×95+2×50	1.1	1.2	2.0	2.4	50.0	5374	0.193	3.5	245	270
3×120+2×70	1.2	1.2	2.5	2.6	56.9	7145	0.153	3.5	285	310
3×150+2×70	1.4	1.4	2.5	2.7	62.4	8076	0.124	3.5	325	345
3×185+2×95	1.6	1.4	2.5	3.0	67.6	9779	0.0991	3.5	375	390
3×240+2×120	1.7	1.4	2.5	3.2	73.8	12024	0.0754	3.5	440	450
3×300+2×150	1.8	1.6	3.15	3.4	83.0	14366	0.0601	3.5	505	515
4×4+1×2.5	0.7	1.0	0.9	1.8	20.0	752	4.61	3.5	34	45
4×6+1×4	0.7	1.0	1.25	1.8	21.5	913	3.08	3.5	43	57
4×10+1×6	0.7	1.0	1.25	1.8	25.0	1323	1.83	3.5	60	77
4×16+1×10	0.7	1.0	1.6	1.8	28.6	1691	1.15	3.5	83	105
4×25+1×16	0.9	1.0	1.6	1.8	33.5	2256	0.727	3.5	105	125
4×35+1×16	0.9	1.0	1.6	1.9	36.0	2957	0.524	3.5	125	155
4×50+1×25	1.0	1.0	2.0	2.2	42.0	3643	0.387	3.5	160	185
4×70+1×35	1.1	1.2	2.0	2.4	47.0	4614	0.268	3.5	200	225
4×95+1×50	1.1	1.2	2.0	2.6	51.2	6140	0.193	3.5	245	270
4×120+1×70	1.2	1.4	2.5	2.8	59.0	7544	0.153	3.5	285	310
4×150+1×70	1.4	1.4	2.5	3.0	64.0	8733	0.124	3.5	325	345
4×185+1×95	1.6	1.4	2.5	3.1	71.0	10597	0.0991	3.5	375	390
4×240+1×120	1.7	1.6	2.5	3.3	78.0	13029	0.0754	3.5	440	450
4×300+1×150	1.8	1.6	3.15	3.5	88.0	17172	0.0601	3.5	505	515

Source: Shenghua selection sheet (pp. 24, 25, 26)

International description

Low Voltage XLPE Insulated Steel Tape Armoured Single-core Power Cable

Stainless steel tape armoured 0.6/1 kV

Construction: CU/XLPE/PVC/STA/PVC also supplied as CU/XLPE/PVC/STA/FR-PVC
Designation: YJV 0.6/1 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV armoured form YJV22 as written on the selection sheet: YJV 0.6/1 kV
Europe BS 5467 / IEC 60502-1: BS 5467 also designated N2XBYUK designation for thermosetting-insulated armoured cable; applies to the armoured builds of this series only.
Russia / CIS ГОСТ 31996-2012: ПвБШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Inner covering: PVC
Armouring: Stainless steel tape
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332
China (GB · JB · MT) GB/T 12706.1-2008

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 13 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Steel tape thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×25	0.9	1.0	2×0.2	1.8	14.0	442	0.727	3.5	120	155
1×35	0.9	1.0	2×0.2	1.8	15.0	547	0.524	3.5	150	185
1×50	1.0	1.0	2×0.2	1.8	17.0	688	0.387	3.5	180	220
1×70	1.1	1.0	2×0.2	1.8	18.0	895	0.268	3.5	230	270
1×95	1.1	1.0	2×0.2	1.8	20.0	1125	0.193	3.5	285	320
1×120	1.2	1.0	2×0.2	1.8	22.0	1358	0.153	3.5	335	365
1×150	1.4	1.0	2×0.2	1.8	23.0	1649	0.124	3.5	385	410
1×185	1.6	1.0	2×0.5	1.8	25.0	1984	0.0991	3.5	450	465
1×240	1.7	1.0	2×0.5	1.8	28.0	2489	0.0754	3.5	535	540
1×300	1.8	1.0	2×0.5	1.9	30.0	3036	0.0601	3.5	620	610
1×400	2.0	1.2	2×0.2	2.1	35.0	4230	0.0470	3.5	720	695
1×500	2.2	1.2	2×0.2	2.2	39.0	5194	0.0366	3.5	835	780
1×630	2.4	1.2	2×0.2	2.4	45.0	6504	0.0283	3.5	960	880

Source: Shenghua selection sheet

International description

Low Voltage XLPE Insulated Steel Tape Armoured Multi-core Power Cable

Galvanized steel tape armoured 0.6/1 kV

Construction: CU/XLPE/PVC/STA/PVC also supplied as CU/XLPE/PVC/STA/FR-PVC
Designation: YJV 0.6/1 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YJV armoured form YJV22 as written on the selection sheet: YJV 0.6/1 kV
Europe BS 5467 / IEC 60502-1: BS 5467 also designated N2XBYUK designation for thermosetting-insulated armoured cable; applies to the armoured builds of this series only.
Russia / CIS ГОСТ 31996-2012: ПвБШв

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Inner covering: PVC
Armouring: Galvanized steel tape
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Application Applied in shafts, in water and in soil; able to bear greater positive pressure.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332
China (GB · JB · MT) GB/T 12706.1-2008

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 100 sizes × 11 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Inner covering thickness (mm)	Steel tape thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
2×4	0.7	1.2	2×0.2	1.8	15.0	433	4.61	3.5	34	45
2×6	0.7	1.2	2×0.2	1.8	16.0	500	3.08	3.5	43	57
2×10	0.7	1.4	2×0.2	1.8	19.0	673	1.83	3.5	60	77
2×16	0.7	1.4	2×0.2	1.8	21.0	857	1.15	3.5	83	105
2×25	0.9	1.6	2×0.2	1.8	24.0	1173	0.727	3.5	105	125
2×35	0.9	1.6	2×0.2	1.8	26.0	1449	0.524	3.5	125	155
2×50	1.0	1.8	2×0.2	1.8	25.0	1877	0.387	3.5	160	185
2×70	1.1	1.8	2×0.2	1.8	27.0	2454	0.268	3.5	200	225
2×95	1.1	2.0	2×0.2	1.9	30.0	2483	0.193	3.5	245	270
2×120	1.2	2.0	2×0.2	2.0	33.0	4213	0.153	3.5	285	310
2×150	1.4	2.0	2×0.5	2.2	38.0	5087	0.124	3.5	325	345
3×1.5	0.7	1.0	2×0.2	1.5	13.0	273	12.1	3.5	20	27
3×2.5	0.7	1.0	2×0.2	1.5	14.0	321	7.41	3.5	26	35
3×4	0.7	1.2	2×0.2	1.5	15.0	390	4.61	3.5	34	45
3×6	0.7	1.2	2×0.2	1.5	16.0	471	3.08	3.5	43	57
3×10	0.7	1.4	2×0.2	1.5	18.0	622	1.83	3.5	60	77
3×16	0.7	1.4	2×0.2	2.0	22.0	1005	1.15	3.5	83	105
3×25	0.9	1.6	2×0.2	2.0	25.0	1371	0.727	3.5	105	125
3×35	0.9	1.6	2×0.2	2.0	27.0	1724	0.524	3.5	125	155
3×50	1.0	1.8	2×0.2	2.0	30.0	2247	0.387	3.5	160	185
3×70	1.1	1.8	2×0.2	2.5	35.0	3023	0.268	3.5	200	225
3×95	1.1	2.0	2×0.5	2.5	39.0	3825	0.193	3.5	245	270
3×120	1.2	2.0	2×0.5	2.5	42.0	4642	0.153	3.5	285	310
3×150	1.4	2.0	2×0.5	3.0	48.0	5767	0.124	3.5	325	345
3×185	1.6	2.2	2×0.5	3.0	51.0	6895	0.0991	3.5	375	390
3×240	1.7	2.2	2×0.5	3.0	56.0	8617	0.0754	3.5	440	450
3×300	1.8	2.2	2×0.5	3.0	59.0	10928	0.0601	3.5	505	515
3×400	2.0	2.2	2×0.5	3.2	61.0	13556	0.0470	3.5	570	575
4×4	0.7	1.0	2×0.2	1.5	16.0	454	4.61	3.5	34	45
4×6	0.7	1.0	2×0.2	1.5	17.0	557	3.08	3.5	43	57
4×10	0.7	1.0	2×0.2	2.0	20.0	791	1.83	3.5	60	77
4×16	0.7	1.0	2×0.2	2.0	23.0	1210	1.15	3.5	83	105
4×25	0.9	1.0	2×0.2	2.0	27.0	1672	0.727	3.5	105	125
4×35	0.9	1.0	2×0.2	2.0	29.0	2127	0.524	3.5	125	155
4×50	1.0	1.0	2×0.2	2.0	33.0	2802	0.387	3.5	160	185
4×70	1.1	1.2	2×0.2	2.5	38.0	3785	0.268	3.5	200	225
4×95	1.1	1.2	2×0.5	2.5	42.0	4829	0.193	3.5	245	270
4×120	1.2	1.4	2×0.5	3.0	47.0	6033	0.153	3.5	285	310
4×150	1.4	1.4	2×0.5	3.0	52.0	7356	0.124	3.5	325	345
4×185	1.6	1.6	2×0.5	3.0	56.0	8808	0.0991	3.5	375	390
4×240	1.7	1.6	2×0.5	3.0	62.0	11182	0.0754	3.5	440	450
4×300	1.8	1.7	2×0.5	3.1	64.0	14176	0.0601	3.5	505	515
4×400	2.0	1.7	2×0.5	3.5	69.0	17815	0.0470	3.5	570	575
5×4	0.7	1.0	2×0.2	1.5	18.1	588	4.61	3.5	34	45
5×6	0.7	1.0	2×0.2	1.5	19.4	720	3.08	3.5	43	57
5×10	0.7	1.0	2×0.2	2.0	22.9	1014	1.83	3.5	60	77
5×16	0.7	1.0	2×0.2	2.0	25.8	1392	1.15	3.5	83	105
5×25	0.9	1.0	2×0.2	2.0	30.5	2002	0.727	3.5	105	125
5×35	0.9	1.0	2×0.2	2.0	33.7	2581	0.524	3.5	125	155
5×50	1.0	1.0	2×0.5	2.0	38.6	3722	0.387	3.5	160	185
5×70	1.1	1.2	2×0.5	2.5	43.4	4897	0.268	3.5	200	225
5×95	1.1	1.2	2×0.5	2.5	48.6	6338	0.193	3.5	245	270
5×120	1.2	1.4	2×0.5	3.0	54.4	7851	0.153	3.5	285	310
5×150	1.4	1.4	2×0.5	3.0	60.1	9661	0.124	3.5	325	345
5×185	1.6	1.6	2×0.5	3.0	66.7	11770	0.0991	3.5	375	390
5×240	1.7	1.6	2×0.5	3.0	74.7	14900	0.0754	3.5	440	450
5×300	1.8	1.7	2×0.5	3.1	83.2	18000	0.0601	3.5	505	515
3×4+1×2.5	0.7	1.0	2×0.2	1.5	16.0	443	4.61	3.5	34	45
3×6+1×4	0.7	1.0	2×0.2	1.5	17.0	531	3.08	3.5	43	57
3×10+1×6	0.7	1.0	2×0.2	2.0	20.0	741	1.83	3.5	60	77
3×16+1×10	0.7	1.0	2×0.2	2.0	23.0	1135	1.15	3.5	83	105
3×25+1×16	0.9	1.0	2×0.2	2.0	26.0	1556	0.727	3.5	105	125
3×35+1×16	0.9	1.0	2×0.2	2.0	28.0	1896	0.524	3.5	125	155
3×50+1×25	1.0	1.0	2×0.2	2.0	31.0	2518	0.387	3.5	160	185
3×70+1×35	1.1	1.2	2×0.2	2.5	36.0	3293	0.268	3.5	200	225
3×95+1×50	1.1	1.2	2×0.5	2.5	40.0	4349	0.193	3.5	245	270
3×120+1×70	1.2	1.2	2×0.5	2.5	44.0	5365	0.153	3.5	285	310
3×150+1×70	1.4	1.4	2×0.5	3.0	49.0	6468	0.124	3.5	325	345
3×185+1×95	1.6	1.4	2×0.5	3.0	52.0	7854	0.0991	3.5	375	390
3×240+1×120	1.7	1.6	2×0.5	3.5	68.0	9814	0.0754	3.5	440	450
3×300+1×150	1.8	1.7	2×0.5	3.5	71.0	12781	0.0601	3.5	505	515
3×400+1×240	2.0	1.7	2×0.5	3.5	76.0	16359	0.0470	3.5	570	575
3×4+2×2.5	0.7	1.0	2×0.2	1.5	17.5	855	4.61	3.5	34	45
3×6+2×4	0.7	1.0	2×0.2	1.5	18.9	1009	3.08	3.5	43	57
3×10+2×6	0.7	1.0	2×0.2	2.0	21.6	1461	1.83	3.5	60	77
3×16+2×10	0.7	1.0	2×0.2	2.0	24.6	1877	1.15	3.5	83	105
3×25+2×16	0.9	1.0	2×0.2	2.0	28.7	2583	0.727	3.5	105	125
3×35+2×16	0.9	1.0	2×0.2	2.0	30.7	3001	0.524	3.5	125	155
3×50+2×25	1.0	1.0	2×0.2	2.0	36.2	4392	0.387	3.5	160	185
3×70+2×35	1.1	1.2	2×0.2	2.5	40.3	5519	0.268	3.5	200	225
3×95+2×50	1.1	1.2	2×0.5	2.5	44.9	7543	0.193	3.5	245	270
3×120+2×70	1.2	1.2	2×0.5	2.5	50.3	9203	0.153	3.5	285	310
3×150+2×70	1.4	1.4	2×0.5	3.0	54.0	10485	0.124	3.5	325	345
3×185+2×95	1.6	1.4	2×0.5	3.0	60.2	13945	0.0991	3.5	375	390
3×240+2×120	1.7	1.6	2×0.5	3.5	67.2	15643	0.0754	3.5	440	450
3×300+2×150	1.8	1.7	2×0.5	3.5	75.2	18204	0.0601	3.5	505	515
4×4+1×2.5	0.7	1.0	2×0.2	1.5	18.4	565	4.61	3.5	34	45
4×6+1×4	0.7	1.0	2×0.2	1.5	19.8	692	3.08	3.5	43	57
4×10+1×6	0.7	1.0	2×0.2	2.0	22.8	953	1.83	3.5	60	77
4×16+1×10	0.7	1.0	2×0.2	2.0	25.8	1318	1.15	3.5	83	105
4×25+1×16	0.9	1.0	2×0.2	2.0	30.4	1877	0.727	3.5	105	125
4×35+1×16	0.9	1.0	2×0.2	2.0	34.1	2324	0.524	3.5	125	155
4×50+1×25	1.0	1.0	2×0.2	2.0	38.7	3415	0.387	3.5	160	185
4×70+1×35	1.1	1.2	2×0.5	2.5	44.2	4432	0.268	3.5	200	225
4×95+1×50	1.1	1.2	2×0.5	2.5	49.8	5747	0.193	3.5	245	270
4×120+1×70	1.2	1.2	2×0.5	2.5	55.4	7112	0.153	3.5	285	310
4×150+1×70	1.4	1.4	2×0.5	3.0	60.1	8556	0.124	3.5	325	345
4×185+1×95	1.6	1.4	2×0.5	3.0	66.9	10510	0.0991	3.5	375	390
4×240+1×120	1.7	1.6	2×0.5	3.5	74.8	13232	0.0754	3.5	440	450
4×300+1×150	1.8	1.7	2×0.5	3.5	78.4	16452	0.0601	3.5	505	515

Source: Shenghua selection sheet (pp. 44, 45, 46)

On current ratings. The in-air and in-soil values in the tables above are catalogue figures for the construction listed. The rating available to your circuit depends on how it is installed — installation method, ambient temperature, soil thermal resistivity, burial depth and grouping. Send us your installation conditions and we will rate the cable against them. How we publish data →

Type designations by region

Buyers search for a supplier by the designation their own market uses. The codes listed against each construction above are the designations this family is ordered under in China; each is given for cross-reference only, and is published only where a supporting reference exists. The Russian-market designations below are asked for by name on this family; the structure is confirmed against each enquiry.

Russia / CIS GOST

ВБШВнг(А)-ХЛ 4×185-1 0,66 / 1 кВ
ВВГнг(А)-FRLS 0,66 / 1 кВ
ВВГнг(А)-LS 0,66 / 1 кВ
ВГЭнг(А)-LS 0,66 / 1 кВ
ВГнг(А)-FRLS 0,66 / 1 кВ
ВГнг(А)-LS 0,66 / 1 кВ

Cross-reference to our product families only — these pages state which family a designation is asked for under; they do not claim that our cable is certified to ГОСТ.

Type designations are given for cross-reference, so a specification written to IEC, GB, EN, DIN VDE, BS or GOST finds the right construction. Each designation is defined by the standard named beside it. Construction, standard edition and approval route are confirmed against your specification before an order is placed.

To quote we need

Send what you have of the following — a partial enquiry still lets us start, and we will tell you which answers are missing.

System voltage and earthing arrangement
Conductor cross-section, and whether copper or aluminium is required
Number and arrangement of cores (for example 3+1, 4+1)
Armour required — unarmoured, steel wire, stainless steel tape or aluminium wire
Installation method, ambient temperature and grouping, where a real current rating is needed
The standard you work to, the quantity and the drum lengths

Request a Quote

Need a quotation for Low Voltage Power Cables?

Send the construction, the cross-section and the quantity, and tell us which standard you work to. Our export team replies with a technical and commercial proposal.

Request a Quote Speak to an engineer
