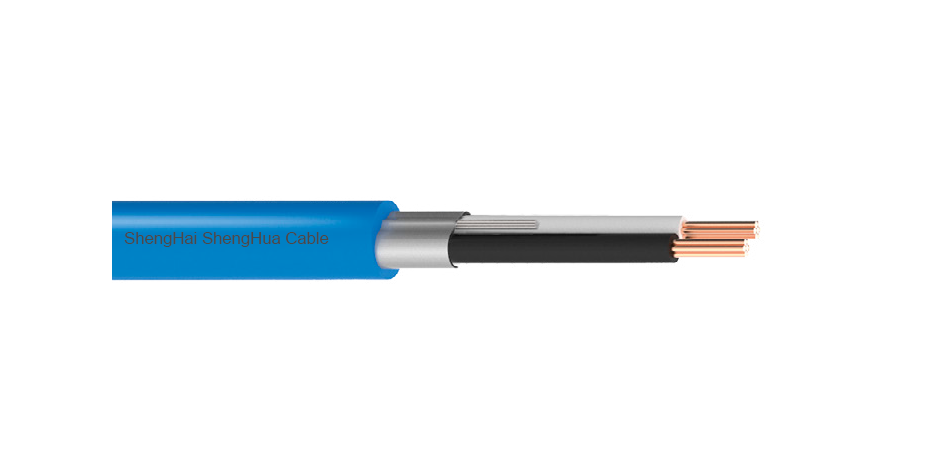

2X(st)Y PVC Cable

APPLICATION

These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Not suitable for direct burial applications.

CHARACTERISTICS

Voltage Rating 300/500V

Operating Temperature

Fixed: -40°C to +80°C

Flexed: 0°C to +50°C

Minimum Bending Radius

6 x overall diameter

CONSTRUCTION

Conductor

0.5mm² - 0.75mm²: Class 5 flexible copper conductor

1mm² and above: Class 2 stranded copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Collective Screen

Al/PET (Aluminium/Polyester Tape)

Drain Wire

Tinned copper

Sheath

PVC (Polyvinyl Chloride) - UV Resistant

STANDARDS

EN 50288-7, EN 50288-1, EN 60228 Flame Retardant according to: IEC/EN 60332-1-2, IEC/EN 60332-3-24 UV Resistant
