2X(st)H SWAH LSZH PiMF Cable

APPLICATION

These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Pairs are individually shielded for enhanced signal security to prevent cross-talk within cable. Suitable for direct burial applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.

CHARACTERISTICS

Voltage Rating 300/500V

Operating Temperature

Fixed: -40°C to +80°C

Flexed: 0°C to +50°C

 Minimum Bending Radius

12 x overall diameter

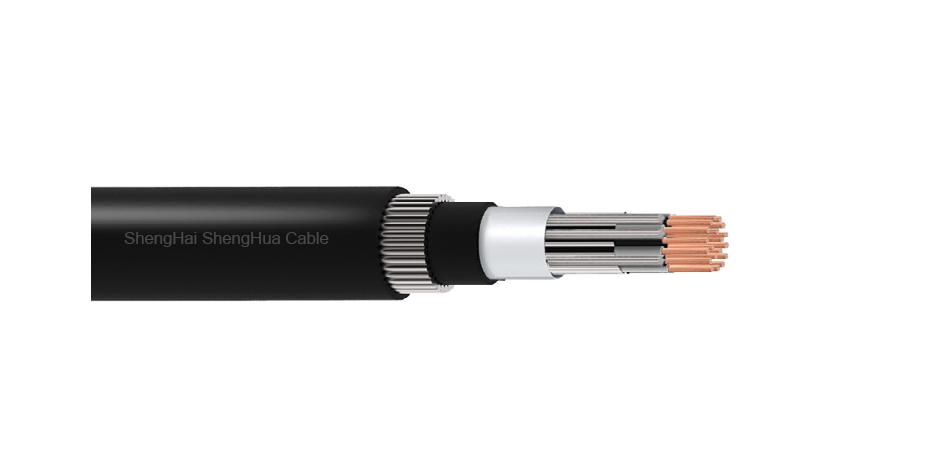

CONSTRUCTION

Conductor

0.5mm² - 0.75mm²: Class 5 flexible Copper

1mm² and above: Class 2 stranded Copper

Insulation

XLPE (Cross-Linked Polyethylene)

Individual and Collective Screen

Al/PET (Aluminium/Polyester Tape)

Drain Wire

Tinned Copper

Inner Sheath

LSZH (Low Smoke Zero Halogen)

Armour

WA (Galvanised steel wires)

Outer Sheath

LSZH (Low Smoke Zero Halogen) - UV Resistant

STANDARDS

EN 50288-7, EN 50288-1, EN 60228 Flame Retardant to: IEC/EN 60332-1-2, IEC/EN 60332-3-24 Low Smoke Halogen Free to: IEC/EN 60754-1/2, IEC/EN 61034-2, UV Resistant to UL 1581-1200
