Product Family 08

Mining Cables

Name: Mining Cables
Brand: SH-Cables
SKU: FAMILY-08

Heavy-duty cables for underground and surface mining under mechanical stress.

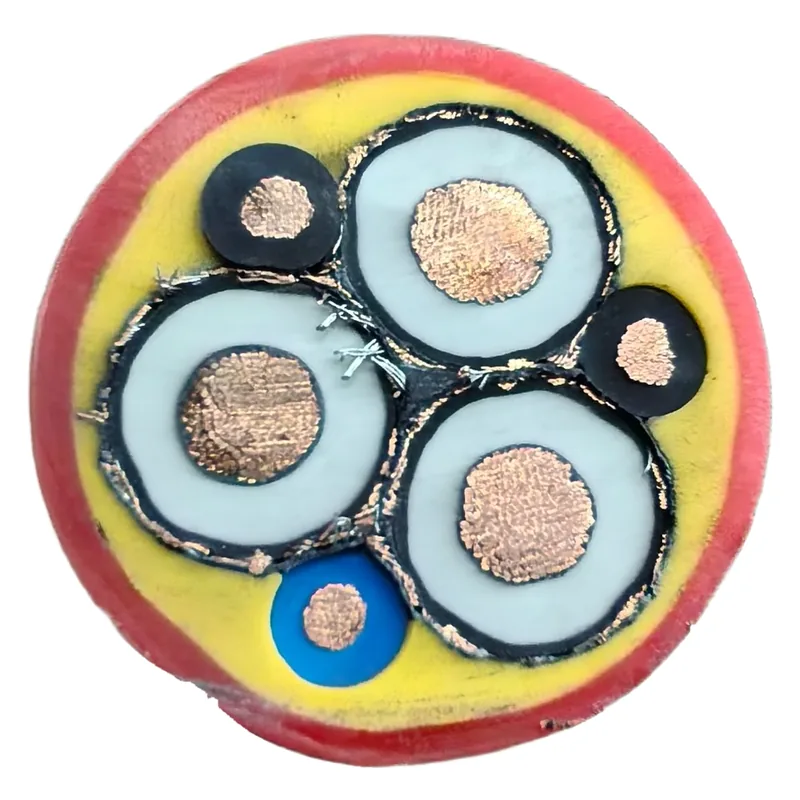

Cut section of a multicore cable — a red outer sheath and a yellow layer around three large cores with stranded copper conductors, plus smaller cores with black jackets and a blue jacket — Mining reel cable, cut to show the finished section. Reel and trailing constructions are built to the machine and the duty cycle — send us the application and we will confirm the build.

Family at a glance

Family code: 08
Rated voltage: 0.3/0.5 kV to 8.7/10 kV depending on construction
Constructions published: 11
Sizes covered: 0.75–185 mm²
Certificates: 3 listed on this page

Scope

Voltage range: 0.3/0.5 kV to 8.7/10 kV depending on construction

This family covers trailing, reel and fixed cables for mining: longwall shearer leads, continuous miner trailing cables, drill cables, shuttle car and pump supply, mobile substation connections, and the general rubber-sheathed flexibles used around plant.

These are flexibles first. Conductor stranding, insulation and sheath compounds carry repeated reeling, being dragged over rock and continuous flexing — a cable with the right electrical rating but the wrong sheath fails mechanically long before it fails electrically.

Certificate coverage is issued per model family. Send the machine and the duty cycle and we will confirm which certificates apply to that build.

Key characteristics

Eleven documented constructions, from the 0.3/0.5 kV drill cable (MZ, MZP) up to the 8.7/10 kV mobile machine and metal-shielded monitoring cables (MYPTJ), alongside the general rubber-sheathed flexibles (YQ, YZ, YC).
EPR insulation under a chloroprene (CR) sheath is standard across the family: it takes the reeling and abrasion duty that a PVC sheath will not.
Metal-shielded designs (MCP, MCPT, MCPTJ, MYPTJ) put a screen over the core assembly to give a defined path for the monitoring core that the protection scheme uses.
Cross-sections from 0.75 mm² to 185 mm² across 2 to 12 cores, and power, control and earth cores are combined in one cable for machine connections.
Covered by mining product safety certificates — see the list on this page.

Size range at a glance

Type designation	Construction	Rated voltage	Cores	Sizes covered	Sizes listed
`MZ-0.3/0.5 / MZP-0.3/0.5`	`CU/EPR/CR`	0.3/0.5 kV	3	2.5–4 mm²	4
`MYQ-0.3/0.5`	`CU/EPR/CR`	0.3/0.5 kV	2, 3, 4, 7, 12	1–2.5 mm²	15
`YQ-300/300 / YZ-300/500 / YC-450/750 V`	`CU/EPR/CR`	300/300 V / 300/500 V / 450/750 V	2, 3, 4, 5	0.75–6 mm²	24
`MY / MYP 0.38/0.66 / 0.66/1.14 kV`	`CU/EPR/CR`	0.38/0.66 kV / 0.66/1.14 kV	3	6–185 mm²	11
`MCDP-0.38/0.66 / MCDP-1.9/3.3`	`CU/EPR/CR`	0.38/0.66 kV or 1.9/3.3 kV	3	16–50 mm²	4
`MC-0.38/0.66 / MC-0.66/1.14 / MC-1.9/3.3`	`CU/EPR/CR`	0.38/0.66 kV / 0.66/1.14 kV / 1.9/3.3 kV	3	16–185 mm²	9
`MCPT-0.66/1.14 / MCPT-1.9/3.3`	`CU/EPR/Metal Shield/CR`	0.66/1.14 kV / 1.9/3.3 kV	3	16–185 mm²	9
`MYPTJ-3.6/6 / MYPTJ-6/10 / MYPTJ-8.7/10`	`CU/EPR/Metal Shield/CR`	3.6/6 kV / 6/10 kV / 8.7/10 kV	3	25–185 mm²	8
`UGEFP-8.7/10 / UGEFHP-8.7/10 / YGHR-6/10 kV`	`CU/EPR/CR`	6/10 kV / 8.7/10 kV	3	35–150 mm²	6
`PVV / PUYV series`	`CU/PVC/PE/PVC`	≤ 300 V	—	identified by model code (e.g. PVV, PVVR, PVV22, PYV)	10
`60245 IEC 81 (YH) / 60245 IEC 82 (YHF)`	`CU/EPR/CR`	≤ 200 V (welding circuit), rated 450 V insulation	—	10–185 mm²	10

Each size counted above carries its own dimensional and electrical figures in the tables further down this page. Intermediate sizes are manufactured to order.

Construction

Each entry is identified three ways: an international description, a construction code naming the material build-up, and a national type designation given for cross-reference only. Read the code string left to right — conductor, insulation, then screening, armour and sheath where fitted.

Product photographs

Photographs of builds from this family. Core count, armouring and sheath follow the specification of each order — the data sheet for your build is issued with the quotation.

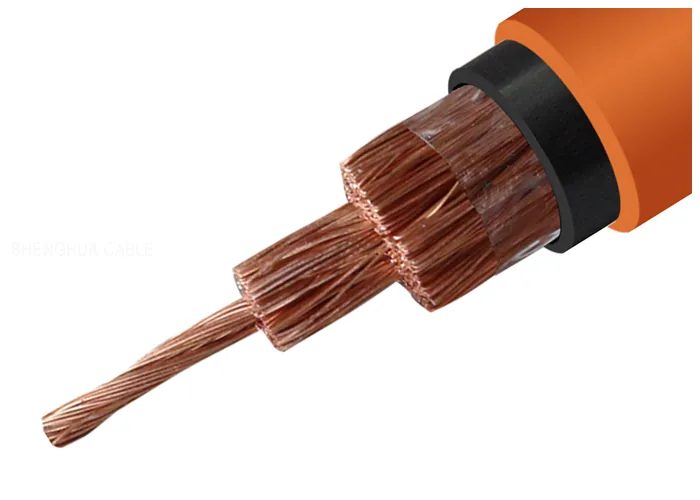

Rubber sheath peeled back to a stranded copper conductor.

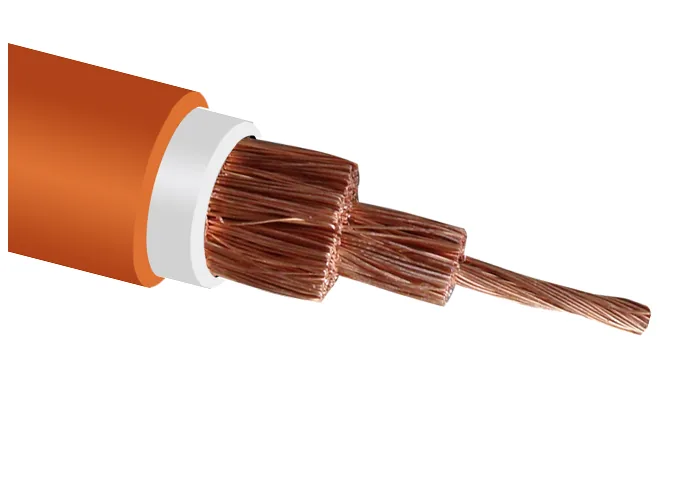

Sheath and wall thickness around the conductor.

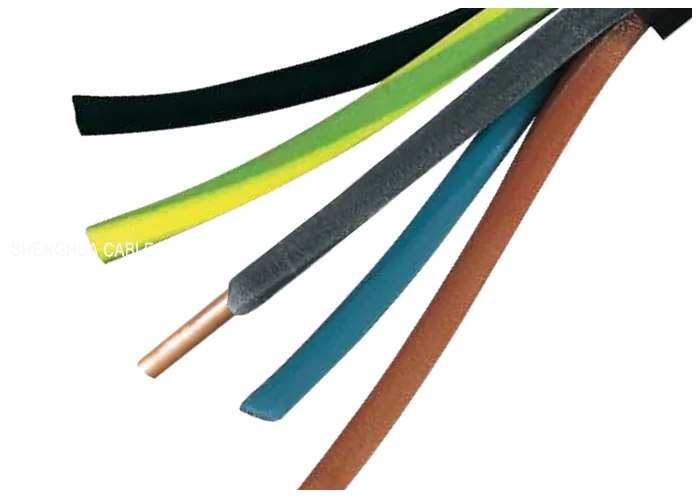

Flexible wires, stripped at the ends — the colour range.

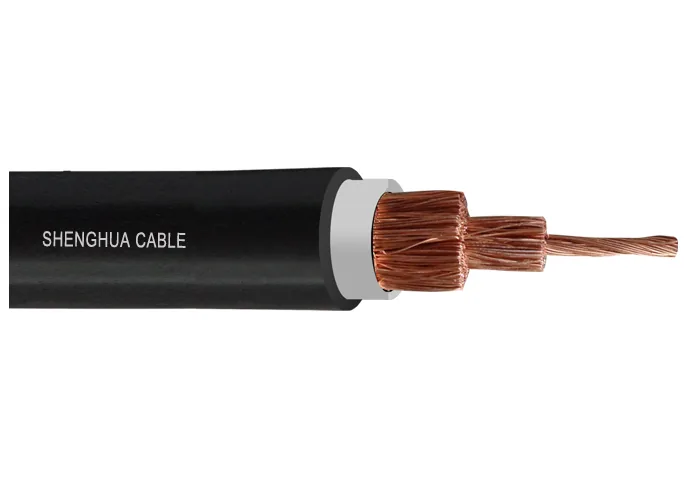

Black sheath cut back to the conductor.

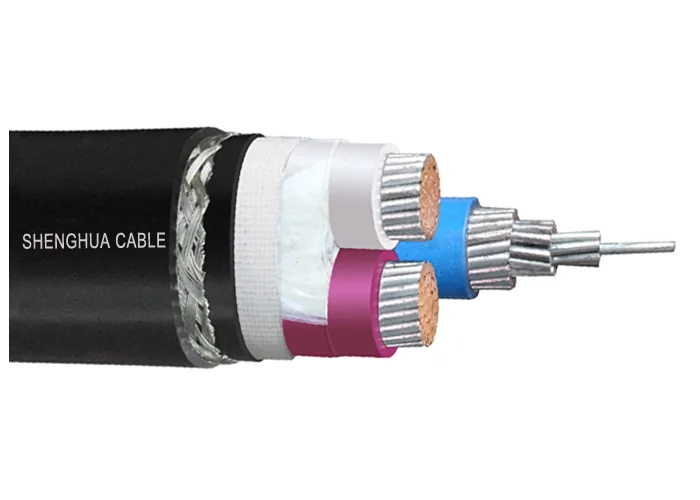

Screened build — braid over the cores.

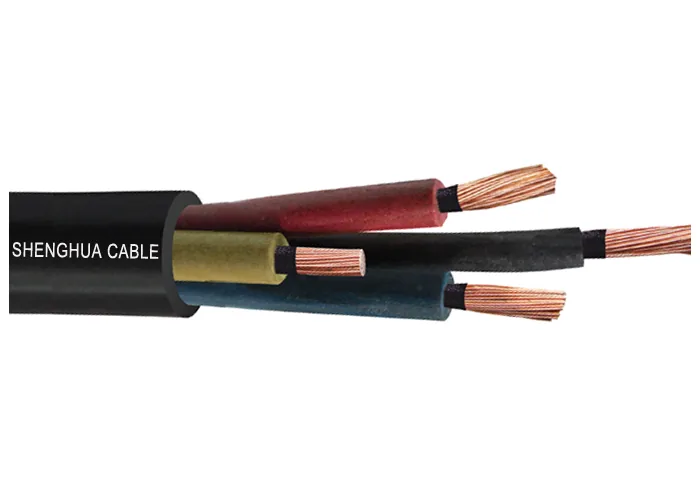

Multi-core build, opened out at the end.

International description

0.3/0.5 kV Mining Drilling Cable (MZ / MZP series)

Unarmoured 0.3/0.5 kV

Construction: CU/EPR/CR also supplied as MZP-0.3/0.5
Designation: MZ-0.3/0.5 / MZP-0.3/0.5 type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: MZ-0.3/0.5 / MZP-0.3/0.5 as written on the selection sheet: MZ-0.3/0.5 / MZP-0.3/0.5
Russia / CIS ТУ 16.К73.05-93: КПГУ

Power cores: Class 5 stranded copper (3 cores 2.5/4 mm²)
Ground core: Class 5 stranded copper (1 core)
Insulation: EPR
Sheath: Chloroprene rubber, black

Application For coal mine drilling machines and similar equipment.

Execution standards

China (GB · JB · MT) MT 818.1-2009

Technical data — 4 sizes × 6 parameters

Power section (mm²)	Ground section (mm²)	Insulation thickness (mm)	Sheath thickness (mm)	O.D. MZ Min (mm)	O.D. MZ Max (mm)
3×2.5	1×2.5	1.0	3.5	16.5	19.5
3×4	1×4	1.0	3.5	17.5	21.0
3×2.5	1×2.5	1.0	3.5	17.5	21.0
3×4	1×4	1.0	3.5	19.0	23.0

Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.

International description

0.3/0.5 kV Mining Light Movable Flexible Cable (MYQ series)

Unarmoured 0.3/0.5 kV

Construction: CU/EPR/CR
Designation: MYQ-0.3/0.5 type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: MYQ-0.3/0.5 as written on the selection sheet: MYQ-0.3/0.5
Russia / CIS ТУ 16.К73.05-93: КПГ

Cores: Class 5 stranded copper (2–12 cores, 1.0–2.5 mm²)
Insulation: EPR
Sheath: Chloroprene rubber, black

Application Light movable flexible cable for coal mine lighting, signal, control circuits.

Execution standards

China (GB · JB · MT) MT 818.1-2009

Technical data — 15 sizes × 5 parameters

Cores × Nominal section (core×mm²)	Insulation thickness (mm)	Sheath thickness (mm)	Approx. O.D. Min (mm)	Approx. O.D. Max (mm)
2×1.0	0.6	1.5	7.5	10.0
2×1.5	0.8	1.5	9.0	11.5
2×2.5	1.0	1.5	10.3	13.5
3×1.0	0.6	1.5	8.4	10.5
3×1.5	0.8	1.5	9.5	12.0
3×2.5	1.0	1.5	11.5	13.5
4×1.0	0.6	1.5	9.0	11.0
4×1.5	0.8	1.5	10.5	13.0
4×2.5	1.0	2.0	13.5	16.5
7×1.0	0.6	1.5	10.5	13.0
7×1.5	0.8	2.0	13.0	16.5
7×2.5	1.0	2.0	15.5	19.0
12×1.0	0.6	2.0	14.0	17.5
12×1.5	0.8	2.5	18.0	21.5
12×2.5	1.0	2.5	21.0	25.5

Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.

International description

General Rubber Sheath Flexible Cable (YQ / YZ / YC)

Unarmoured 300/300 V / 300/500 V / 450/750 V

Construction: CU/EPR/CR also supplied as YQW, YZ (medium), YZW, YC (heavy), YCW
Designation: YQ-300/300 / YZ-300/500 / YC-450/750 V type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: YQ-300/300 / YZ-300/500 / YC-450/750 V as written on the selection sheet: YQ-300/300 / YZ-300/500 / YC-450/750 V
Europe EN 50525-3-31: H07RN-FHarmonised equivalent for the general rubber-sheathed flexible build. Mining grades carry additional requirements under MT 818 and are not covered by this designation.
Russia / CIS ТУ 16.К73.05-93: КПГ

Conductor: Class 5 stranded copper (tinned optional — YQW/YZW/YCW)
Insulation: EPR
Sheath: Chloroprene rubber (CR), black

Application For various portable electrical equipment, tools, motors, lighting circuits. Suitable for indoor/outdoor use where resistance to oil, weather and mechanical abuse is required.

Execution standards

China (GB · JB · MT) GB/T 5013-2008JB/T 8735-2016

Technical data — 24 sizes × 8 parameters

Cores × Nominal section (core×mm²)	Conductor structure (no.×mm)	Avg. O.D. Min (mm)	Avg. O.D. Max (mm)	DC resistance Cu (20 °C) (Ω/km)	DC resistance Tin-coated Cu (20 °C) (Ω/km)	Reference weight YC/YCW (kg/km)	Reference weight YCW (kg/km)
2×0.75	24/0.20	5.7	7.4	26.0	26.7	—	—
2×1	32/0.20	6.1	8.0	19.5	20.0	61.7	69.6
2×1.5	30/0.25	7.6	9.8	13.3	13.7	—	—
2×2.5	49/0.25	9.0	11.6	7.98	8.21	227.1	242.6
2×4	56/0.30	10.6	13.7	4.95	5.09	—	—
2×6	84/0.30	11.8	15.1	3.30	3.39	366.0	394.5
3×0.75	24/0.20	6.2	8.1	26.0	26.7	—	—
3×1	32/0.20	6.5	8.5	19.5	20.0	97.4	105.0
3×1.5	30/0.25	8.0	10.4	13.3	13.7	—	—
3×2.5	49/0.25	9.6	12.4	7.98	8.21	205.1	219.2
3×4	56/0.30	11.3	14.5	4.95	5.09	—	—
3×6	84/0.30	12.6	16.1	3.30	3.39	452.5	497.7
4×0.75	24/0.20	6.8	8.8	26.0	26.7	—	—
4×1	32/0.20	7.1	9.3	19.5	20.0	117.1	125.2
4×1.5	30/0.25	9.0	11.6	13.3	13.7	—	—
4×2.5	49/0.25	10.7	13.8	7.98	8.21	255.2	270.9
4×4	56/0.30	12.7	16.2	4.95	5.09	—	—
4×6	84/0.30	14.0	17.9	3.30	3.39	564.0	594.0
5×0.75	24/0.20	7.6	9.9	26.0	26.7	—	—
5×1	32/0.20	8.0	10.3	19.5	20.0	127.1	136.8
5×1.5	30/0.25	9.8	12.7	13.3	13.7	—	—
5×2.5	49/0.25	11.6	15.0	7.98	8.21	304.3	322.4
5×4	56/0.30	14.1	17.9	4.95	5.09	—	—
5×6	84/0.30	15.7	20.0	3.30	3.39	687.5	724.0

Source: Shenghua cable catalogue (pp. 12, 13) — figures transcribed from the printed catalogue.

International description

0.66/1.14 kV Mining Movable Rubber Sheath Flexible Cable (MY/MYP series)

Unarmoured (MYP series has overall screen) 0.38/0.66 kV / 0.66/1.14 kV

Construction: CU/EPR/CR also supplied as MYP-0.38/0.66, MYP-0.66/1.14
Designation: MY / MYP 0.38/0.66 / 0.66/1.14 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: MY / MYP 0.38/0.66 / 0.66/1.14 kV as written on the selection sheet: MY / MYP 0.38/0.66 / 0.66/1.14 kV
Russia / CIS ТУ 16.К73.05-93: КПГ

Power cores: Class 5 stranded copper (3 cores, 4–185 mm²)
Ground core: Class 5 stranded copper (1 core)
Insulation: EPR
Inner sheath (MYP): chloroprene rubber
Sheath: Chloroprene rubber, black

Application Mining movable rubber-sheathed flexible cables for power connection of mobile equipment.

Execution standards

China (GB · JB · MT) MT 818.1-2009

Technical data — 11 sizes × 7 parameters

Power section (mm²)	Ground section (mm²)	Power insulation thickness (mm)	Ground insulation thickness (mm)	Sheath thickness (mm)	O.D. MY Min (mm)	O.D. MYP-0.66/1.14 (mm)
3×6	1×6	1.4	1.4	3.5	37.5	43.0
3×10	1×10	1.6	1.6	4.0	40.5	46.5
3×16	1×16	1.6	1.6	4.0	44.5	50.5
3×25	1×16	1.8	1.8	4.5	51.0	58.0
3×35	1×16	1.8	1.8	4.5	56.0	63.0
3×50	1×25	2.0	2.0	5.0	62.8	69.5
3×70	1×35	2.0	2.0	5.5	68.0	75.0
3×95	1×50	2.2	2.2	5.5	75.0	81.5
3×120	1×50	2.2	2.2	5.5	78.5	85.0
3×150	1×70	2.4	2.4	6.0	85.0	92.0
3×185	1×95	2.4	2.4	6.0	91.0	98.0

Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.

International description

Coal Mining Machine Low-smoke Low-halogen Flexible Cable

Unarmoured, flexible 0.38/0.66 kV or 1.9/3.3 kV

Construction: CU/EPR/CR also supplied as MCDP-1.9/3.3
Designation: MCDP-0.38/0.66 / MCDP-1.9/3.3 type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: MCDP-0.38/0.66 / MCDP-1.9/3.3 as written on the selection sheet: MCDP-0.38/0.66 / MCDP-1.9/3.3
Russia / CIS ТУ 16.К73.012 (1,14 кВ) / ТУ 16.К73.059-2021 (3,3/6 кВ): КГЭТШ / КГЭТЭШм

Conductor: Class 5 flexible stranded copper (tinned optional)
Insulation: EPR (ethylene propylene rubber) or equivalent
Sheath: Chloroprene rubber (CR) or low-smoke halogen-free compound

Application Power connection for coal mining machines and similar equipment with frequent movement.

Execution standards

Technical data — 4 sizes × 5 parameters

Cores × Nominal section (core×mm²)	Insulation thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Max. DC resistance at 20 °C (Ω/km)
3×16	1.4	4.5	33.0	1.15
3×25	1.6	5.5	39.0	0.727
3×35	1.6	5.5	42.5	0.524
3×50	1.8	5.5	47.5	0.387

Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.

International description

1.9/3.3 kV Coal Mining Machine Flexible Cable (MC series)

Unarmoured, flexible 0.38/0.66 kV / 0.66/1.14 kV / 1.9/3.3 kV

Construction: CU/EPR/CR also supplied as MC-0.66/1.14, MC-1.9/3.3
Designation: MC-0.38/0.66 / MC-0.66/1.14 / MC-1.9/3.3 type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: MC-0.38/0.66 / MC-0.66/1.14 / MC-1.9/3.3 as written on the selection sheet: MC-0.38/0.66 / MC-0.66/1.14 / MC-1.9/3.3
Russia / CIS ТУ 16.К73.05-93: КПГ

Power cores: Class 5 stranded copper (3 cores, 16–185 mm²)
Ground core: Class 5 stranded copper (1 core)
Control cores: Class 5 stranded copper (3 cores 2.5/4 mm²)
Insulation: EPR
Sheath: Chloroprene rubber (CR), black

Application For mining rubber-sheathed flexible cables for coal mining machines and similar equipment.

Execution standards

China (GB · JB · MT) MT 818.1-2009 (coal mining cable, Part 1: mobile flexible cable)

Technical data — 9 sizes × 9 parameters

Power section (mm²)	Ground section (mm²)	Control section (mm²)	Power insulation thickness (mm)	Control insulation thickness (mm)	O.D. MCP-0.66/1.14 Min (mm)	O.D. MCP-0.66/1.14 Max (mm)	O.D. MCP-1.9/3.3 Min (mm)	O.D. MCP-1.9/3.3 Max (mm)
3×16	3×2.5	3×2.5	1.6	4.5	29.5	34.5	33.0	38.0
3×25	1×6	3×2.5	1.8	5.5	36.0	41.0	39.0	45.0
3×35	1×6	3×4	1.8	5.5	39.0	45.0	42.5	49.3
3×50	1×10	3×4	2.0	5.5	44.0	50.5	47.5	54.5
3×70	1×16	3×6	2.0	5.5	50.0	57.5	53.0	60.5
3×95	1×25	3×10	2.2	6.0	56.0	63.5	59.5	67.0
3×120	1×35	3×10	2.4	6.0	60.5	68.5	63.5	72.0
3×150	1×35	3×10	2.4	6.0	65.0	73.0	68.5	76.5
3×185	1×35	3×10	2.6	6.0	71.0	79.0	74.3	82.5

Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.

International description

1.9/3.3 kV Coal Mining Machine Metal-shielded Flexible Cable (MCPT series)

Metal shield (monitoring conductor + braided) 0.66/1.14 kV / 1.9/3.3 kV

Construction: CU/EPR/Metal Shield/CR also supplied as MCPT-1.9/3.3
Designation: MCPT-0.66/1.14 / MCPT-1.9/3.3 type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: MCPT-0.66/1.14 / MCPT-1.9/3.3 as written on the selection sheet: MCPT-0.66/1.14 / MCPT-1.9/3.3
Russia / CIS ТУ 16.К73.012 (1,14 кВ) / ТУ 16.К73.059-2021 (3,3/6 кВ): КГЭТШ / КГЭТЭШм

Power / ground / control cores: Class 5 stranded copper
Insulation: EPR
Metal shield: braided copper wire + monitoring core
Sheath: Chloroprene rubber

Application Coal mining machine power cables with metal shield for monitoring.

Execution standards

China (GB · JB · MT) MT 818.1-2009

Technical data — 9 sizes × 7 parameters

Power section (mm²)	Ground section (mm²)	Control section (mm²)	Power insulation thickness (mm)	Control insulation thickness (mm)	O.D. MCPT-0.66/1.14 (mm)	O.D. MCPT-1.9/3.3 (mm)
3×16	1×4	3×2.5	1.6	5.0	35.8	39.6
3×25	1×10	3×4	1.8	5.5	39.7	42.9
3×35	1×10	3×4	1.8	5.5	43.3	46.3
3×50	1×16	3×6	2.0	5.5	48.5	51.8
3×70	1×25	3×6	2.0	5.5	55.1	58.8
3×95	1×35	3×10	2.2	6.0	62.4	66.1
3×120	1×35	3×10	2.4	6.0	68.0	72.5
3×150	1×70	3×10	2.4	6.0	74.5	79.5
3×185	1×70	3×10	2.6	6.0	80.7	86.1

Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.

International description

8.7/10 kV Coal Mining Movable Metal-shielded Monitoring Flexible Cable (MYPTJ series)

Metal shield + monitoring core 3.6/6 kV / 6/10 kV / 8.7/10 kV

Construction: CU/EPR/Metal Shield/CR also supplied as MYPTJ-6/10, MYPTJ-8.7/10
Designation: MYPTJ-3.6/6 / MYPTJ-6/10 / MYPTJ-8.7/10 type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: MYPTJ-3.6/6 / MYPTJ-6/10 / MYPTJ-8.7/10 as written on the selection sheet: MYPTJ-3.6/6 / MYPTJ-6/10 / MYPTJ-8.7/10
Russia / CIS ТУ 16.К73.02-89: КГЭ

Power / ground / control cores: Class 5 stranded copper
Insulation: EPR
Layer: Metal shield + monitoring braided
Inner + outer sheath: Chloroprene rubber

Application Mining movable high-voltage cables with metal shielding for monitoring.

Execution standards

China (GB · JB · MT) MT 818.1-2009

Technical data — 8 sizes × 8 parameters

Power section (mm²)	Ground section (mm²)	Control section (mm²)	Insulation thickness (mm)	Inner sheath thickness (mm)	Outer sheath thickness (mm)	O.D. MYPTJ-8.7/10 Min (mm)	O.D. MYPTJ-8.7/10 Max (mm)
3×25	3×16	3×2.5	5.5	2.5	5.5	67.0	76.0
3×35	3×16	3×2.5	5.5	3.0	5.5	71.0	80.0
3×50	3×25	3×2.5	5.5	3.0	5.5	75.0	84.5
3×70	3×35	3×2.5	5.5	3.0	5.5	79.0	88.0
3×95	3×50	3×2.5	5.5	3.0	5.5	83.5	93.0
3×120	3×50	3×2.5	5.5	3.0	5.5	86.5	96.5
3×150	3×70	3×2.5	5.5	3.0	5.5	91.0	101.5
3×185	3×70	3×2.5	5.5	3.0	5.5	95.0	105.0

Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.

International description

8.7/10 kV Submersible Pump Motor Flexible Cable (UGEFP / YGHR)

Unarmoured, field-use flexible 6/10 kV / 8.7/10 kV

Construction: CU/EPR/CR also supplied as UGEFHP-8.7/10, YGHR-6/10
Designation: UGEFP-8.7/10 / UGEFHP-8.7/10 / YGHR-6/10 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: UGEFP-8.7/10 / UGEFHP-8.7/10 / YGHR-6/10 kV as written on the selection sheet: UGEFP-8.7/10 / UGEFHP-8.7/10 / YGHR-6/10 kV
Russia / CIS ТУ 16-705.101-79: КШВГТ-10

Power cores: Class 5 stranded copper (3 cores 35–150 mm²)
Ground core: Class 5 stranded copper (3 cores 16–70 mm²)
Insulation: EPR
Sheath: Chloroprene rubber (CR) for UGEFP; high-temperature compound for UGEFHP

Application Power connection for submersible oil pump motors in oil fields. YGHR-6/10 kV is for general high-voltage field equipment.

Execution standards

Technical data — 6 sizes × 8 parameters

Power section (mm²)	Ground section (mm²)	Insulation thickness (mm)	Sheath thickness (mm)	O.D. UGEFP-8.7/10 Min (mm)	O.D. UGEFP-8.7/10 Max (mm)	O.D. YGHR-6/10 Min (mm)	O.D. YGHR-6/10 Max (mm)
3×35	3×16	5.0	6.0	60	68	62	64
3×50	3×25	5.0	6.0	64	72	66	74
3×70	3×35	5.0	6.0	69	77	71	79
3×95	3×50	5.0	6.0	75	84	76	85
3×120	3×50	5.0	6.0	76	85	78	87
3×150	3×70	5.0	6.0	79	89	83	91

Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.

International description

Mining Signal / Communication Cable (PVV / PUYV)

Some types have steel tape armour (PVV22) or braid shield (PUYVRP) ≤ 300 V

Construction: CU/PVC/PE/PVC also supplied as PVVR (PVC ins, flex), PYV (PE ins), PUYV (PE ins, mining, flame-resistant), PUYVR (mining, flex), PUYVRP (mining, braid shield), MHYV (mining telecom)
Designation: PVV / PUYV series type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: PVV / PUYV series as written on the selection sheet: PVV / PUYV series

Conductor: Class 2 stranded copper (Class 5 for flex types)
Insulation: PVC or PE
Sheath: PVC, black
Layer: Optional armour / shield for specific variants

Application Signal transmission and communication circuits for mining and railway signalling.

Execution standards

China (GB · JB · MT) MT 818.14-1999 (Mining Cable & Communication Cable)

Technical data — 10 sizes × 2 parameters

Model	Name
PVV	Copper-core PVC insulated PVC sheathed signal cable
PVVR	Copper core PVC insulated PVC sheathed signal cable
PVV22	Copper-core PVC insulated galvanized steel tape armoured PVC sheathed signal cable
PYV	Copper-core PE insulated PVC sheathed signal cable
PYVR	Copper-core PE insulated PVC sheathed flexible signal cable
PYYV	Copper-core PE insulated PVC sheathed signal cable for railway
PUYV	PE insulated & flame-retardant PVC sheathed signal cable for mining purposes
PUYVR	PE insulated & flame-retardant PVC sheathed, single-layer galvanized steel wire braided, signal cable for mining
PUYVRP	PE flame-retardant PVC sheathed signal cable for mining, copper wire braided & shielded
MHYV	Coal-mine PVC insulated communication cable

Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.

International description

Welding Machine Cable (YH / YHF)

Unarmoured, flexible ≤ 200 V (welding circuit), rated 450 V insulation

Construction: CU/EPR/CR also supplied as YHF (chloroprene rubber sheath)
Designation: 60245 IEC 81 (YH) / 60245 IEC 82 (YHF) type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: 60245 IEC 81 (YH) / 60245 IEC 82 (YHF) as written on the selection sheet: 60245 IEC 81 (YH) / 60245 IEC 82 (YHF)
Russia / CIS ТУ 16.К73.03-88: КОГ-1

Conductor: Class 6 stranded copper (very flexible)
Insulation: EPR or natural rubber
Sheath: Natural rubber (YH) / Chloroprene rubber (YHF)

Application Secondary cable for arc welding machines, with welding current up to 600 A. Suitable for power connection between welding machine and electrode holder.

Execution standards

International (IEC) IEC 60245-1 / 60245-81 / 60245-82
China (GB · JB · MT) GB/T 5013-2008

Technical data — 10 sizes × 7 parameters

Nominal section (mm²)	Conductor structure (no.×mm)	Avg. O.D. Min (mm)	Avg. O.D. Max (mm)	DC resistance at 20 °C (Ω/km)	Reference weight YH (kg/km)	Reference weight YHF (kg/km)
10	322/0.20	7.5	9.7	1.91	146	153.51
16	513/0.20	8.0	11.2	1.21	221	231.16
25	798/0.20	10.2	14.5	0.78	350	367.92
35	1121/0.20	11.4	16.2	0.554	470	492.87
50	1596/0.20	13.2	19.2	0.386	634	665.63
70	2214/0.20	15.3	22.1	0.272	823	864.0
95	2997/0.20	17.1	24.8	0.206	1106	1160.07
120	1702/0.30	19.0	26.0	0.161	1349.25	1392.55
150	2135/0.30	21.0	29.0	0.129	1676.0	1801.6
185	1443/0.40	22.0	29.0	0.106	1909.8	2020.72

Source: Shenghua cable catalogue — figures transcribed from the printed catalogue.

Type designations by region

Buyers search for a supplier by the designation their own market uses. The codes listed against each construction above are the designations this family is ordered under in China; each is given for cross-reference only, and is published only where a supporting reference exists.

Type designations are given for cross-reference, so a specification written to IEC, GB, EN, DIN VDE, BS or GOST finds the right construction. Each designation is defined by the standard named beside it. Construction, standard edition and approval route are confirmed against your specification before an order is placed.

To quote we need

Send what you have of the following — a partial enquiry still lets us start, and we will tell you which answers are missing.

Machine being fed and the duty — trailing, reeling or fixed installation
Rated voltage of the machine
Conductor size, and the number of power, control and earth cores
Whether a metal screen or monitoring core is required
Any sheath requirement beyond the standard construction
The standard you work to, the quantity and the drum lengths

Request a Quote

Need a quotation for Mining Cables?

Send the construction, the cross-section and the quantity, and tell us which standard you work to. Our export team replies with a technical and commercial proposal.

Request a Quote Speak to an engineer
