Product Family 09

Fire Resistant / Flame Retardant Cables

Cables engineered to maintain circuit integrity and limit flame propagation in fire conditions.

Family at a glance

Family code: 09
Rated voltage: Follows the construction it is supplied on — 0.6/1 kV power, 450/750 V building wire, and the medium voltage range
Constructions published: 1
Sizes covered: 1.5–400 mm²
Certificates: 4 listed on this page

Scope

Voltage range: Follows the construction it is supplied on — 0.6/1 kV power, 450/750 V building wire, and the medium voltage range

Two different properties are grouped under this family, and they are not interchangeable. A flame retardant cable does not let a fire travel along it: the test is IEC 60332-3, in which a tray of cables is burned and the distance the flame propagates is measured. A fire resistant cable keeps working while it is being burned — a circuit-integrity property, tested by the international fire-resistance test IEC 60331.

Most projects need the first. Circuits that have to keep functioning during an evacuation — emergency lighting, fire pumps, alarm and public-address systems, lift and smoke-control supplies — need both.

Because both are properties of the sheath and of the barrier layers rather than a product in their own right, they are supplied as variants of the power and wiring families instead of as a separate range. In the data we hold they appear as the FR-PVC and ZR- prefixed versions of the low voltage and medium voltage power cable constructions and as the WDZ- variants of the wiring range, while halogen-free flame-retardant constructions carry the LSZH designations.

To quote we need to know which of the two properties the project calls for, the burn duration required if it is circuit integrity, the number of cores and the cross-section, whether metallic armour or a screen is needed, and the standard the project cites.

Key characteristics

Two properties, two different tests. Flame retardance stops fire travelling along the cable; circuit integrity keeps the circuit working while it is being burned. Ordering one and expecting the other is the commonest mistake in this category.
Supplied as variants of the standard power and wiring constructions rather than as a separate range: FR-PVC and ZR- versions of the power constructions, WDZ- versions of the building wire range, and halogen-free constructions for both.
Evidence is issued per construction. Certificate numbers are listed here with the scope and validity of each, and we attach the applicable one to the quotation.

Size range at a glance

Type designation	Construction	Rated voltage	Cores	Sizes covered	Sizes listed
`WDZAN-YJY 0.6/1 kV`	`CU/MICA/XLPE/LSOH`	0.6/1 kV	1, 2, 3, 4, 5, 3+1, 3+2, 4+1	1.5–400 mm²	119

Each size counted above carries its own dimensional and electrical figures in the tables further down this page. Intermediate sizes are manufactured to order.

Construction

Each entry is identified three ways: an international description, a construction code naming the material build-up, and a national type designation given for cross-reference only. Read the code string left to right — conductor, insulation, then screening, armour and sheath where fitted.

Product photographs

Photographs of builds from this family. Core count, armouring and sheath follow the specification of each order — the data sheet for your build is issued with the quotation.

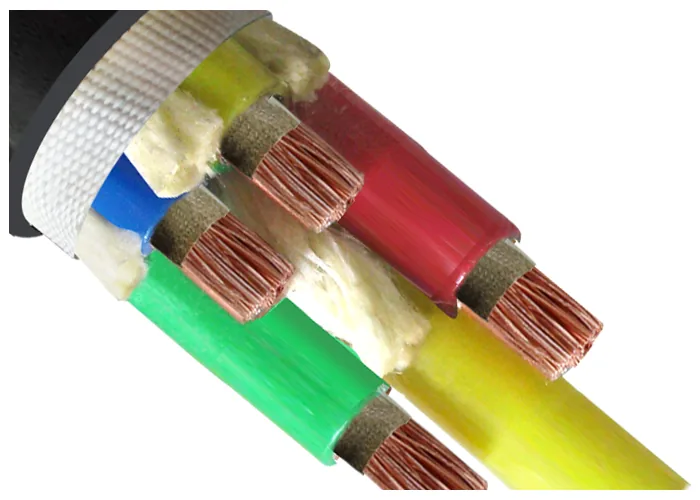

Black sheath opened at the cut, four cores laid out in white filler.

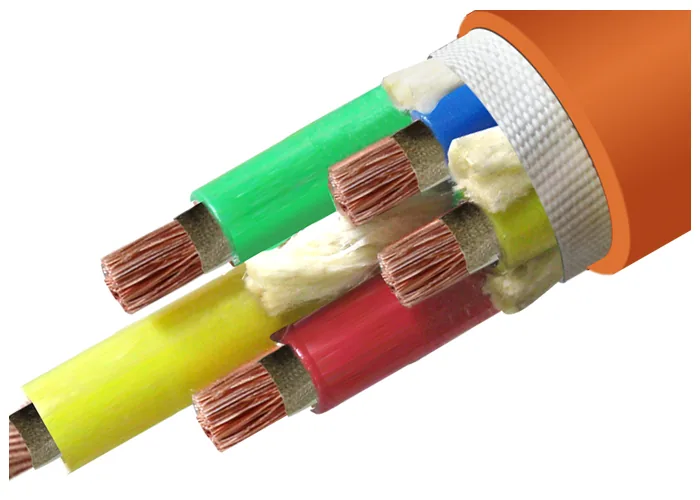

Orange sheath peeled back over the cores and filler.

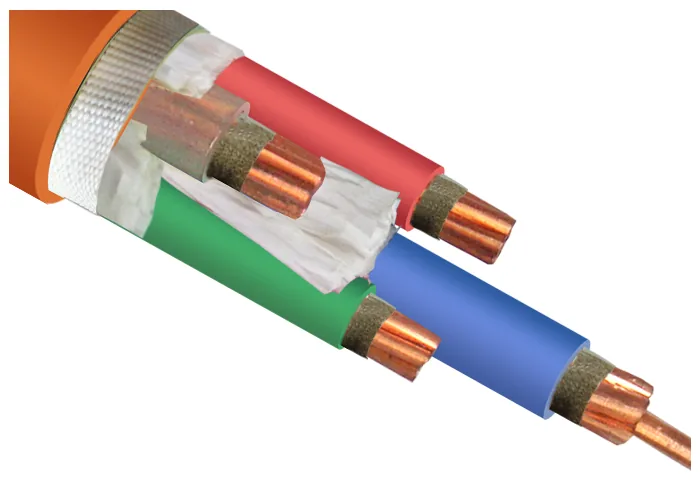

Cut end close up — the wrap over the cores, and the copper under it.

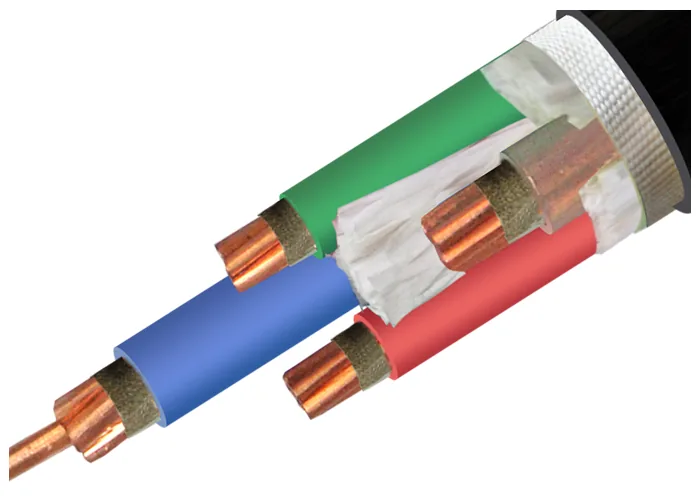

Cores fanned apart over the wrapped bedding.

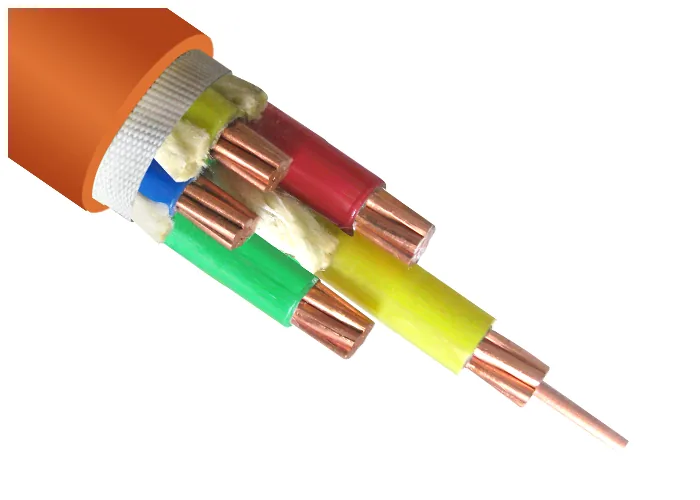

Cores taken down to bare copper at the cut.

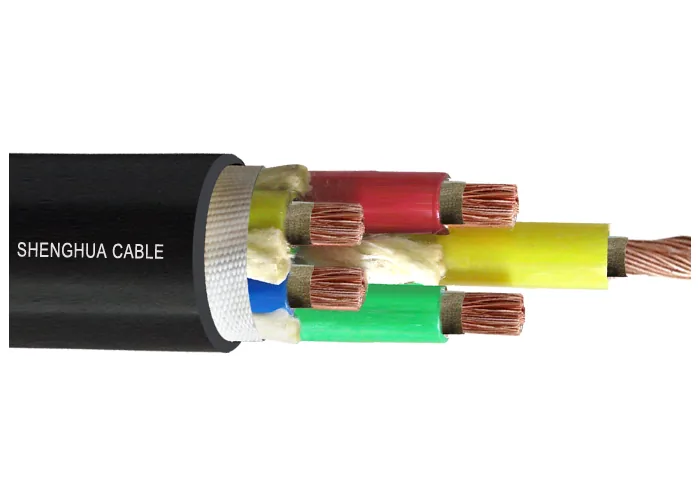

The sheath print, and the cores underneath it.

International description

LSOH Flame Retardant Fire Resistant Cable

Unarmoured 0.6/1 kV

Construction: CU/MICA/XLPE/LSOH
Designation: WDZAN-YJY 0.6/1 kV type code as written on the selection sheet, for cross-reference only

Ordering codes by region: Cross-reference only — see the note below the list.
China GB: WDZAN-YJY as written on the selection sheet: WDZAN-YJY 0.6/1 kV

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Layer: Mica Tape
Insulation: XLPE (cross-linked polyethylene) rated at 90 °C
Layer: Filler
Wrapping Tape: LSOH Bending Tape
Sheath: LSOH, black or other colours, to IEC 60332 and IEC 60502-1

Application For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single-core cables in magnetic ducts is not allowed.

Execution standards

International (IEC) IEC 60502IEC 60228IEC 60332-3 (for FR cable only)
China (GB · JB · MT) GB/T 12706GB/T 18380.3 (for FR cable only)

Other standards such as BS, DIN and ICEA are available upon request.

Technical data — 119 sizes × 9 parameters

Nom. cross-section (mm²)	Insulation thickness (mm)	Sheath thickness (mm)	Approx. O.D. (mm)	Approx. weight (kg/km)	Max. DC resistance at 20 °C (Ω/km)	Test voltage AC (kV/5 min)	Current rating in air (A)	Current rating in soil (A)
1×1.5	0.7	1.8	7.7	81	12.1	3.5	22	33
1×2.5	0.7	1.8	8.1	95	7.41	3.5	31	43
1×4	0.7	1.8	8.5	114	4.61	3.5	41	56
1×6	0.7	1.8	9.1	137	3.08	3.5	52	70
1×10	0.7	1.8	10.3	189	1.83	3.5	71	94
1×16	0.7	1.8	11.4	254	1.15	3.5	92	120
1×25	0.9	1.8	12.9	359	0.727	3.5	120	155
1×35	0.9	1.8	13.9	460	0.524	3.5	150	185
1×50	1.0	1.8	15.5	606	0.387	3.5	180	220
1×70	1.1	1.8	17.5	808	0.268	3.5	230	270
1×95	1.1	1.8	19.3	1047	0.193	3.5	285	320
1×120	1.2	1.8	20.9	1289	0.153	3.5	335	365
1×150	1.4	1.8	22.9	1582	0.124	3.5	385	410
1×185	1.6	1.8	25.2	1927	0.0991	3.5	450	465
1×240	1.7	1.8	27.7	2458	0.0754	3.5	535	540
1×300	1.8	1.9	31.2	3096	0.0601	3.5	620	610
1×400	2.0	2.0	34.8	4064	0.0470	3.5	720	695
2×1.5	0.7	1.8	12.7	172	12.1	3.5	20	27
2×2.5	0.7	1.8	13.5	204	7.41	3.5	26	35
2×4	0.7	1.8	14.6	247	4.61	3.5	34	45
2×6	0.7	1.8	15.5	300	3.08	3.5	43	57
2×10	0.7	1.8	18.1	418	1.83	3.5	60	77
2×16	0.7	1.8	20.2	563	1.15	3.5	83	105
2×25	0.9	1.8	23.2	800	0.727	3.5	105	125
2×35	0.9	1.8	25.2	1026	0.524	3.5	125	155
2×50	1.0	1.8	28.4	1338	0.387	3.5	160	185
2×70	1.1	1.9	32.6	1804	0.268	3.5	200	225
2×95	1.1	2.0	36.4	2343	0.193	3.5	245	270
2×120	1.2	2.1	39.8	2891	0.153	3.5	285	310
2×150	1.4	2.3	44.2	3639	0.124	3.5	325	345
2×185	1.6	2.4	49.0	4458	0.0991	3.5	375	390
2×240	1.7	2.6	54.4	5696	0.0754	3.5	440	450
3×1.5	0.7	1.8	13.4	203	12.1	3.5	20	27
3×2.5	0.7	1.8	14.2	246	7.41	3.5	26	35
3×4	0.7	1.8	15.2	304	4.61	3.5	34	45
3×6	0.7	1.8	16.4	376	3.08	3.5	43	57
3×10	0.7	1.8	19.1	534	1.83	3.5	60	77
3×16	0.7	1.8	21.4	737	1.15	3.5	83	105
3×25	0.9	1.8	24.7	1063	0.727	3.5	105	125
3×35	0.9	1.8	26.9	1380	0.524	3.5	125	155
3×50	1.0	1.9	30.5	1837	0.387	3.5	160	185
3×70	1.1	2.0	35.0	2490	0.268	3.5	200	225
3×95	1.1	2.1	39.1	3325	0.193	3.5	245	270
3×120	1.2	2.3	42.8	4120	0.153	3.5	285	310
3×150	1.4	2.4	47.5	5092	0.124	3.5	325	345
3×185	1.6	2.6	52.9	6245	0.0991	3.5	375	390
3×240	1.7	2.7	58.5	7996	0.0754	3.5	440	450
4×1.5	0.7	1.8	14.4	241	12.1	3.5	20	27
4×2.5	0.7	1.8	15.4	295	7.41	3.5	26	35
4×4	0.7	1.8	16.5	369	4.61	3.5	34	45
4×6	0.7	1.8	17.8	463	3.08	3.5	43	57
4×10	0.7	1.8	20.9	667	1.83	3.5	60	77
4×16	0.7	1.8	23.4	930	1.15	3.5	83	105
4×25	0.9	1.8	27.1	1351	0.727	3.5	105	125
4×35	0.9	1.8	29.5	1772	0.524	3.5	125	155
4×50	1.0	1.9	32.4	2380	0.387	3.5	160	185
4×70	1.1	2.0	38.3	3302	0.268	3.5	200	225
4×95	1.1	2.2	41.9	4330	0.193	3.5	245	270
4×120	1.2	2.3	45.4	5374	0.153	3.5	285	310
4×150	1.4	2.5	50.5	6655	0.124	3.5	325	345
4×185	1.6	2.7	56.8	8246	0.0991	3.5	375	390
4×240	1.7	2.9	62.6	10569	0.0754	3.5	440	450
5×1.5	0.7	1.8	13.6	284	12.1	3.5	20	27
5×2.5	0.7	1.8	16.6	349	7.41	3.5	26	35
5×4	0.7	1.8	17.9	441	4.61	3.5	34	45
5×6	0.7	1.8	19.3	558	3.08	3.5	43	57
5×10	0.7	1.8	22.8	809	1.83	3.5	60	77
5×16	0.7	1.8	25.6	1135	1.15	3.5	83	105
5×25	0.9	1.8	29.7	1664	0.727	3.5	105	125
5×35	0.9	1.9	32.6	2194	0.524	3.5	125	155
5×50	1.0	2.0	37.3	3013	0.387	3.5	160	185
5×70	1.1	2.1	42.9	4101	0.268	3.5	200	225
5×95	1.1	2.2	48.2	5382	0.193	3.5	245	270
5×120	1.2	2.4	52.7	6685	0.153	3.5	285	310
5×150	1.4	2.5	58.5	8363	0.124	3.5	325	345
5×185	1.6	2.7	65.1	10268	0.0991	3.5	375	390
5×240	1.7	3.1	72.3	13167	0.0754	3.5	440	450
3×2.5+1×1.5	0.7	1.8	15.2	254	7.41	3.5	26	35
3×4+1×2.5	0.7	1.8	16.3	352	4.61	3.5	34	45
3×6+1×4	0.7	1.8	17.5	440	3.08	3.5	43	57
3×10+1×6	0.7	1.8	20.1	616	1.83	3.5	60	77
3×16+1×10	0.7	1.8	22.8	865	1.15	3.5	83	105
3×25+1×16	0.7	1.8	26.2	1248	0.727	3.5	105	125
3×35+1×16	0.9	1.8	28.0	1557	0.524	3.5	125	155
3×50+1×25	1.0	1.9	32.0	2120	0.387	3.5	160	185
3×70+1×35	1.1	2.1	36.7	2863	0.268	3.5	200	225
3×95+1×50	1.1	2.2	41.1	3854	0.193	3.5	245	270
3×120+1×70	1.2	2.4	45.6	4857	0.153	3.5	285	310
3×150+1×70	1.4	2.5	49.4	5808	0.124	3.5	325	345
3×185+1×95	1.6	2.7	55.1	7271	0.0991	3.5	375	390
3×240+1×120	1.7	2.9	60.0	9269	0.0754	3.5	440	450
3×2.5+2×1.5	0.7	1.8	18.8	299	7.41	3.5	26	35
3×4+2×2.5	0.7	1.8	20.0	405	4.61	3.5	34	45
3×6+2×4	0.7	1.8	21.5	513	3.08	3.5	43	57
3×10+2×6	0.7	1.8	24.0	708	1.83	3.5	60	77
3×16+2×10	0.7	1.8	27.1	1006	1.15	3.5	83	105
3×25+2×16	0.7	1.8	30.8	1448	0.727	3.5	105	125
3×35+2×16	0.9	1.9	32.6	1760	0.524	3.5	125	155
3×50+2×35	1.0	2.1	37.3	2427	0.387	3.5	160	185
3×70+2×35	1.1	2.2	42.1	3338	0.268	3.5	200	225
3×95+2×50	1.1	2.4	47.8	4426	0.193	3.5	245	270
3×120+2×70	1.2	2.5	52.6	5645	0.153	3.5	285	310
3×150+2×70	1.4	2.7	56.5	6587	0.124	3.5	325	345
3×185+2×95	1.6	2.9	62.9	8225	0.0991	3.5	375	390
3×240+2×120	1.7	3.1	69.3	10453	0.0754	3.5	440	450
4×2.5+1×1.5	0.7	1.8	16.5	313	7.41	3.5	26	35
4×4+1×2.5	0.7	1.8	17.7	424	4.61	3.5	34	45
4×6+1×4	0.7	1.8	19.1	535	3.08	3.5	43	57
4×10+1×6	0.7	1.8	22.1	760	1.83	3.5	60	77
4×16+1×10	0.7	1.8	25.1	1071	1.15	3.5	83	105
4×25+1×16	0.7	1.8	29.0	1556	0.727	3.5	105	125
4×35+1×16	0.9	1.9	31.4	1976	0.524	3.5	125	155
4×50+1×25	1.0	2.1	36.0	2689	0.387	3.5	160	185
4×70+1×35	1.1	2.2	41.1	3719	0.268	3.5	200	225
4×95+1×50	1.1	2.4	46.3	4903	0.193	3.5	245	270
4×120+1×70	1.2	2.5	51.0	6165	0.153	3.5	285	310
4×150+1×70	1.4	2.7	55.8	7431	0.124	3.5	325	345
4×185+1×95	1.6	2.9	62.1	9192	0.0991	3.5	375	390
4×240+1×120	1.7	3.1	68.8	11860	0.0754	3.5	440	450

Source: Shenghua selection sheet (pp. 2, 3, 4)

On current ratings. The in-air and in-soil values in the tables above are catalogue figures for the construction listed. The rating available to your circuit depends on how it is installed — installation method, ambient temperature, soil thermal resistivity, burial depth and grouping. Send us your installation conditions and we will rate the cable against them. How we publish data →

Type designations by region

Buyers search for a supplier by the designation their own market uses. The codes listed against each construction above are the designations this family is ordered under in China; each is given for cross-reference only, and is published only where a supporting reference exists.

Type designations are given for cross-reference, so a specification written to IEC, GB, EN, DIN VDE, BS or GOST finds the right construction. Each designation is defined by the standard named beside it. Construction, standard edition and approval route are confirmed against your specification before an order is placed.

To quote we need

Send what you have of the following — a partial enquiry still lets us start, and we will tell you which answers are missing.

Which property the project calls for: flame retardant, fire resistant, or both
Test standard and class the specification cites, including duration where circuit integrity is required
Base construction — number of cores, cross-section, armour and screen
Whether halogen-free compounds are also required
The standard you work to, the quantity and the drum lengths

Applications

Applicable Standards

IEC 60332
GB 31247-2014

Stated as compliance with the listed standard. Standards bodies do not issue certifications.

Certifications

GOST-R fire safety certification — low voltage · No. РОСС RU.33039.ИЛ05ОС.001723
GOST-R fire safety certification — medium voltage · No. РОСС RU.33039.ИЛ05ОС.001704
CCC flame-retardant PVC insulated wires and cables · Nos. 2026010105882597 / 2026010105882804 / 2026010105882598 · valid 2026-07-22 to 2031-07-21 · covers constructions up to 450/750 V only
Combustion performance labelling authorisation to GB 31247-2014 · issued by the Sichuan Fire Research Institute of the Ministry of Emergency Management, one authorisation per construction · not a general B1 rating for a cable range
