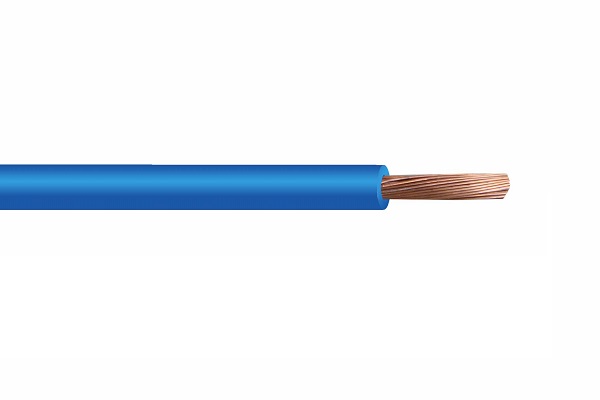

UL 1007 CSA PVC INSULATION WIRE

Applications:

This product is used for internal power and signal devices of electrical and electronic equipment, instruments, machinery, electronic devices, household appliances, or internal connections in buildings that follow the UL series with a rated voltage of 300V. The product has certain heat resistance and can operate at 80°C when exposed to solvents such as oil.

Construction:

Conductor: Single or multiple strands twisted into a bundle of 32-16AWG (tin-coated) bare copper wire

Insulation: Special PVC mixed material core wire insulation.

Characteristic:

Working voltage: 300 V

Insulation resistance: > 10 GOhm x cm

Minimum bending radius: 12 times the outer diameter of the cable

Operating temperature range: Mobile installation: -5°C to +80°C, Fixed installation: -40°C to +80°C

Oil resistance, flame retardancy and smolder resistance: IEC 60332.1 / HD 405.2 and CSA FT1 Resistance to radiation: Maximum 80×106 cJ/kg
