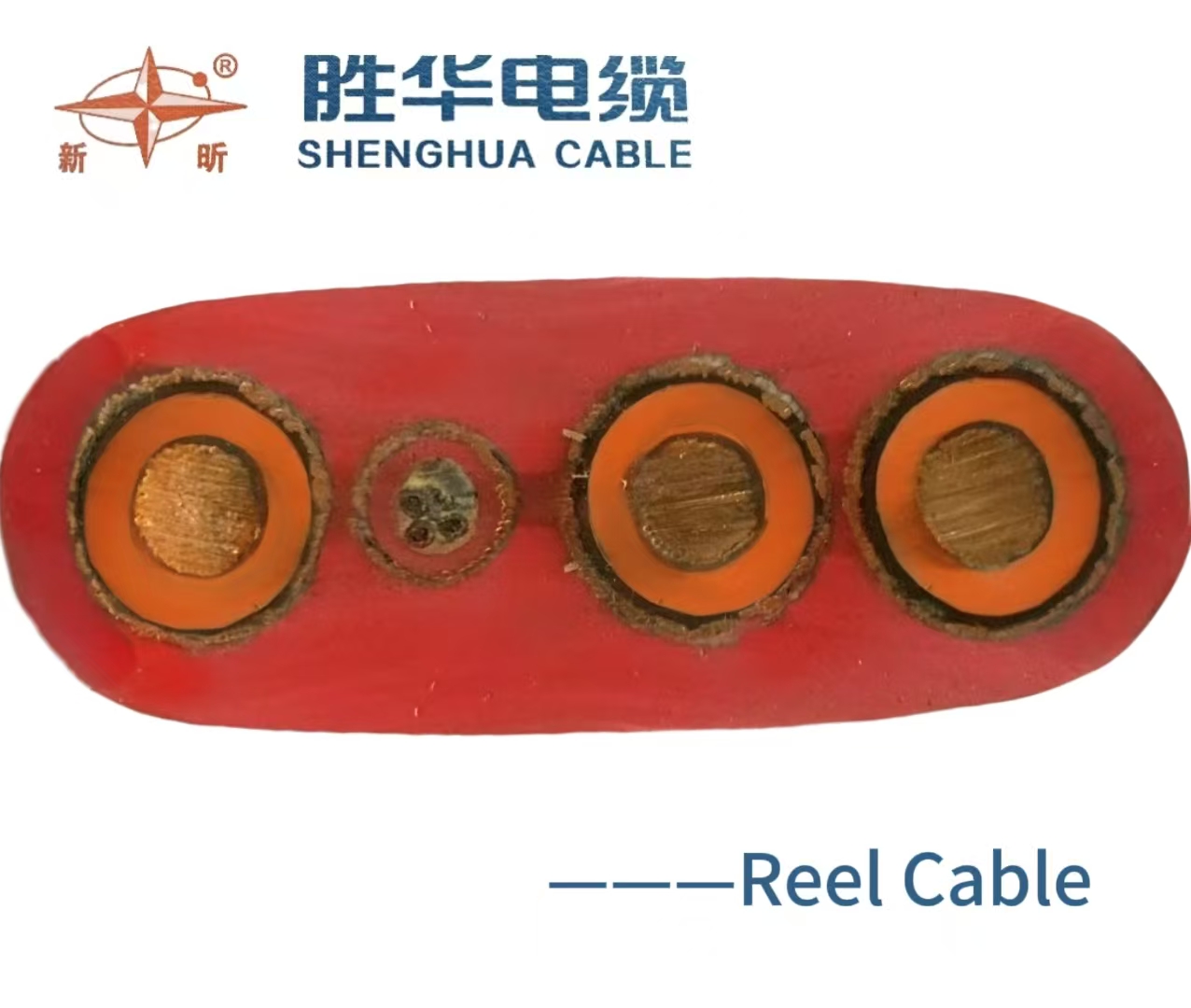

The new-generation high-flexibility torsion-resistant reel cable has been officially launched, pioneering innovation in industrial mobile transmission.

  Recently, Shanghai Shenghua Cable Technology Group Co., Ltd. has launched a new generation of highly flexible and torsion-resistant reel cables. Centered on material innovation, structural redesign, and performance enhancement, these cables effectively address industry challenges faced by traditional reel cables—such as core breakage, sheath cracking, and short service life under high-frequency winding, heavy-duty tensioning, and harsh operating conditions. They provide efficient, safe, and durable mobile transmission solutions for applications in port lifting, mining, metallurgical forging, and intelligent equipment, facilitating the implementation of Industry 4.0 and the development of advanced productive forces.

As the "nerve system" of industrial mobile equipment, drum cables must endure complex mechanical stresses in extreme environments over extended periods, with their reliability directly determining operational efficiency and production safety. The newly released next-generation drum cable leverages the company's decades of expertise in specialized cable development and extensive field test data from thousands of operational scenarios, achieving groundbreaking advancements across three key dimensions and redefining industry performance benchmarks.

I.Cutting-edge technological innovation delivers exceptional durability:

The Shenghua next-generation reel cable focuses on four core requirements: torsional resistance, tensile strength, bending resistance, and weather resistance. It employs Class 6 ultra-fine multi-strand precision-stranded conductors combined with a short-pitch layered cabling process, featuring aramid tensile-resistant central elements and a double-layer braided reinforcement structure. This design enables the cable to withstand continuous repetitive winding and instantaneous high-tension impacts, effectively eliminating conductor core breakage issues.

The outer sheath is constructed from modified PUR polyurethane high-strength material, featuring laser-textured surface treatment that offers exceptional wear resistance, oil resistance, seawater resistance, and acid/alkali resistance. It operates within a temperature range of-40°C to +90°C and demonstrated no significant performance degradation after a 3,000-hour salt spray aging test, making it suitable for various extreme operating conditions worldwide.

In terms of bending performance, the product features a bending radius as low as 6 times its outer diameter, enabling compatibility with compact drum installations and meeting high-speed winding requirements (up to 300 m/min). Certified by authoritative institutions, it withstands 3 million continuous dynamic bends without fracture or wrinkling, offering a service life more than twice that of conventional products and reducing annual downtime for maintenance by approximately 60%, significantly lowering operational and maintenance costs for enterprises.

Meanwhile, the shielding version employs a "double-layer shielding structure comprising aluminum-plastic composite tape longitudinal wrapping and tin-coated copper mesh," achieving a shielding efficiency of over 90 dB. This effectively mitigates high-frequency electromagnetic interference from inverters and servo motors, ensuring synchronous and stable transmission of power and control signals with a bit error rate below 0.001%.

II. Deep adaptation across multiple scenarios, empowering the upgrade of the entire industrial chain:

The Shenghua new-generation reel cable features a modular, customizable design that allows flexible combinations of pure power, power + control,  power + control + fiber optic integrated configurations to meet diverse industrial requirements. It supports personalized customization in core count, cross-sectional area, and voltage levels (low-voltage: 0.6/1 kV; medium-voltage: 6/10 kV), making it widely applicable across key industrial sectors：

Smart Port Equipment: Designed for shore cranes, gantry cranes, tire cranes, and material handling machines, these systems withstand marine wind and salt spray corrosion while meeting the demands of long-span operations and high-frequency handling, enabling efficient smart port operations.

Mining excavation machinery: Specifically designed for electric shovel excavators, roadheaders, and tunnel boring machines, these units are resistant to dust, oil contamination, and severe mechanical impacts, effectively addressing the issue of cable damage in harsh underground conditions.

Metallurgical forging equipment: Designed for high-temperature radiation and frequent handling conditions such as tamping furnace cars and ladle rotary tables, it features core-breaking resistance and high-temperature tolerance to ensure continuous production.

In the field of intelligent automation: Compatible with AGVs (autonomous guided vehicles), robotic arms, and automated conveyor lines; highly flexible to accommodate precise motion trajectories, ensuring efficient operation in industrial automation.

III. Green and Intelligent Dual Drive,Anchoring the Industry's Future Direction：

Shenghua Cable adheres to the R&D philosophy of "green, low-carbon, and intelligent connectivity," the new generation of reel cables not only meet ROHS and REACH environmental certifications—with their low-smoke, halogen-free formulation being non-toxic and harmless in fire scenarios, complying with global environmental standards—but also incorporate intelligent design concepts. The products integrate micro-fiber Bragg grating sensors and RFID chips to collect real-time critical parameters such as operating temperature, tensile force, and bending cycles. Through IoT modules, data is transmitted wirelessly, enabling enterprises to establish predictive maintenance systems that alert them to potential failures early and reduce equipment downtime by over 50%.

Currently, China's industrial sector is accelerating its transition toward intelligent and green development. As fundamental components of the industrial infrastructure, technological innovations in specialized cables are crucial for upgrading the industrial chain.

The new-generation highly flexible and torsion-resistant reel cable recently launched by Shenghua Cable represents not only a significant achievement in the company's deep expertise in the specialty cable sector, but also a crucial step toward breaking foreign monopolies in domestic reel cable technology and achieving domestic substitution of high-end products.

Going forward, the company will continue to increase its R&D investment, focusing on lightweight, integrated, and intelligent solutions. It will consistently launch specialized cable products tailored to industrial development needs, leveraging cutting-edge technologies to empower diverse industries and inject new momentum into China's high-quality industrial growth.
