Control cables

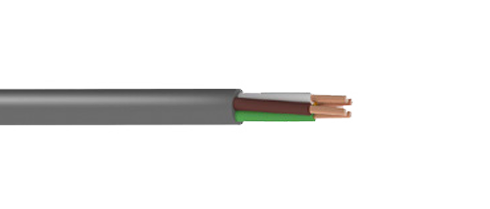

LiHH LSZH Control Cable EAC Certified

Conductor Generally to Class 5 fine-stranded copper conductor
Insulation LSZH (Low Smoke Zero Halogen)
Sheath LSZH (Low Smoke Zero Halogen)
Outer Sheath Colour Grey
Product description: LSZH (Low Smoke Zero Halogen) electronic cables are used for connection and signal transfer in measuring and control equipment. For indoor installation in dry and wet rooms, for installation under pla
INQUIRY EMAIL

Applications:

LSZH (Low Smoke Zero Halogen) electronic cables are used for connection and signal transfer in measuring and control equipment. For indoor installation in dry and wet rooms, for installation under plaster.

Standards:

IEC/EN 60754-1/2, IEC/EN 61034-1/2

Flame Retardant according to IEC/EN 60332-1-2

Technical data:

Voltage Rating

250/250V

Temperature Rating

Fixed: -40°C to +70°C

Flexed: +5°C to +70°C

Minimum Bending Radius

Fixed: 7.5 x overall diameter
