2X(st)H LSZH Cable

APPLICATION

These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Not suitable for direct burial applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment

CHARACTERISTICS

Voltage Rating 300/500V

Operating Temperature

Fixed: -40°C to +80°C

Flexed: 0°C to +50°C

Minimum Bending Radius

6 x overall diameter

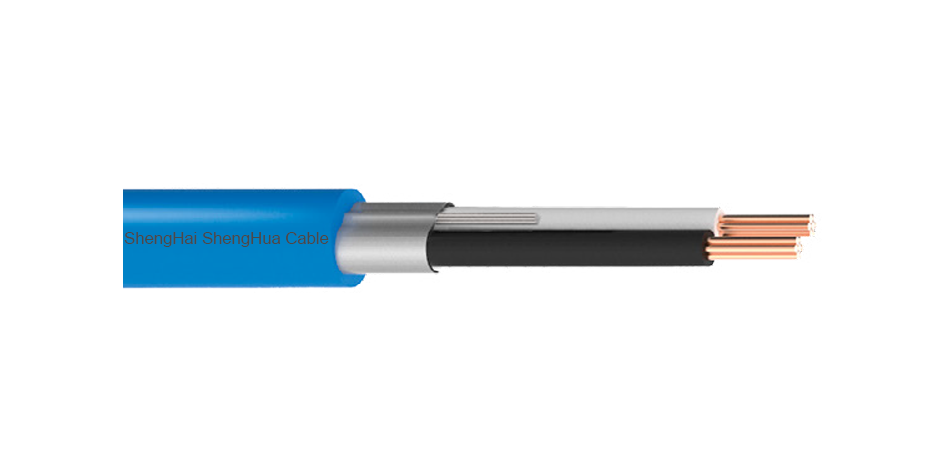

CONSTRUCTION

Conductor

0.5mm² - 0.75mm²: Class 5 flexible Copper

1mm² and above: Class 2 stranded Copper

Insulation

XLPE (Cross-Linked Polyethylene)

Collective Screen

Al/PET (Aluminium/Polyester Tape)

Drain Wire

Tinned copper

Sheath

LSZH (Low Smoke Zero Halogen) - UV Resistant

STANDARDS

EN 50288-7, EN 50288-1, EN 60228, HD383 Flame Retardant to: IEC/EN 60332-1-2, IEC/EN 60332-3-24 Low Smoke Halogen Free to: IEC/EN 60754-1/2, IEC/EN 61034-1/2, UV Resistant to UL 1581-1200
